Product description

Portable Kit Twin Motor Air Compressor ARB CKMTP12 Portable Twin Motor Air Compressor 12V

Voltage: 12 V

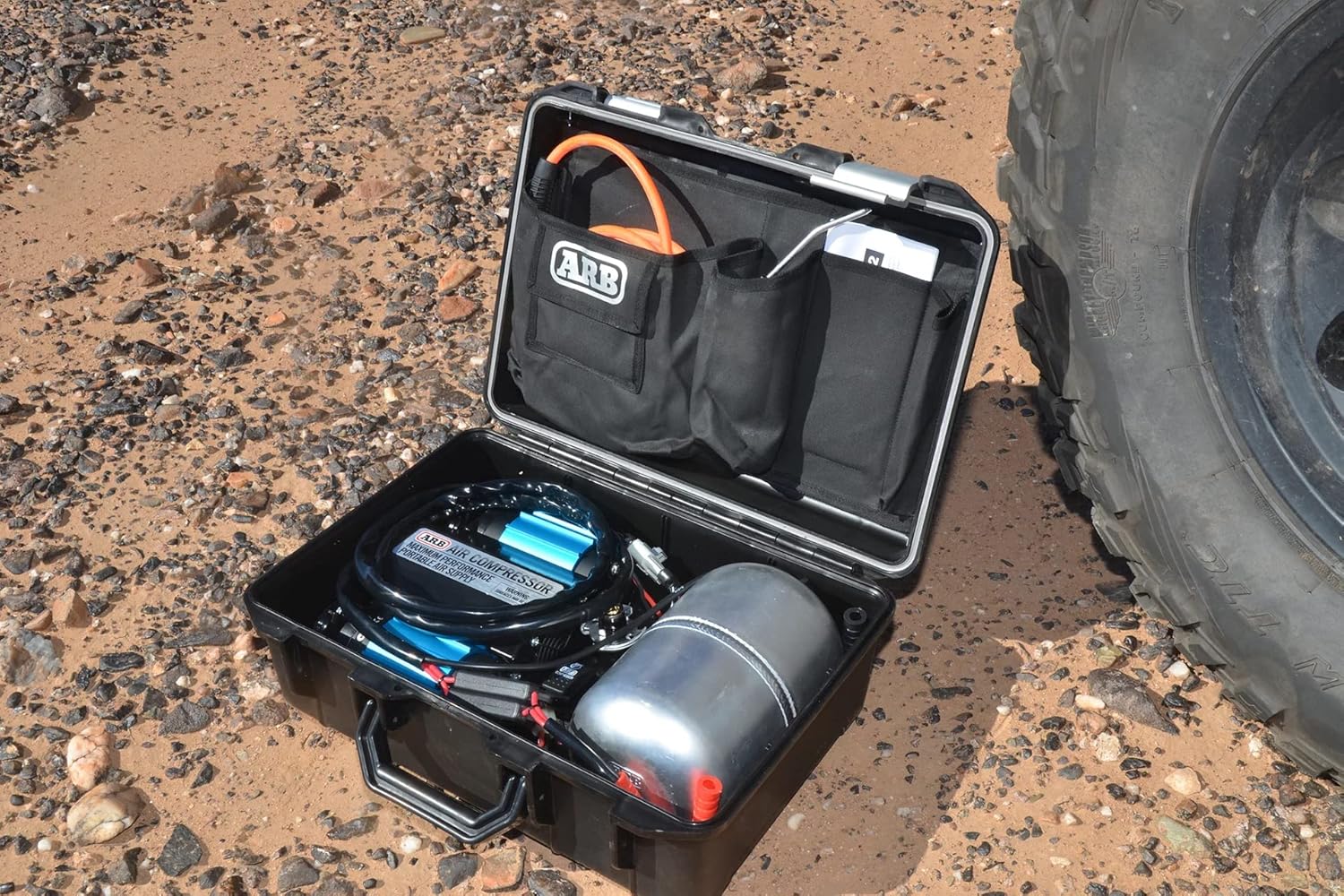

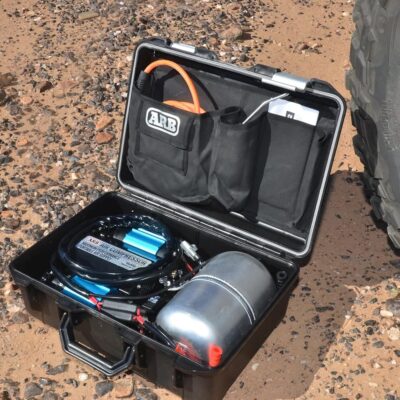

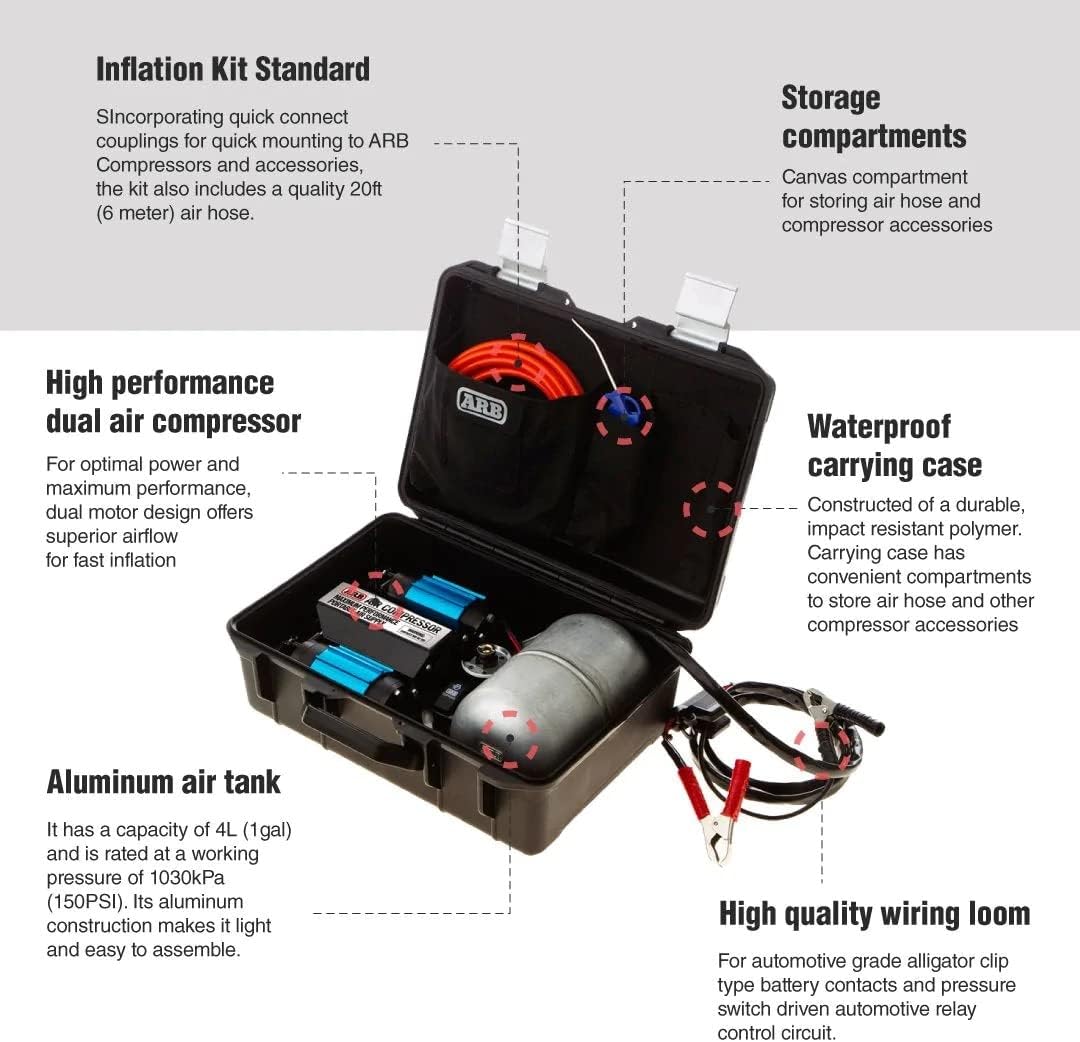

Ideal for: Rapid Inflation of small, medium, large, and over-sized tires / Kit includes: Waterproof case, twin compressor, 4 Liters air tank, canvas organizer, 20 feet air hose and blow gun.

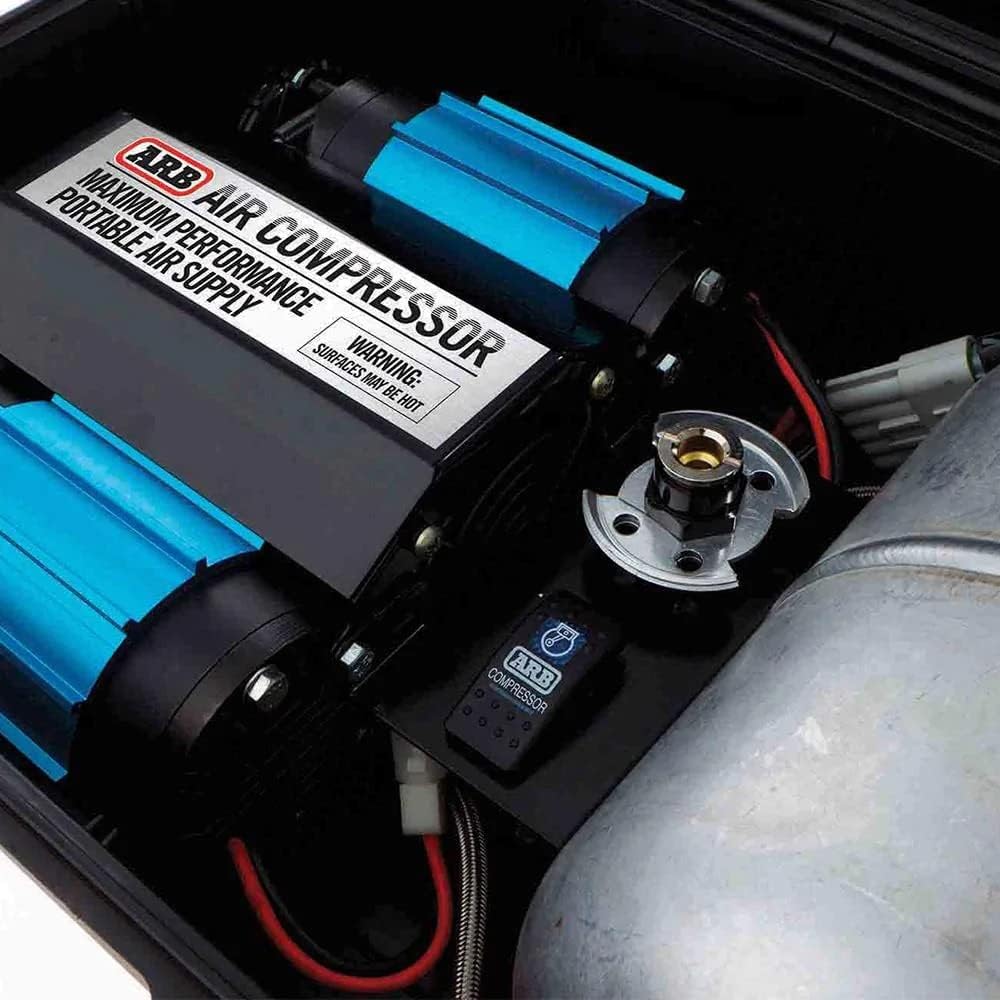

Aluminum Air Tank and Pressure Switch

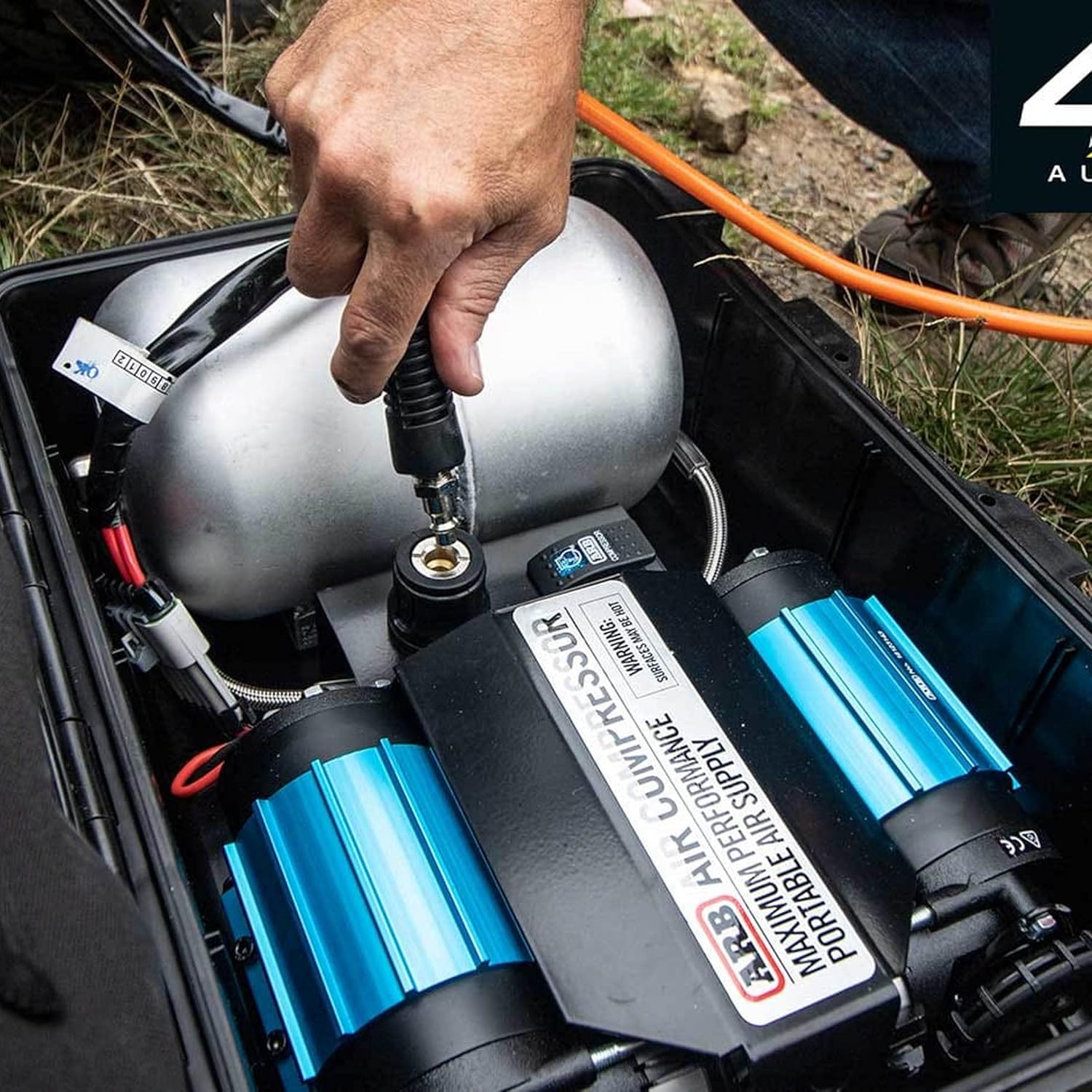

ARB CKMTP12 Twin Motor High Performance Portable Air Compressor

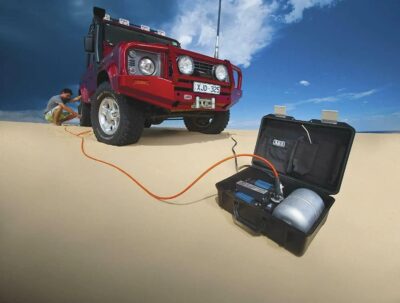

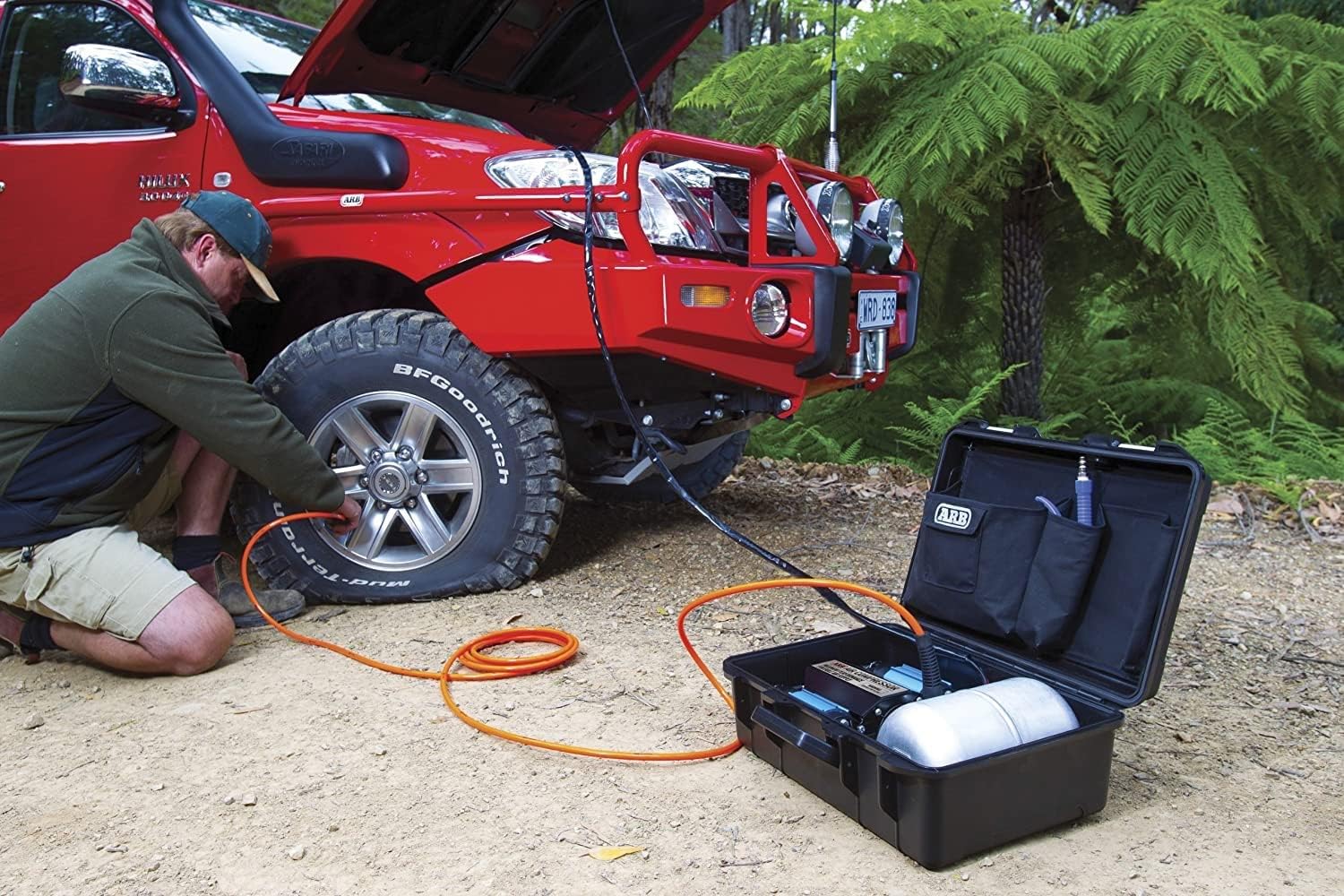

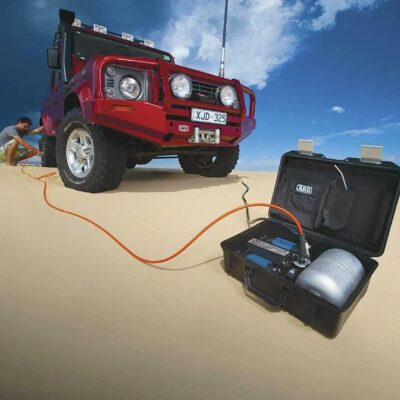

ARB’s new twin portable air compressor was designed to fill the market need for a portable compact-sized yet high-performance compressed air source for the rapid inflation of large tires and the high volume air needs of most air-powered tools. The ARB twin portable air compressor is a world-class recreational product designed and built to commercial/industrial standards to survive harsh and demanding outback conditions.

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

TECH SPECS – 100% Quality control guaranteed

Hard anodized cylinder bores for reduced friction100% duty cycleSealed for moisture and dust resistanceTeflon-impregnated carbon fiber piston seals for a maximum trouble-free lifeAnodized mounting bracket dissipates heat PORTABLE MAKES IT EASIER

As a portable carry case kit air compressor you will always count with it in any all of your 4×4 adventures. Also, it will make it easier to transport in a secure carry case that will protect it from anything.

CKMTP12 DETAILS

1

2

3

4

5

6

SUPPLY VOLTAGE 12 Volts DC MAX CURRENT DRAW (each motor) 34.3 Amps @ 1030 kPa MAX CURRENT DRAW (total) 68.6 Amps @ 1030 kPa FUSE RATING (each motor) 40 Amps RELAY RATING (each motor) 40 Amps WEIGHT (total kit) 15 kg DIMENSIONS 18.8 inches X 14.0 inches X 7.3 inches DUTY CYCLE @ 22°C [72°F] 100 % / 60 minutes per hour PRESSURE SWITCH CLOSED < 930 kPa / < 135 PSI PRESSURE SWITCH OPEN > 1030 kPa / > 150 PSI SAFETY VALVE PRESSURE > 1240 kPa / > 180 PSI MOTOR THERMAL CUT-OUT 115 °C / 239 °F MAX. AMBIENT TEMPERATURE 100 °C / 212 °F SPECS @ NO LOAD TEST PRESSURE: 0 kPa / 0 PSI – CURRENT DRAW: 8.4 Amps – AIR FLOW RATE 174.4 L/min. / 6.16 CFM SPECS @ TYRE PRESSURE TEST PRESSURE: 200 kPa / 29 PSI – CURRENT DRAW CKMTP12: 50.4 Amps – AIR FLOW RATE: 131.8 L/min. / 4.68 CFM

• Ultra compact twin motor, dual cylinder design makes this the high flowing portable compressor of its size on the market at 6.16 CFM (no load) and 4.65 CFM (at 29 PSI)
• Integrated aluminum air tank and pressure switch regulates pressure between 135 PSI and 150 PSI which is suited to most air powered tools

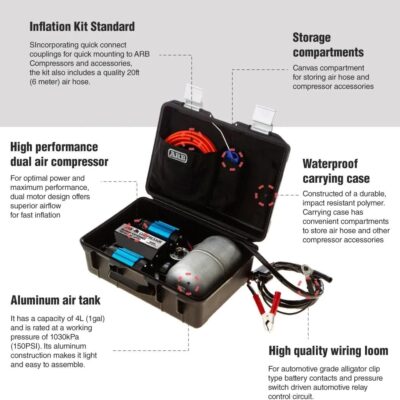

• Mounted in a waterproof carry case constructed from a durable impact resistant polymer; the carry case has convenient compartments for storing the air hose and other compressor accessories
• Ducted IP55 sealed brushed DC cooling fan and anodized aluminum motor mounting brackets effectively dissipate heat from the motors, heads and electronics allowing for a 100 percent duty cycle (under room temperature conditions)

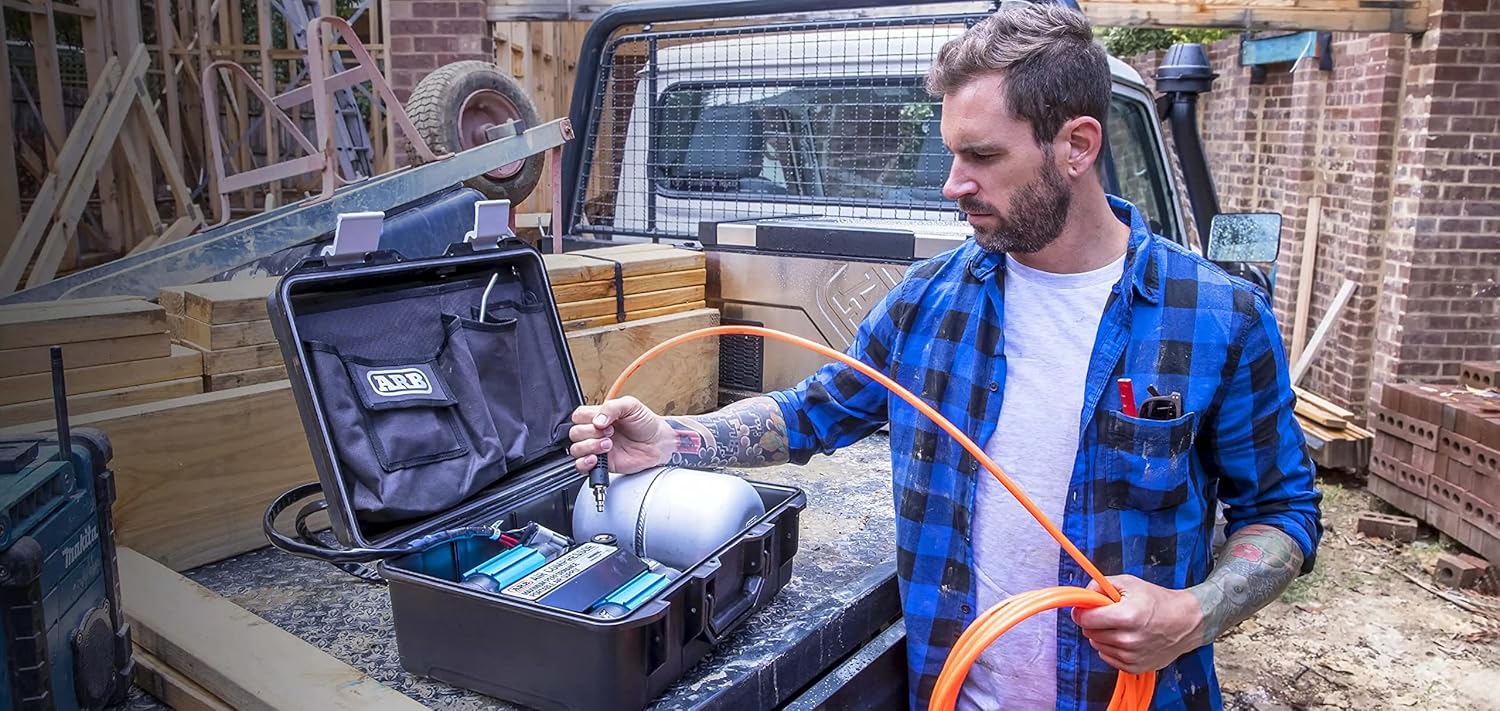

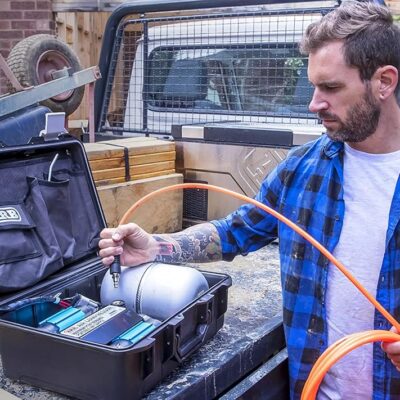

• IDEAL FOR INFLATING TIRES ON THE GO OR TO HAVE HANDY WHEN USING MOST AIR TOOLS. Kit includes: Water proof case, twin compressor, air tank, canvas organizer, 20 feet air hose and blow gun
