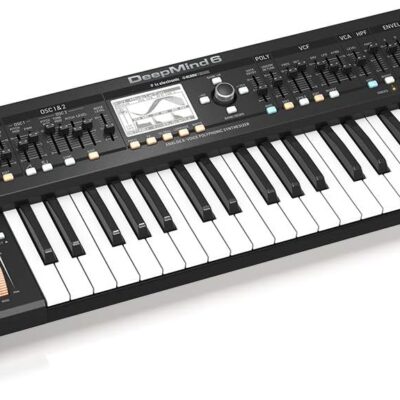

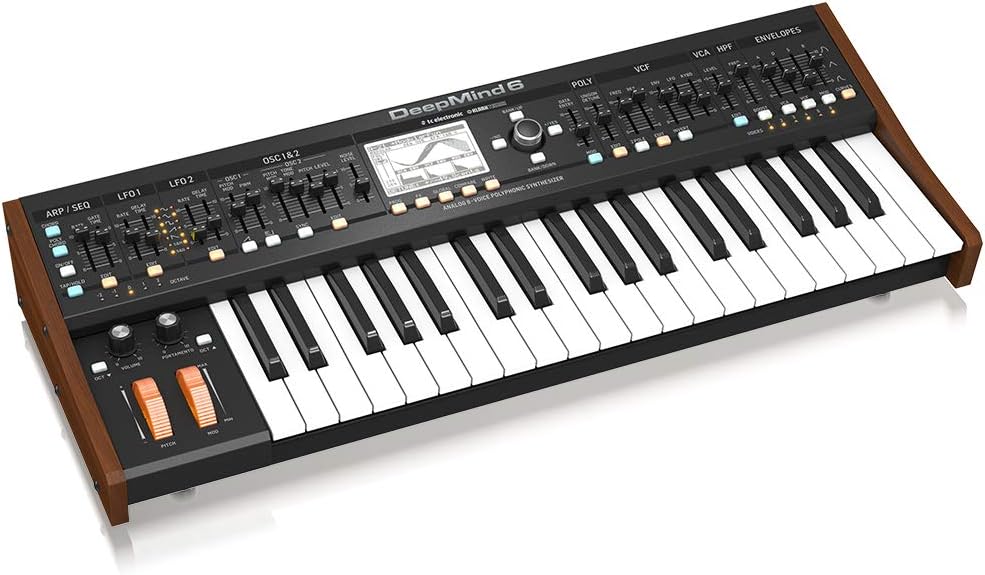

DEEPMIND 6

True Analog 6-Voice Polyphonic Synthesizer with 4 FX Engines, 2 OSCs and LFOs per Voice, 3 ADSR Generators, 8 Channel Modulation Matrix, 32-Step Control Sequencer and Tablet Remote Control

Classic polyphonic synthesizer with 6 true analog voices for insanely fat and authentic sounds4 simultaneous world-class TC Electronic and Klark Teknik FX with over 30 algorithms including Reverb, Chorus, Flanger, Phaser, Delay and Multi-band Distortion

32-step control sequencer with adjustable slew rate and MIDI sync Full remote control via iPad*/PC/Mac* App over USB or MIDI for extended parameter control

DEEPMIND 6

DEEPMIND 6

With the creation of DEEPMIND 6, the ultimate true analog, 6-voice polyphonic synthesizer is finally a reality. DEEPMIND 6 allows you to conjure up virtually any sound you can imagine with unparalleled finesse and ease. Thanks to its 4 FX engines, dual analog OSCs and LFOs per voice, 3 ADSR Generators, 8-Channel Modulation Matrix and onboard 32-Step Control Sequencer, the DEEPMIND 6 gives you complete control over your soundscape. Plus, DEEPMIND 6 features comprehensive remote control via iPad*/PC/Mac and selected Android* Apps over USB or MIDI – for a custom-tailored workflow that lets your creative spirit soar to new heights.

Classic Polyphonic Synthesizer

The inspired synthesizer tracks laid down in the 1970s and ’80s are etched in the annals of progressive rock and pop music forever, making them truly classic in every sense of the word. DEEPMIND 6’s pure analog signal path with legendary IR3109-style VCFs, stereo VCAs, and 12-voice polyphony lets you recreate all that magic or design the powerful, original sounds that just might make you a legend in your own right.

Glorious 6-Note Polyphony

Playing chords and building textural soundscapes requires the ability to generate multiple notes or sounds simultaneously. While early analog synthesizers were either monophonic (only 1 note at a time), or somewhat limited in the number of sounds they could produce at the same time, the DEEPMIND 6 boosts your creativity with 6-note polyphony. Each voice has 2 oscillators, with OSC 1 generating sawtooth and square/pulse waveforms with pulse width modulation, and OSC 2 generates square/pulse waveforms with a unique tone modulation. With 12 oscillators at your disposal, a tremendous range of options becomes available including the following oscillator modes: Unison 6, 4, 3, 2 Mono; Mono -2; Mono 4; Mono 6; and Poly. The addition of oscillator sync, oscillator drift and parameter drift allow the recreation of the much sought after warmth and movement found in vintage analog synthesizers, with greatly improved reliability and stability.

Making Waves

Individual voices also have 2 LFOs (Low-Frequency Oscillators) with a range that extends into the audio rate. Each LFO features adjustable slew-rate, modulation delay, key sync, assignable clock sync (internal or external MIDI), envelope auto-triggering, as well as Delay and Fade in. The 7 available waveform shapes are; Sine; Triangle; Square; Ramp Up; Ramp Down; Sample and Hold, and Sample and Glide for an amazing array of tonal options. The DEEPMIND 6 also offers a highly unusual Phase Link option for the polyphonic LFOs, allowing them to operate in Unison (Mono), or link with an adjustable phase shift between voices. Additionally, the LFOs can track key pitch via the modulation matrix, enabling cross mod type effects.

DEEPMIND 6

3 Envelope Generators

When it comes to envelope generation, DEEPMIND 6 has all bases covered, thanks to 3 four-stage ADSR (Attack, Decay, Sustain, Release) envelope generators per voice, each equipped with continuously-variable curves for truly unique flexibility. Envelope Trigger Modes include: Legato, Mono, and Retrigger. The envelopes can be triggered by key, individual LFOs, or the control sequencer and looped well into the audio rate. DEEPMIND 6 serves up all the versatility and tone-sculpting options a professional musician could ask for.

8-Channel Modulation Matrix

Want to modulate the reverb tail or compressor with the mod wheel? How about driving the MIDAS Multiband Distortion effect with an LFO or aftertouch? With 19 modulation sources and more than 130 destinations, DEEPMIND 6 provides a multitude of modulation options. And the “press & hold” shortcuts make selection of those sources and destinations quick and easy.

32-Step Control Sequencer

The control sequencer features an adjustable slew rate, MIDI sync, and allows a 32-step pattern of values, which can vary from -127 to 127. Other parameters that can be controlled include: note value; tie and length; slew; and swing. These can all be mapped as modulation sources to any of the available destinations.

Remote Control

Comprehensive remote control is available for DEEPMIND 6 via iPad*/PC/Mac App over USB or MIDI for extended parameter control. The iPad App also features a robust preset manager, gig list full editor and integral Patch Morpher*.

DEEPMIND 6

Ultra-Expressive Keyboard

The keyboard features 37 full-sized, velocity-sensitive keys with aftertouch that deliver an expressive and superior playing experience. You’ll love the feel and playability of DEEPMIND 6’s semi-weighted keys as they respond to even the slightest nuance of your playing. Aftertouch allows you to imbue your sound with variations of pitch, volume, modulation or color – whatever parameters you choose. Whether you have a heavy or soft playing style, DEEPMIND 6 always responds to your touch with 3 different selectable velocity and aftertouch curves.

Pure Analog Signal Path

A modern reincarnation of a beloved analog classic (with true bypass studio-grade FX), all of DEEPMIND 6’s sounds are purely analog – all the way from OSC 1, which generates sawtooth and square/pulse waveforms with user-definable pulse width modulation (PWM), and OSC 2, which generates square/pulse waveforms with tone modulation. The combination of square/pulse waves on OSC 1 and tone modulation on OSC 2 gives the DEEPMIND 6 a boldly unique and fresh character not found in competing products.

Low Pass Filter & Envelope Faders

Everything about the DEEPMIND 6 has been designed to give you total control over the creative process. That goes for the selectable, dual slope 12/24 dB analog low pass filter with adjustable resonance and tracking (per voice), and the 4 Envelope faders that smoothly transform individual segments of the envelope between linear, exponential and reverse exponential curves.

Big, Fat Tones

DEEPMIND 6 provides your choice of powerful unison or poly modes, with detune, pan spread and drift parameters, that can handle up to 6 voices per note for incredibly fat tones. And if you want even more, just engage the global noise generator to expand the waveform options. DEEPMIND 6’s extreme versatility empowers you to be your creative best.

DEEPMIND 6

Polyphonic Portamento

While most synthesizers only allow simple mono portamento glides, the DEEPMIND 6 lets you create stunningly smooth mono and polyphonic chord glissandos that will really get your juices flowing. Options include flexible fixed rate, fixed time and exponential pitch glide modes of operation.

Arpeggiator

A very sophisticated Arpeggiator is also provided, complete with a tap tempo button and user-configurable pattern modes that exhibit a level of refinement previously only available from a sequencer. DEEPMIND 6’s arpeggiator can operate across up to 6 octaves, and you can choose from 32 preset rhythmic patterns with up to 32 steps and rests – or create and save your own. Modes of operation include: UP; DOWN; UP-DOWN; UP-INV; DOWN-INV; UP-DN-INV; UP-ALT; DOWNALT; RAND; AS-PLAYED, and CHORD. A wide range of clock options are also available, as well as hold switch latching.

Chord Memory

Want to build impossibly-huge chords that can be played with a single finger. DEEPMIND 6 allows you to write extremely complex chords and polychords (up to 6 notes each), save them into memory locations – and perform them with the press of a single key. There is enough storage space onboard for 36 six-note chords, all of which can be mapped to specific trigger keys.

True Bypass Mode

The FX menu of the DEEPMIND 6 is accessed by pressing the FX button, which in turn brings up the FX page on the LCD display. This is where you assign, route and adjust all FX parameters, including Mode, Mix and Level. You can select the Bypass Mode to completely remove the digital FX from the signal path for a pure, high-integrity analog tone.

• Classic polyphonic synthesizer with 6 true analog voices for insanely fat and authentic sounds
• 4 simultaneous world-class TC ELECTRONIC and KLARK TEKNIK FX with over 30 algorithms including Reverb, Chorus, Flinger, Phase, Delay and multi-band Distortion
• 6 voices with 2 OSCs per voice with oscillator sync mode
• 2 LFOs per voice with 7 waveform shapes, key sync, MIDI sync and envelope auto-triggering
• 3 ADSR generators per voice for control of VCF, VCA and MOD envelopes
