Description

From the manufacturer

Crown Audio is an industry leader in amplified sound. Crown makes amps for cinema venues, installed sites, touring rigs, portable PA and commercial audio. With over 67 years of focus on innovation and providing the best user experience, Crown Audio is continually raising the bar in audio amplification.

#Beheard

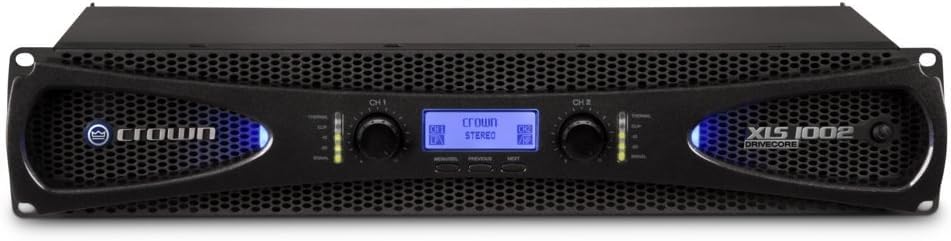

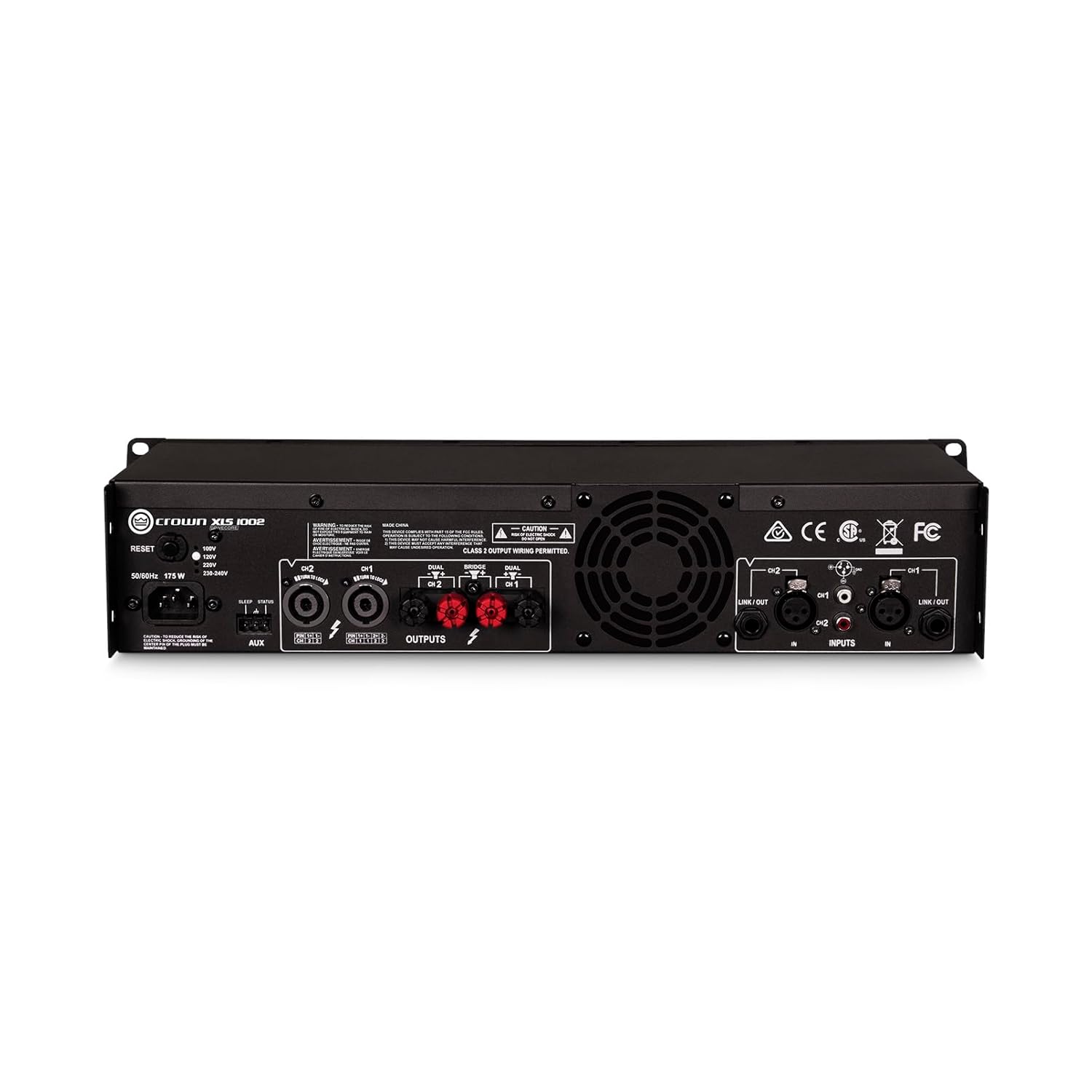

Crown XLS1002

Two-channel, 350W at 4Ω Power Amplifier

Crown’s new XLS DriveCore 2 series of power amplifiers feature an upgraded look with a larger display. Like their predecessors, the new XLS amps are equipped with Crown’s patented DriveCore technology. The XLS1002 can drive your speakers with 350 watts (at 4Ω bridged) of clean power with very low distortion.

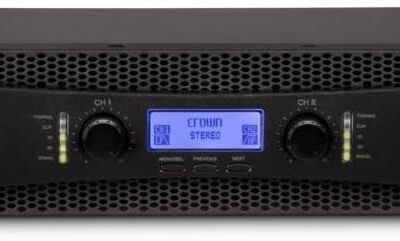

DriveCore circuitry maintains Class D high efficiency with low noise Two-channel power amplifier with built-in crossover Independent right- and left-channel gain controls LCD screen with menu/prev/next buttons Sleep mode turns LCD screen off for less distraction Security mode prevents tampering Internal heat sinks with forced-air cooling

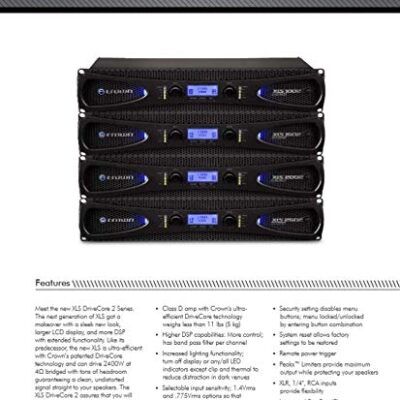

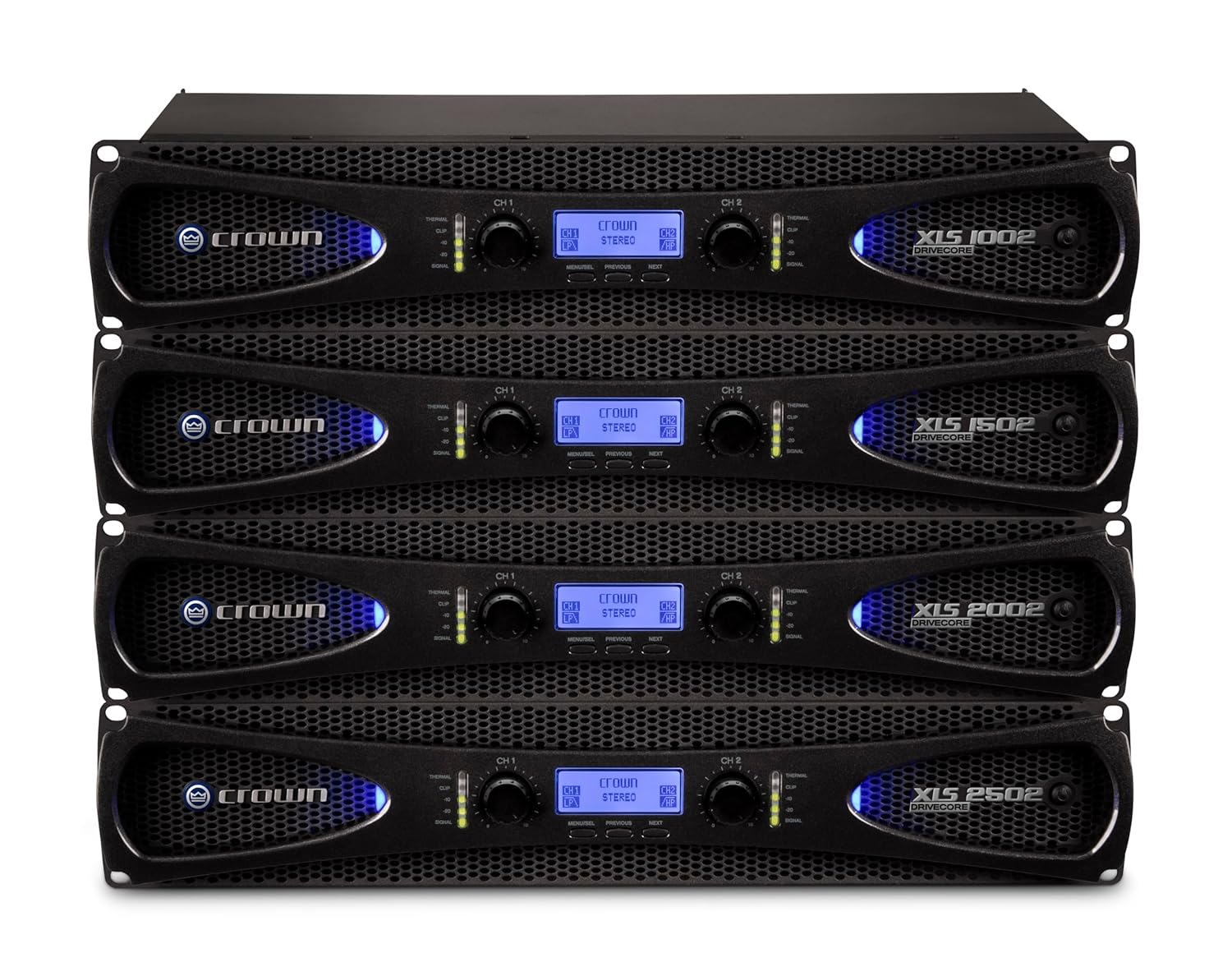

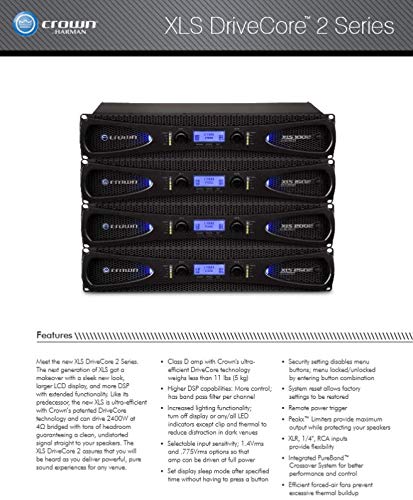

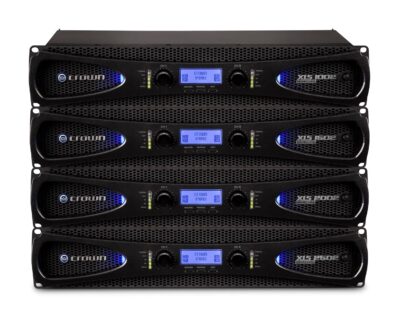

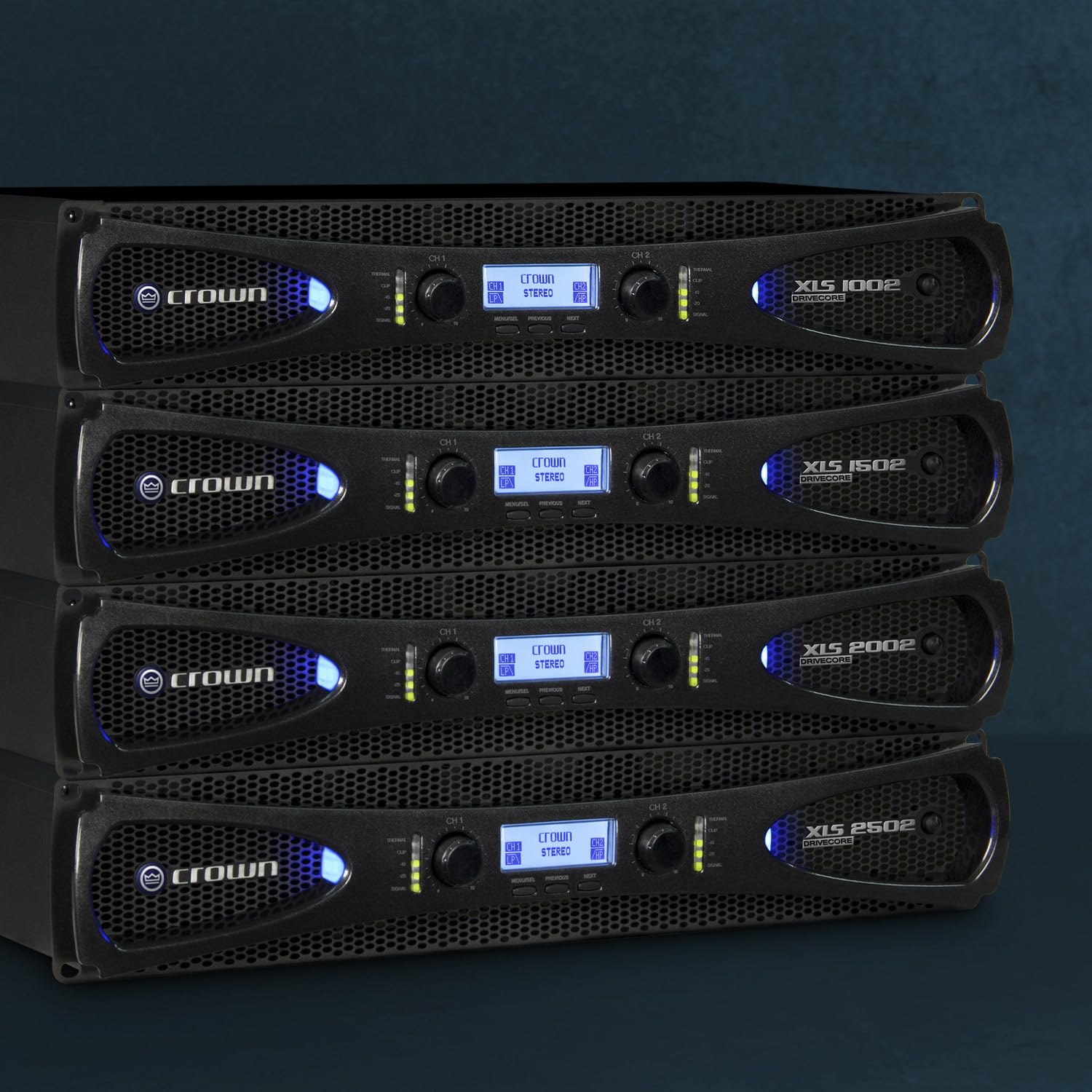

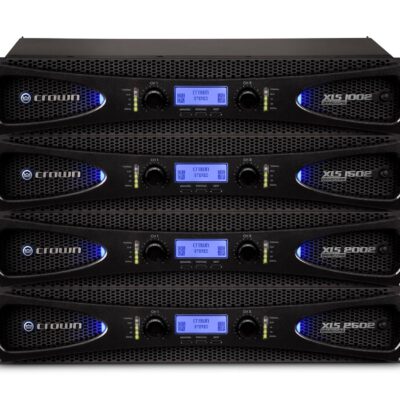

XLS DriveCore 2 Series Technology

DriveCore

This new amplifier technology seamlessly integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. The foundational DriveCore circuitry is based on breakthroughs by Crown’s own Gerald Stanley with five patents applying to the advanced feedback, modulation and output stage technologies. DriveCore’s front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an ultra-efficient one-piece audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.

Class-1

Class-I, also known as BCA (Balanced Current Amplifier) is Crown’s patented, cutting-edge technology that gets more power out of an amplifier with less waste than was ever before possible. Class-I technology offers several key advantages. It provides unprecedented efficiency, requiring less power from the AC supply than other designs and that can add up to significant cost savings over the life of the amplifier. Class-I handles reactive loudspeaker loads easily and gracefully, by reusing energy returned from the loudspeaker rather than dissipating it as heat or forcing the amp into premature current limiting.

Extended 6 Year Coverage

This protects you for a specific period from your date of purchase as stated in your bill of sale or as otherwise established by Harman. The coverage period will be extended to 6 years. Except as otherwise stated in this policy, this covers defects in materials and workmanship if: (1) you purchased this product from a dealer that is a Harman Professional authorized dealer with respect to this product at the time of your purchase; (2) your original, dated bill of sale is presented whenever service is required during the period; and (3) unless Harman states otherwise, you purchased this product in brand new condition.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.5 out of 5 stars 385

4.3 out of 5 stars 296

4.4 out of 5 stars 88

4.4 out of 5 stars 150

Price

$500.00$500.00 $650.00$650.00 $770.00$770.00 $879.98$879.98

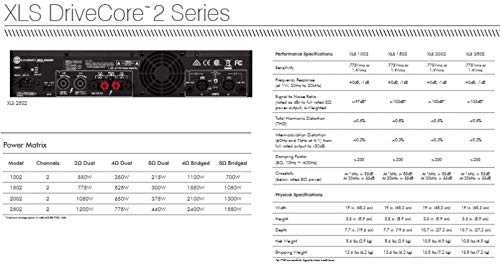

Product Type
Two-channel, 350W @ 4Ω Power Amplifier Two-channel, 525W @ 4Ω Power Amplifier Two-channel, 650W @ 4Ω Power Amplifier Two-channel, 775W @ 4Ω Power Amplifier

Sensitivity
1.4Vrms 1.4Vrms 1.4Vrms 1.4Vrms

Frequency Response
+0dB, -1dB +0dB, -1dB +0dB, -1dB +0dB, -1dB

Signal to Noise
> 97dB (at .775Vrms sensitivity, 6dB lower) > 97dB (at .775Vrms sensitivity, 6dB lower) > 97dB (at .775Vrms sensitivity, 6dB lower) > 97dB (at .775Vrms sensitivity, 6dB lower)

Intermodulation Distortion
< 0.3% < 0.3% < 0.3% < 0.3%

Damping Factor
> 200 > 200 > 200 > 200

THD
< 0.5% < 0.5% < 0.5% < 0.5%

Crosstalk
At 1kHz: > 85dB, At 20kHz: > 55dB At 1kHz: > 85dB, At 20kHz: > 55dB At 1kHz: > 85dB, At 20kHz: > 55dB At 1kHz: > 85dB, At 20kHz: > 55dB

Dimensions
19″ (48.3 cm) x 3.5″ (8.9 cm) x 7.7″ (19.6 cm) 19″ (48.3 cm) x 3.5″ (8.9 cm) x 7.7″ (19.6 cm) 19″ (48.3 cm) x 3.5″ (8.9 cm) x 7.7″ (19.6 cm) 19″ (48.3 cm) x 3.5″ (8.9 cm) x 7.7″ (19.6 cm)

Weight
8.6 lbs (3.9 kgs) 8.6 lbs (3.9 kgs) 10.8 lbs (4.9 kgs) 10.8 lbs (4.9 kgs)

From the brand

• 2-channel XLS DriveCore 2 Series Power Amplifier
• 350W Continuous/ch at 4 ohms
• lightweight 8.6-lb chassis
• Remote Power On/Off
• with Massive DSP
