Experience and excellence:

For 70 years we have employed the best methodology and tools, and, as established at the very beginning by our founder, James B. Lansing, we develop everything from the ground up. This not only ensures success in the marketplace, it guarantees our efforts exceed the needs and expectations of audio professionals throughout the world. It’s a journey that is legendary worldwide and has positioned JBL as one of the world leaders in professional audio.

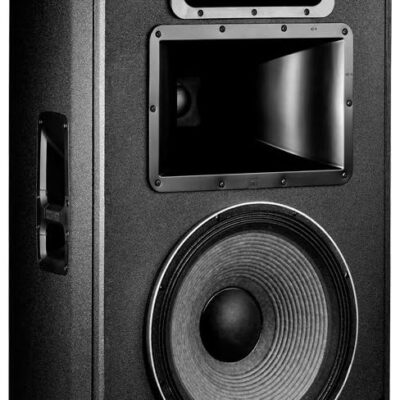

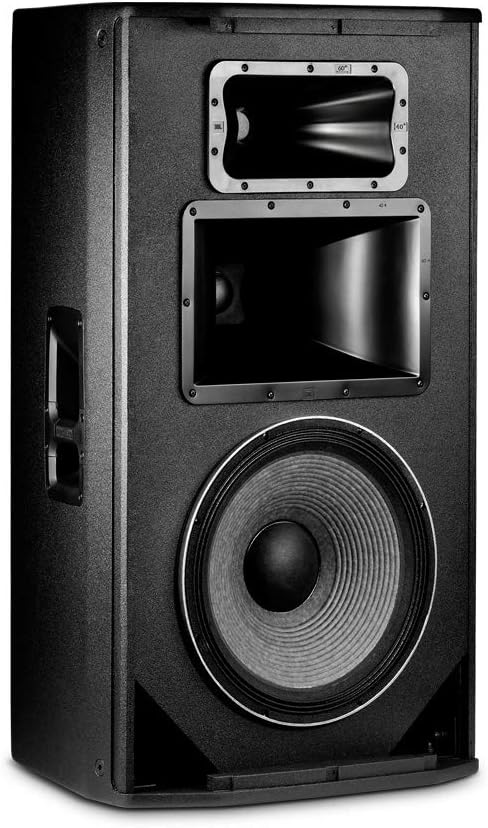

JBL SRX835

Portable 15” Two-Way Bass Reflex Passive Speaker System

SRX835 is a portable, three-way, full-range passive speaker with a 15” woofer made for use as a light to medium-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs in need of speakers for concert use, public speaking, or installations in locations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown I-Tech HD and XTi2 amps as well as dbx VENU360 signal processors.3

JBL 15″ woofer Frequency Response: 43Hz – 17kHz SPL: 136 dB Maximum Power Handling: 3200W Peak, 1600W Program, 800W Continuous Coverage Pattern: 60° x 40° JBL premium Transducers Fully supported in Audio Architect Ergonomic Handles M10 Suspension Points

Key Features

Built to last

With best-in-class 18mm wooden enclosures, 14-gauge steel grilles, and JBL’s Patented DuraFlex finish, SRX800 speakers are built to last and can withstand a lifetime of hard tour use.

Purposeful design

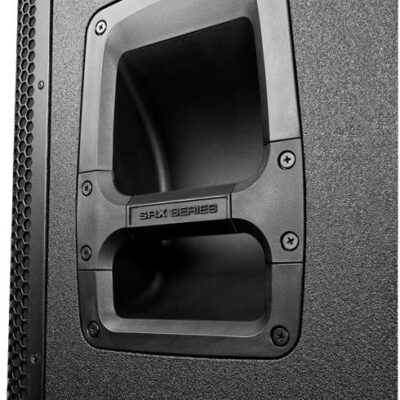

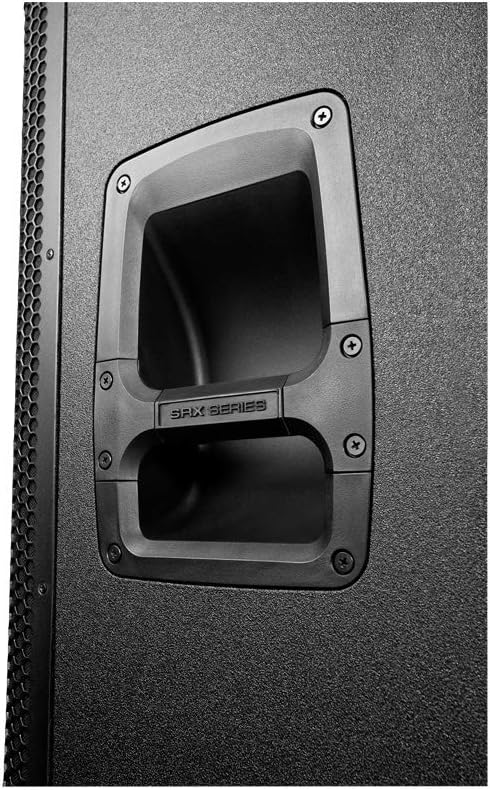

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

Transducer technology

JBL’s patented Differential Drive Technology ferrite drivers incorporate 3” voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3” voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Customer Reviews

—

—

—

—

—

Price

— no data

— no data

— no data

— no data

— no data

System Type
Passive 12”, two-way, bass-reflex Passive 15”, two-way, bass-reflex Passive 15″, three-way bass reflex Passive 18”, subwoofer system Passive dual 18”, subwoofer system

Maximum Sound Pressure Level (SPL)
135dB 136dB 137dB 135dB 141dB

Frequency Range (-10dB)
41hz – 20khz 41hz – 20khz 32hz – 20khz 28hz – 150hz 30hz – 150hz

Frequency Response (-3dB)
57hz – 20khz 56hz – 20khz 43hz – 17khz 45hz – 150hz 47hz – 150hz

Coverage Pattern
90° x 50° 90° x 50° 60° x 40° n/a n/a

Dimensions (LxWxH)
16.87 x 16.31 x 25.11″ (429 x 415 x 638 mm) 18.82” x 18.03” x 27.20” (478mm x 458mm x 691mm) 18.74” x 21.4” x 38.74” (476mm x 544mm x 984mm) 26.89″ x 26.92″ x 22.62″ (683mm x 684mm x 575mm) 26.79″ x 47.42″ x 22.57″ (681mm x 1205mm x 574mm)

Weight
55.0 lb (24.9 kg) 137.0 lbs (62.1 kg) 95.0 lbs (43.09kg) 78.0 lbs (35.4 kg) 137.0 lbs (62.1 kg)

From the brand

• 3-Way Bass Reflex Passive System Speaker, 15-Inch, PA, DJ. Technical specifications: 8 ohm, 137 dB maximum SPL output. 32-20k Hz frequency range; 43-20k Hz frequency response; Power Rating of 600W continuous, 1600W program, 3200W peak. Bi-Ampable. Speakers Coverage Pattern: 60×40 degrees.
• Durability – With best in class 18mm patented JBL Duraflex coated plywood enclosures, and 14 gauge steel grilles, this speaker is built to last and withstand a lifetime of hard tour use, ensuring durability and reliability for the long haul.
• Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling, and M10 suspension points, indexed feet, and pole/tripod stand mounts support a wide array of configurations
• JBL Professional’s patented Differential Drive Technology incorporate lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. For even greater performance and sound, consider adding JBL SRX818S or SRX828S subwoofers (sold separately).
• Versatile Applications – Perfect for live music performances, mobile DJs, fixed DJ setups, singers, bands, corporate spaces, public speaking PA systems, houses of worship, sound system rentals, tours, and permanent installations.
