Product description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. JOYO Reverb Pedal Merchant Video

R-14 ATMOSPHERE Features 9 Built-in Digital Reverb Types

Craft dreamy guitar textures with JOYO R-14’s 10 pro reverb modes – from cosmic ambience to studio-perfect echoes. Built like a tank, it’s your secret weapon for live grit or studio magic.

9 Built-in Digital Reverb Types

PLATE Studio style plate reverb CHURCH Huge room reverb SPRING Classic spring reverb tank EKO-VERB Combines echo and reverb SHIMMER It feels like the shimmer in a dream COMET As if the comet orbits between your amp and guitar REWIND It feels like you’re rewinding the tape FOREST It feels like have a sunbath in the forest PULSE Similar to the fluttering pulse

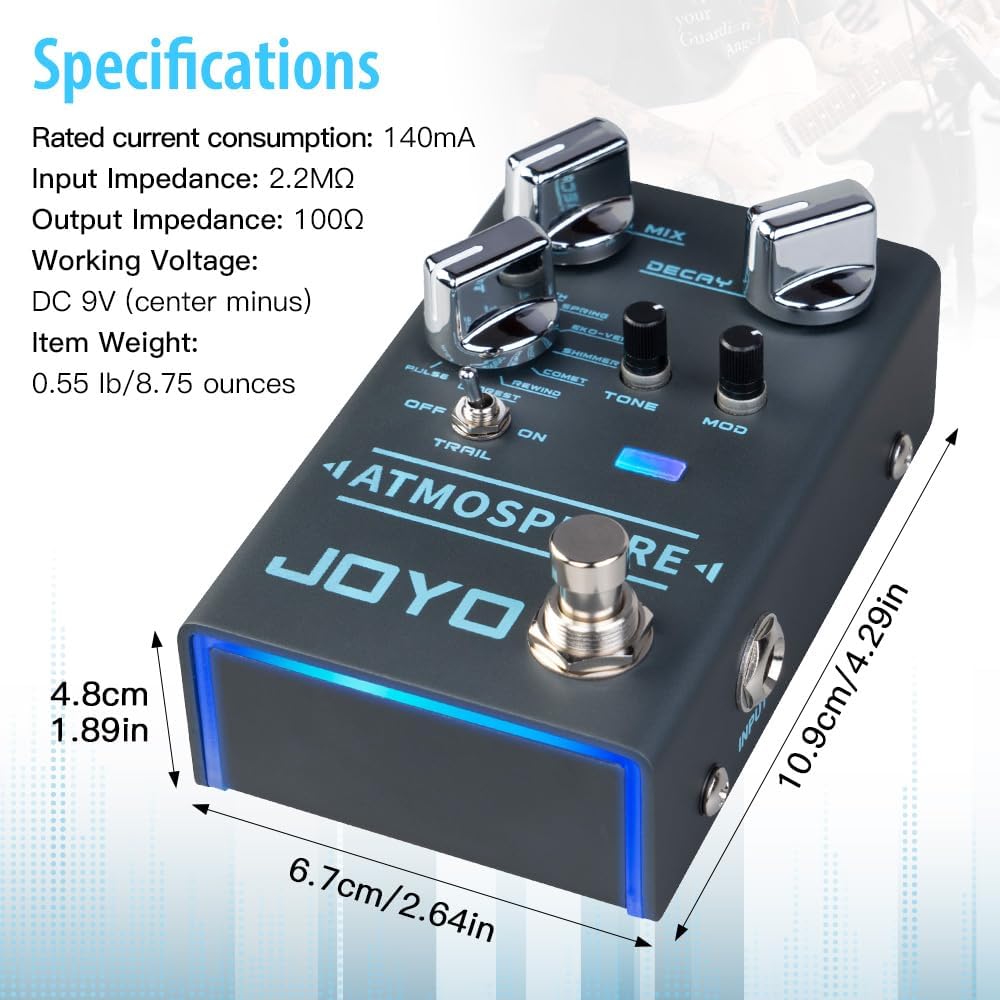

Specifications

Input Impedance 6.35mm Mono audio jack 2.2MΩ Output Impedance 6.35mm Mono audio jack 100Ω Signal Bypass Type Bypass Rated Current Consumption 140mA. Warning: Units cannot operate with power supplies below 140mA current. Working Voltage DC 9V(center minus). Warning: The 12V voltage will burn the pedal during prolonged use. Power Supply Only supports external power supply, with no battery compartment Dimensions 109(L)X 67(W)X 48(H) mm Weight 248g Package included 1 x JOYO R-14 Atmosphere Digital Reverb Effect Pedal (mono effect unit), 1 x User’s Manual. (Power Supply Adapter is NOT included.)

What should I do if my pedal isn’t functioning properly?

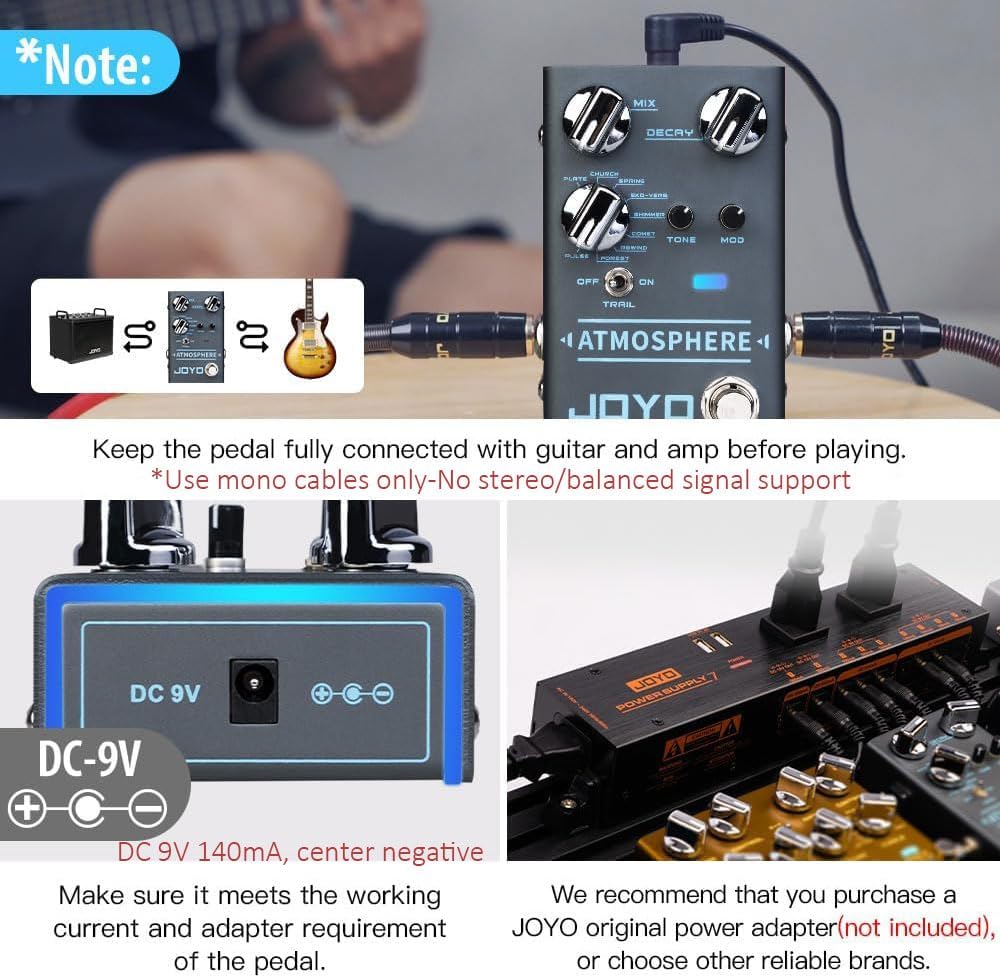

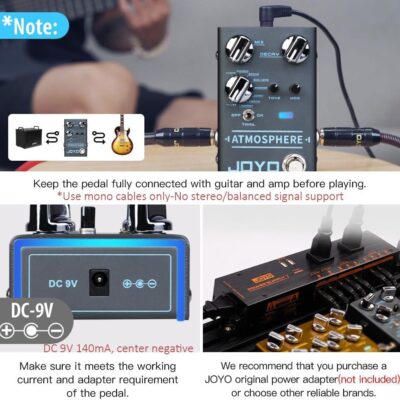

Firstly, ensure your adapter meets DC 9V 140mA (center-negative) specifications. Using 12V or non-compliant adapters may damage the circuitry.Confirm the power cable is fully inserted into the effector’s interface.

Why does the volume drop when using the pedal?

Volume attenuation may occur with extreme Decay/Mix knob settings—a characteristic of digital reverb effects. For optimal performance, keep both parameters below 70% and avoid simultaneous maximum settings.

How to reduce noise during operation?

Always use the dedicated power supply included with your effector or a reputable brand adapter; Test in different outlets if hum persists；Replace damaged/oxidized audio cables

More Tips for Best Performance

Always fully insert audio/power cables; Replace faulty/poor-contact cables; Activate Bypass mode. If volume recovers, the issue is parameter-related (not hardware); Use mono cables only and ensure plugs are fully inserted to avoid signal loss.

More Pedals You May Like

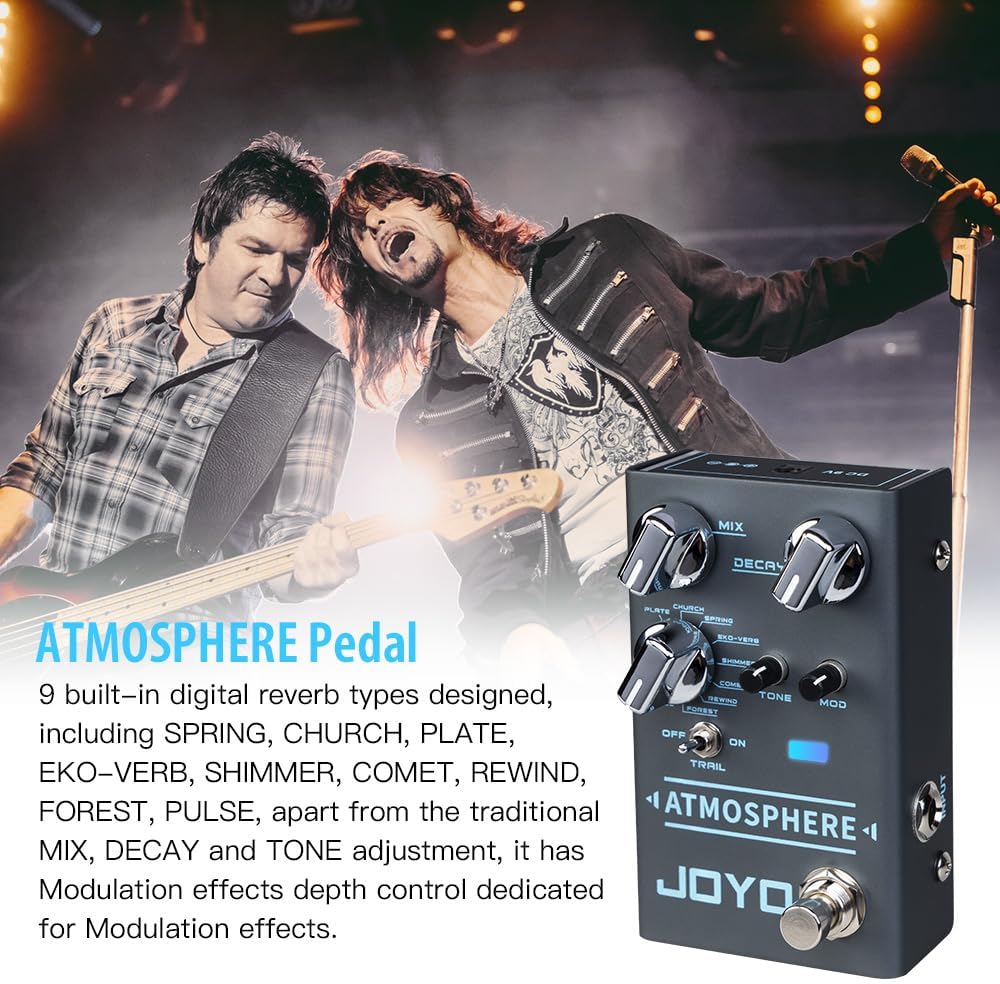

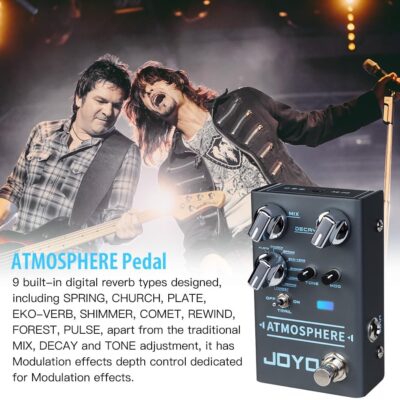

• JOYO Atmosphere features 9 built-in digital reverb types, including SPRING, CHURCH, PLATE, EKO-VERB, SHIMMER, COMET, REWIND, FOREST, PULSE, apart from the traditional MIX, DECAY and TONE adjustment.

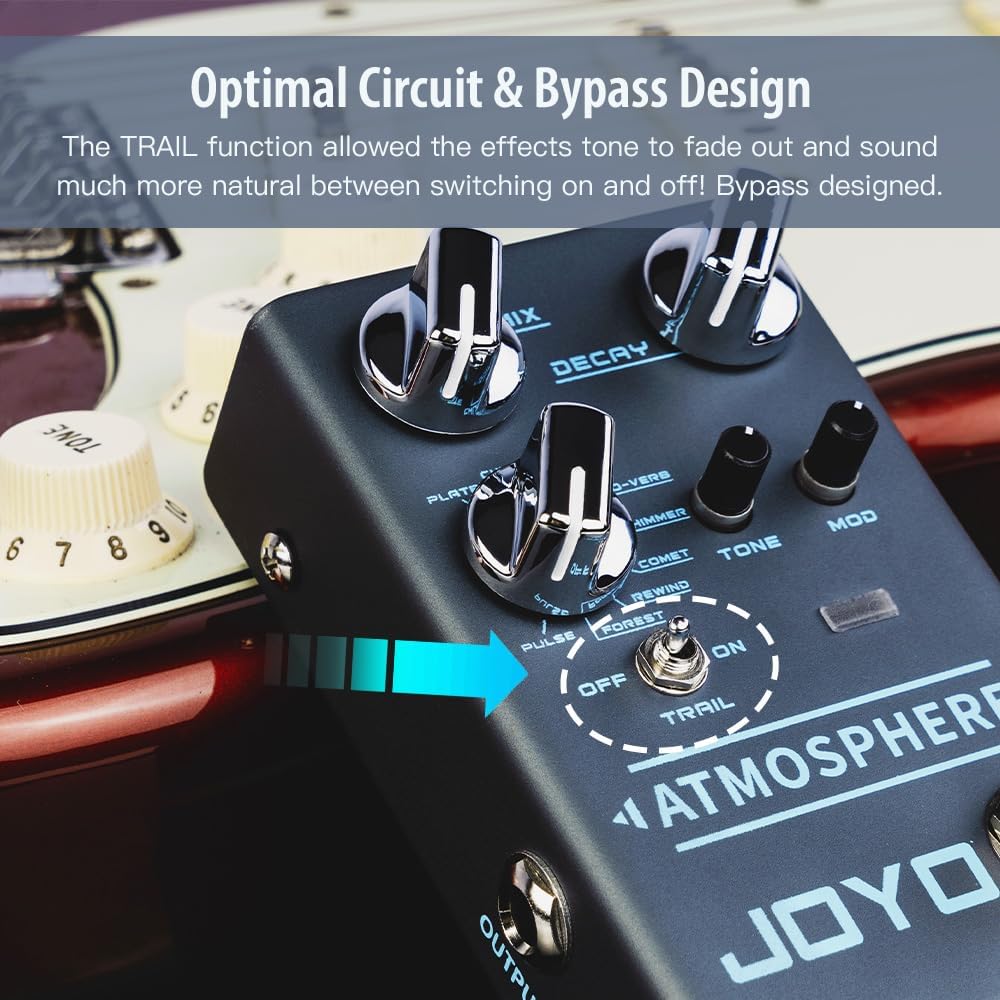

• It has modulation effects depth control dedicated for modulation effects. The “TRAIL” function switch is for switching on the Trail function, allowing the effects tone to fade out and sound much more natural between switching on and off.

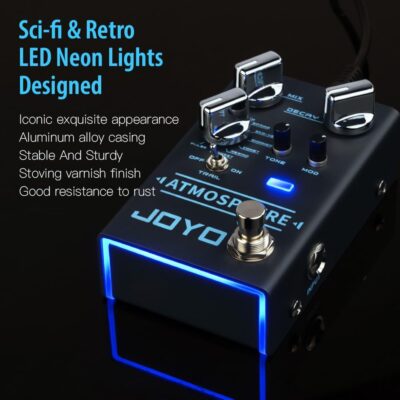

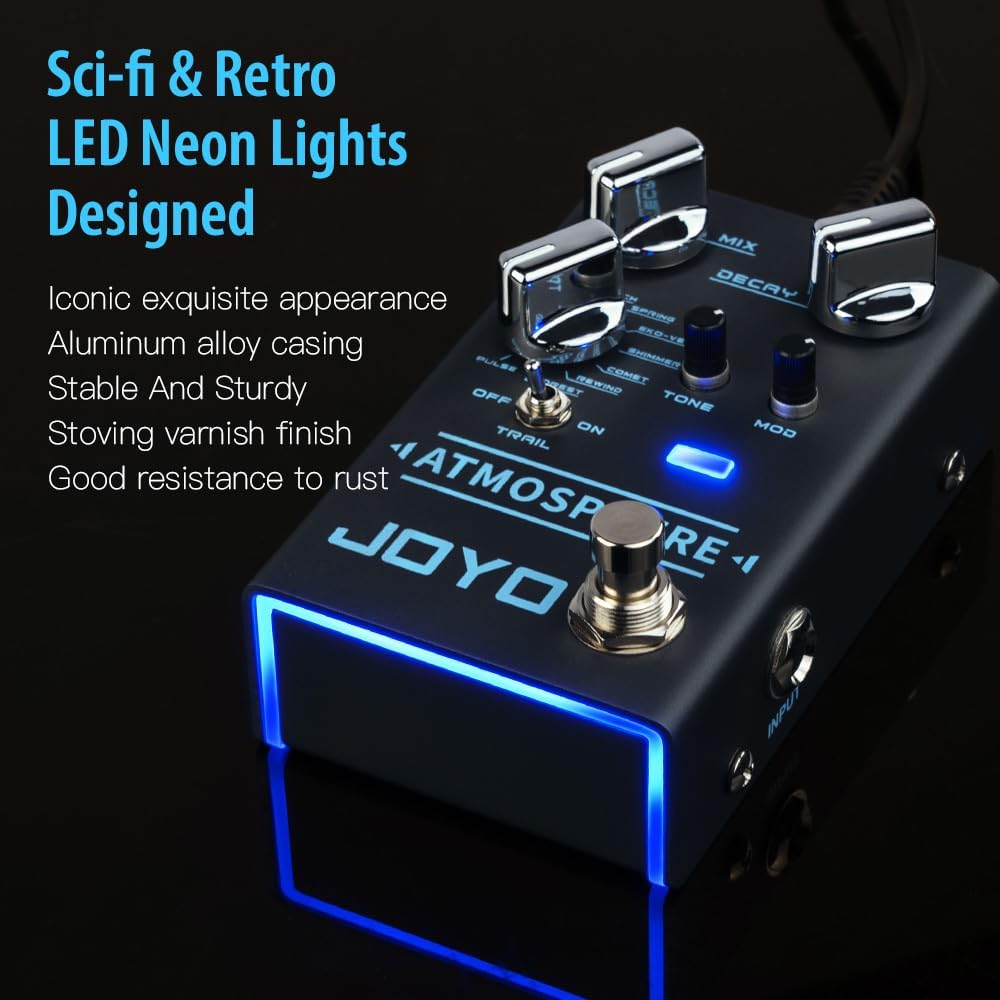

• Whole new appearance and the iconic ambience lights bring out futuristic and retro styles, will make our soul happy whether are jamming in the bedroom, studio or on the stage.
• JOYO has over a decade of brand reputation, and its most popular budget pedals, amplifiers, wireless systems, controllers, metronomes, tuners have won the love of guitarists all over the world and inspired people’s musical dreams.
• Before playing, please make sure the guitar is fully connected with the pedal. in order to make JOYO pedals work properly and avoiding unexpected noise, we recommend you to purchase an extra JOYO original power adapter, or choose the other reliable brands and make sure it meets the working current requirement of single pedal.
