Technical Specifications

Power Included 12V DC Power Supply Sound Engine Analog Presets 128 which can be edited via software editor Polyphony Monophonic Sound Sources 2 Waveshape Oscillators with Square and Saw waveshapes Oscillator Calibration Range 22Hz-6.8KHz. Note range at 8’ = 18 – 116 Glide Select LCR, LCT, EXP – Legato On/Off Filter 20Hz-20KHz Moog Ladder Filter Modulation Sources LFO (Triange, Square, Saw, Ramp, Sample & Hold), Filter Envelope Modulation Destinations Oscillator Pitch, Oscillator 2 Pitch only, Filter Cutoff Envelopes 2x ADSR Envelopes with Legato On, Legato Off and EG Reset Assignable CV/Gate Inputs Filter CV (Fixed Dest.), Pitch CV (Default), Volume CV (Default), KB Gate (Default) Ext. Controller Response Keyboard, Pitch Bend, Mod Wheel, After Pressure and Velocity Connections Ext Audio In, MIDI In, USB, Audio Out, Headphones Out, CV/Gate In Dimensions 3.1”H x 8.75”W x 5.1”D / 7,8 cm H x 22,2 cm W x 12,9 cm D Weight 2.5lbs (1.2kg)

How do I change presets via the Minitaur panel?

Hold GLIDE and press the OSC 1/2 waveshape buttons to scroll through presets.

What are the note limitations of Minitaur?

Minitaur is engineered for bass and therefore will not play any notes above C5.

How can I control Minitaur?

You can control Minitaur via MIDI keyboard or Digital Audio Workstation over MIDI/USB or via analog Control Voltage CV/Gate.

Can Minitaur convert external CV signals to MIDI?

Yes, Minitaur can act as a CV to MIDI converter.

• Heritage Bass Lineage – Minitaur is the latest in the Taurus line of MOOG synthesizers which have been generating earth -shaking bass for nearly 50 years

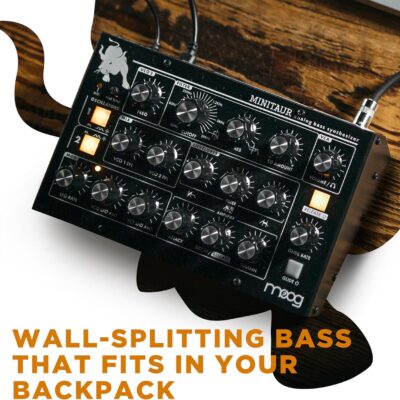

• Compact and Powerful – Deep and punchy bass in a rugged solid steel enclosure that is small enough to take with you anywhere

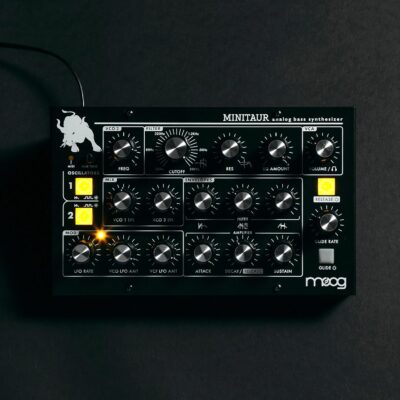

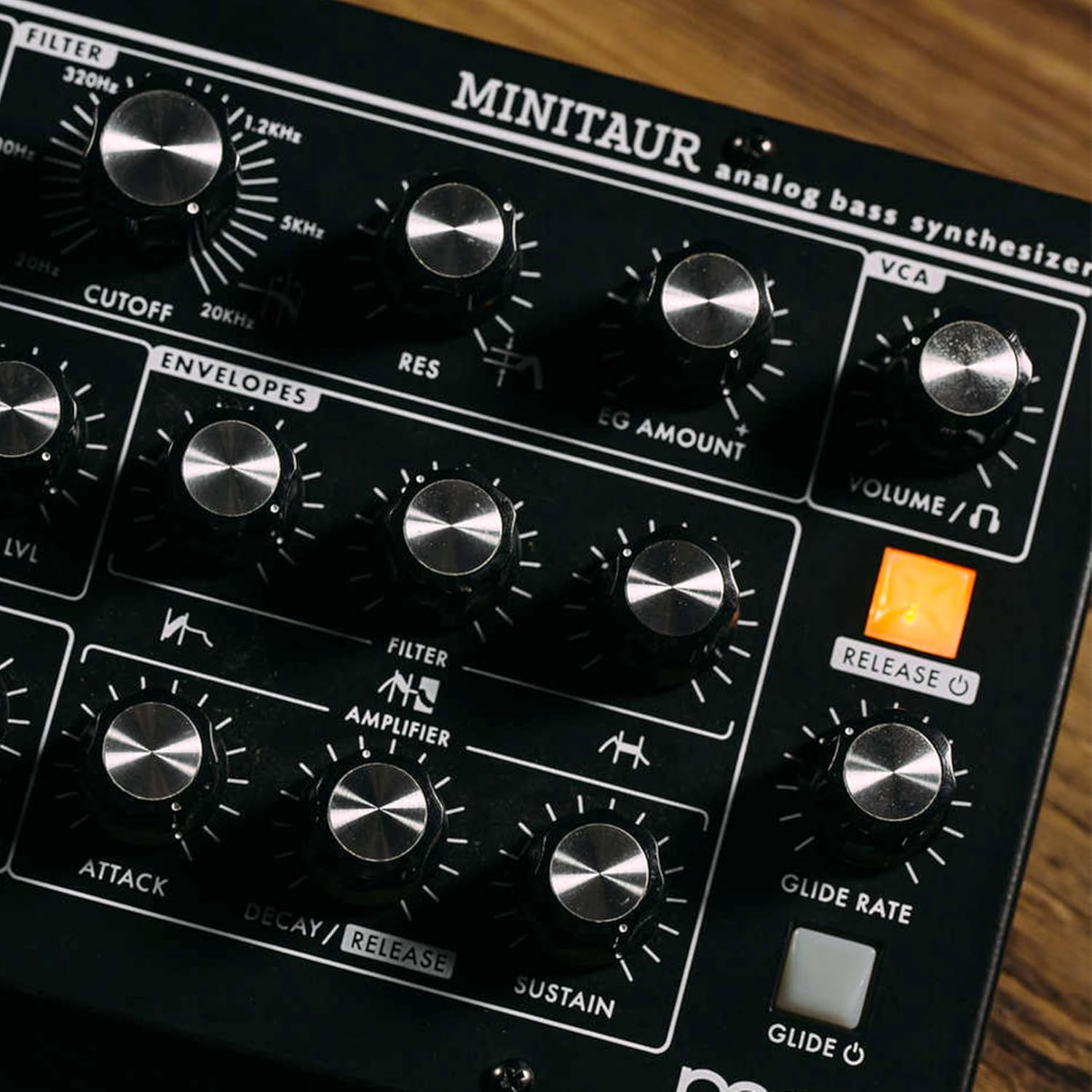

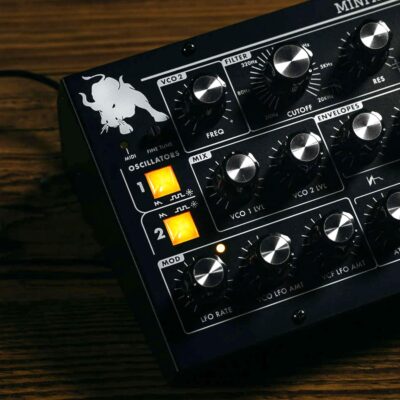

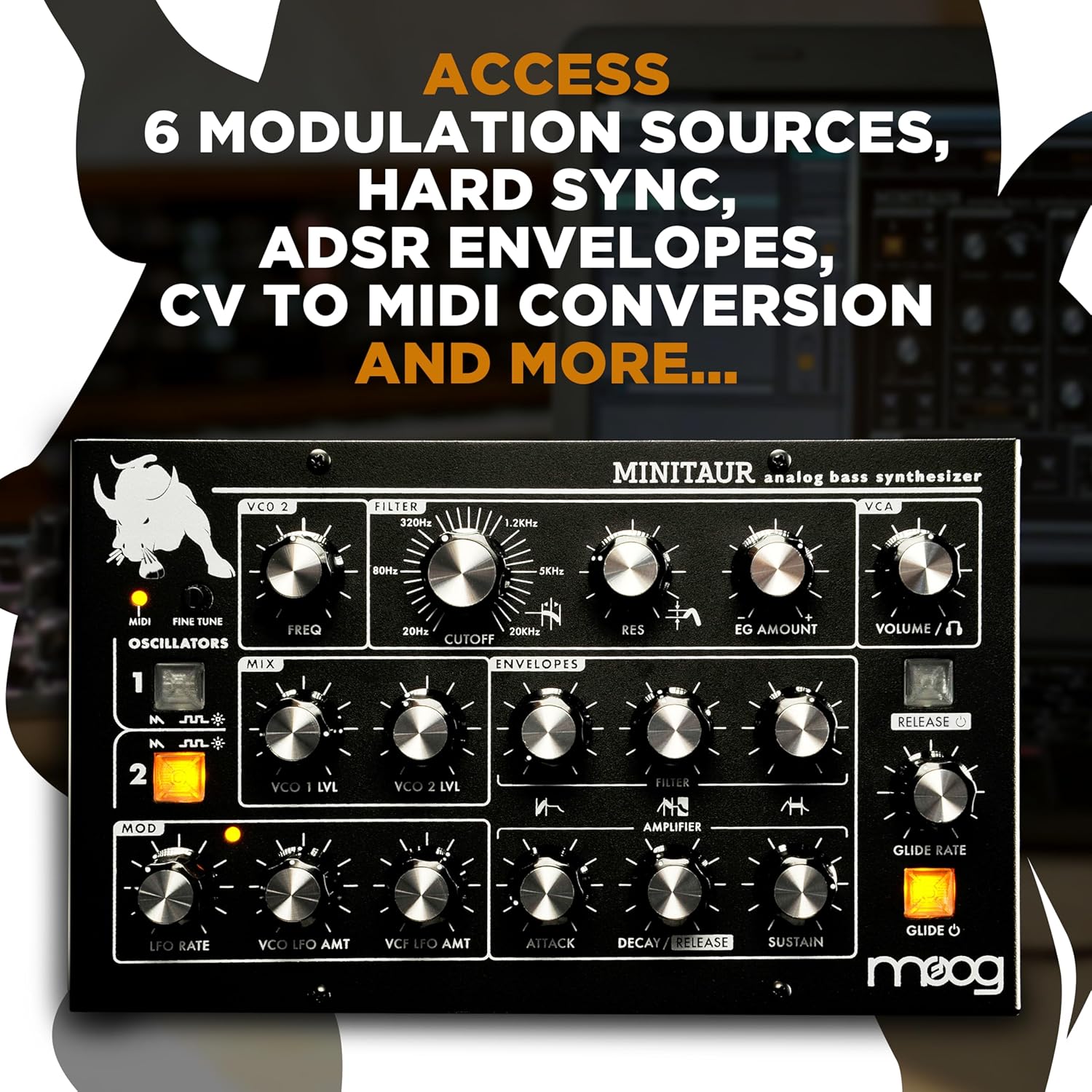

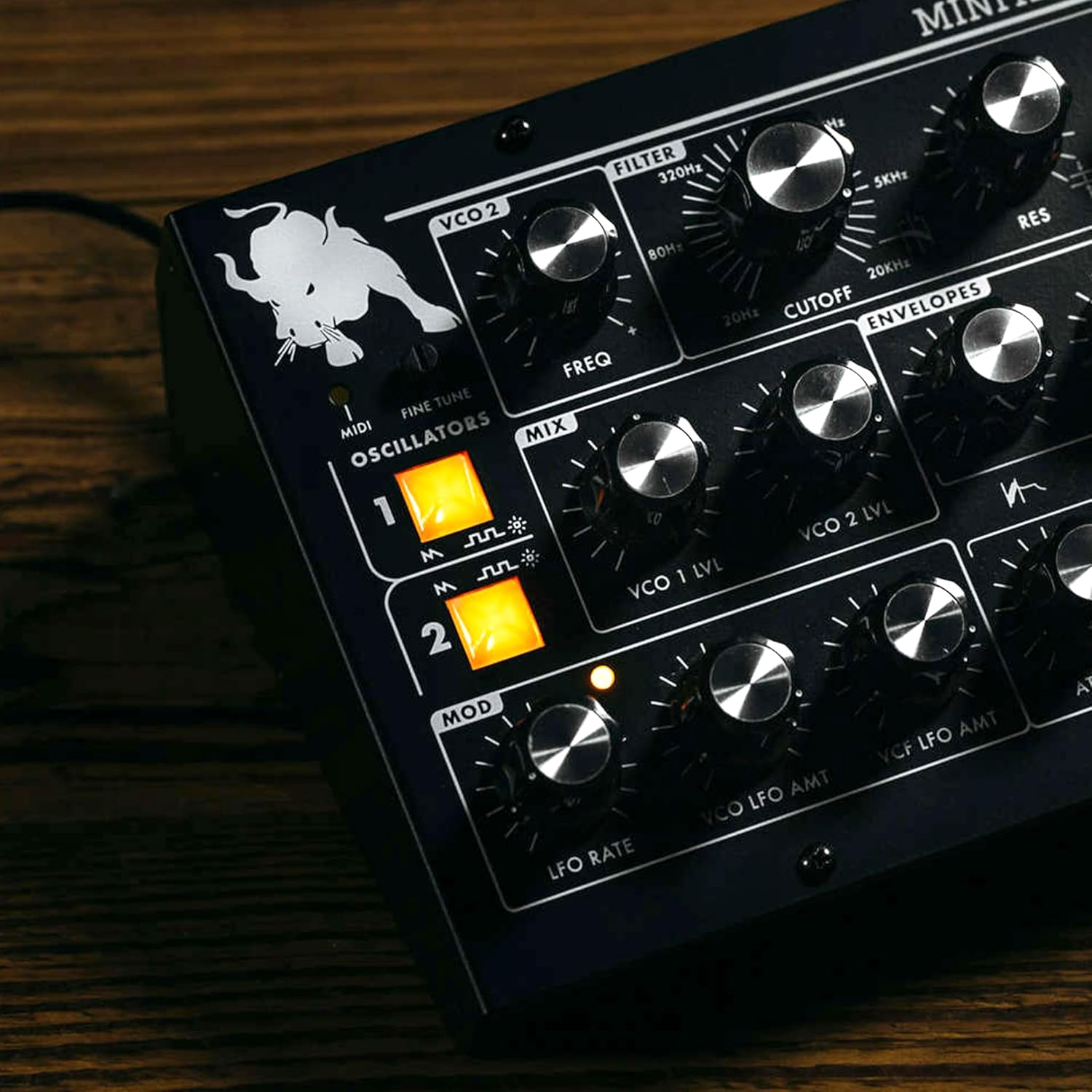

• Hands-On Control – Full control over 2 VCOs, a MOOG Ladder VCF, Modulation, and two MiniMOOG style envelopes

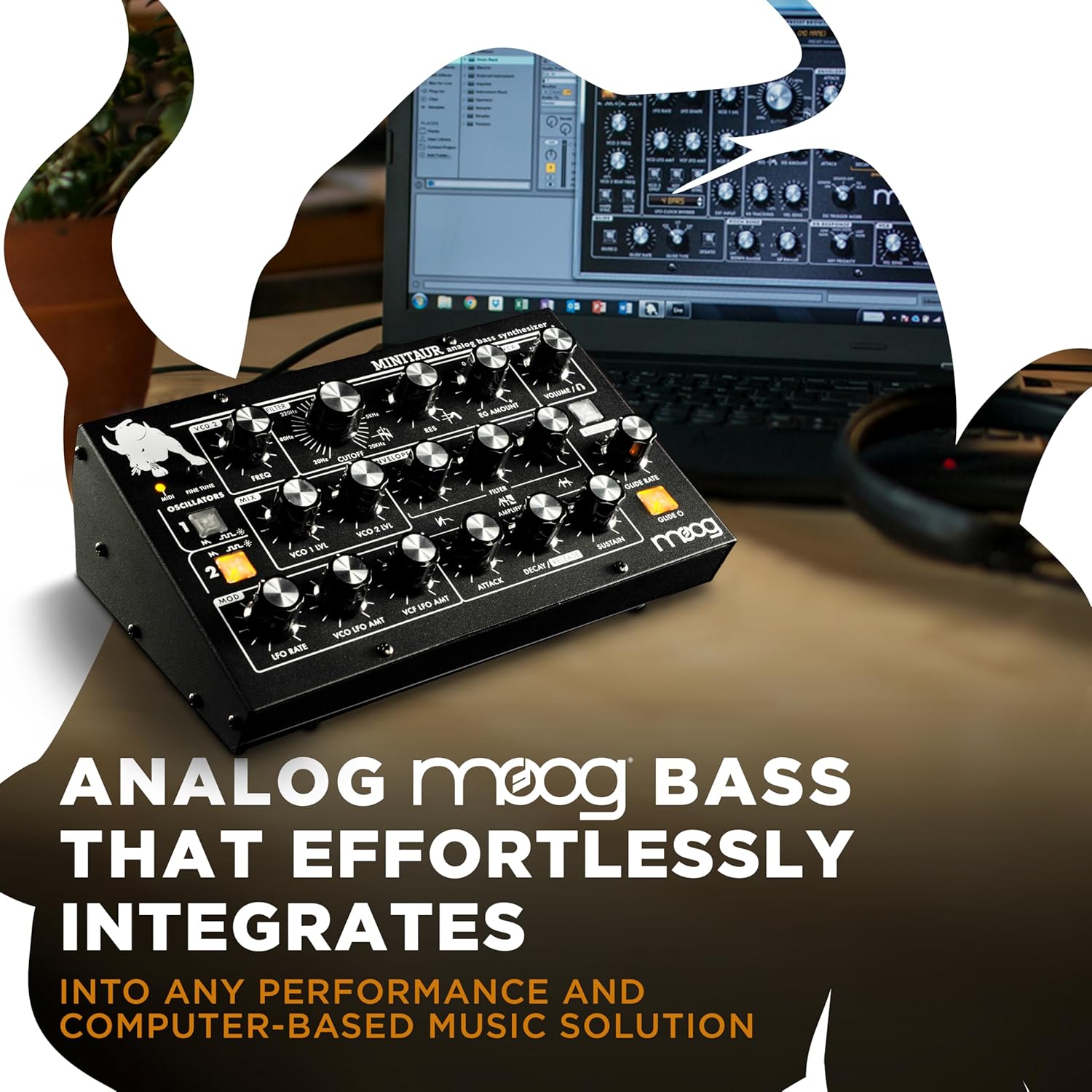

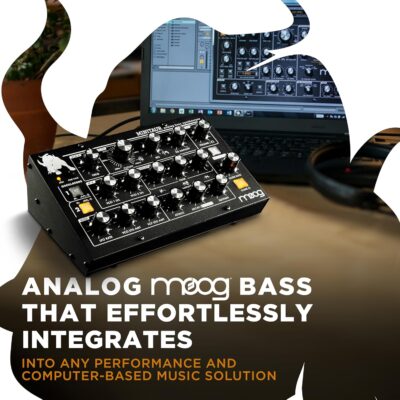

• Software Integration – Preset management, DAW integration, and fully automated control via the free Minitaur editor software

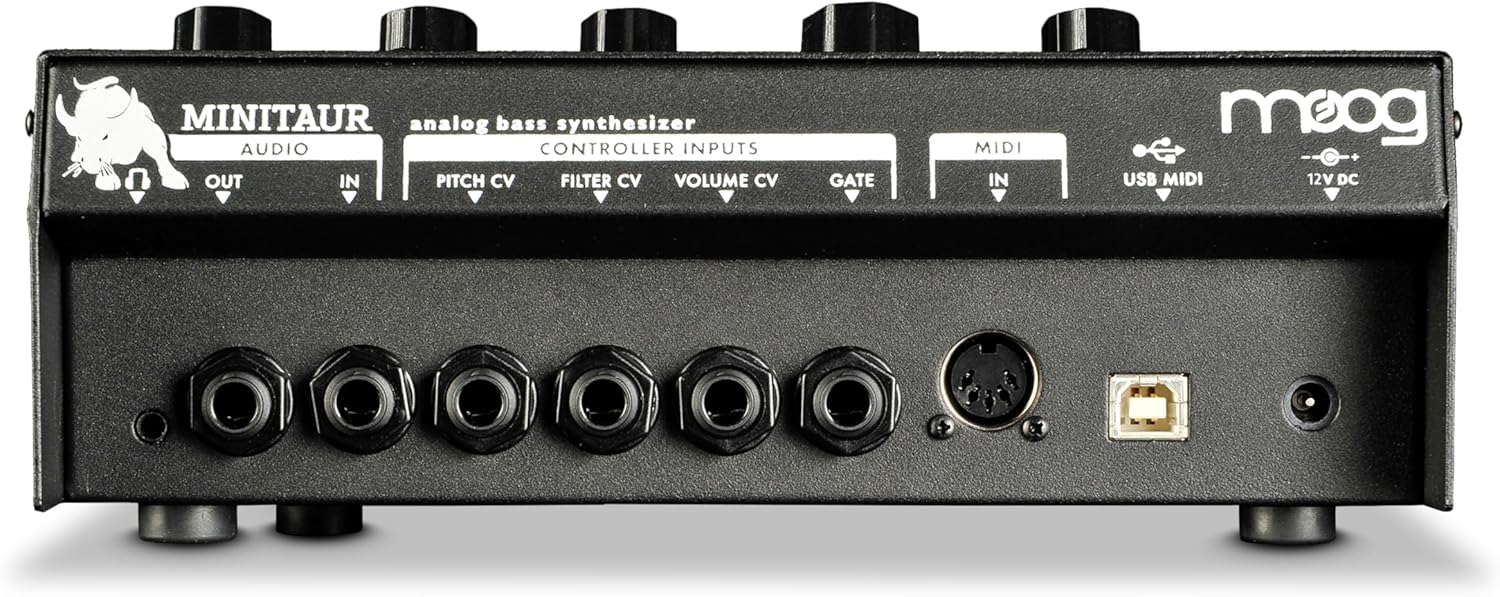

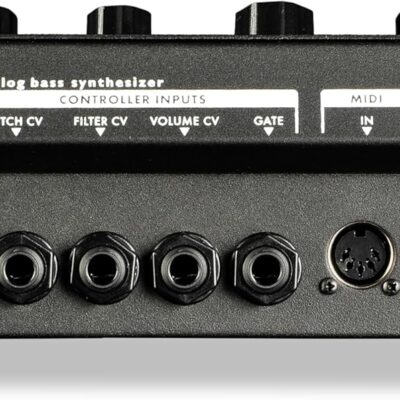

• Full Connectivity: MIDI In, USB, Audio In/Out, Headphones, and 4 Control Voltage inputs
