A Limitless Canvas of Musical Exploration An Adventure for Years to Come

With 16 banks of 16 patches, you’ll encounter beautiful pads, organic FM plucks, attention-grabbing leads, subterranean basses, stage-oriented key splits, as well as 2 banks reserved for your own sonic discoveries.

A Melting Pot of Classic and Futuristic

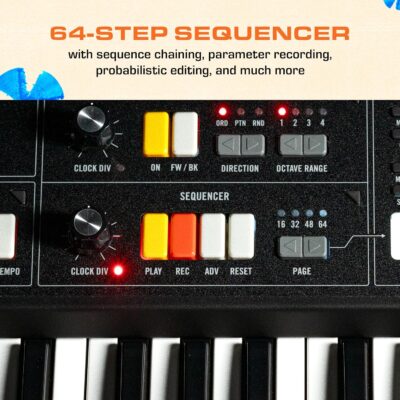

The powerful arpeggiator invites you to generate melodic ideas with compelling rhythms. With Muse’s deep sequencer, you’ll unravel unique patterns and gestures — further develop them with parameter recording, generative/probabilistic functions, and detailed editing of every note in the sequence.

Muse Specs

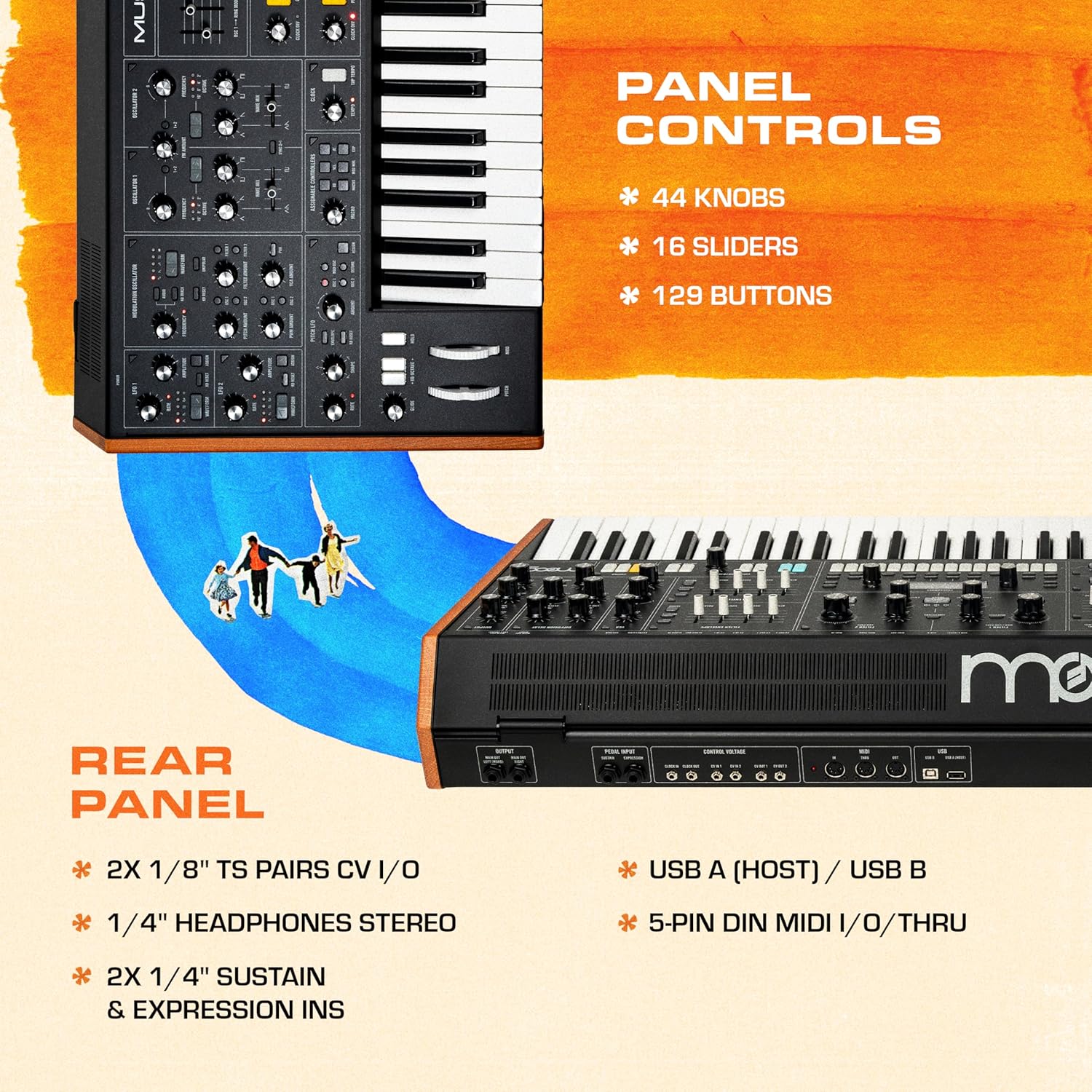

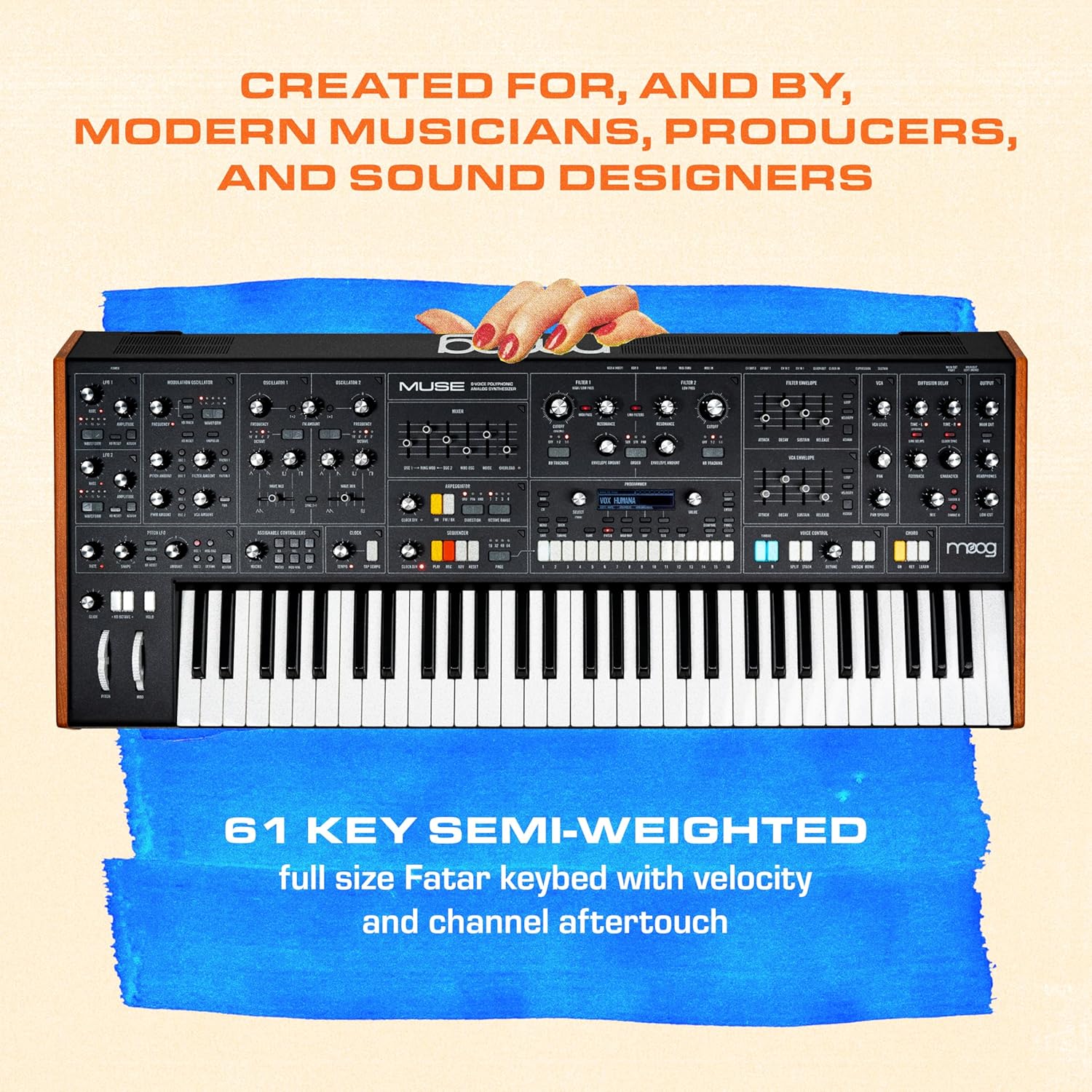

Synthesizer Type Polyphonic, Bi-timbral Analog Synthesizer Polyphony 8 Voices Keybed 61 full-size semi-weighted Fatar keybed with Velocity and channel Aftertouch Controllers Pitch Wheel, Modulation Wheel, Macro Knob, Keyboard Octave switch, Hold switch, Sustain Pedal input, Expression Pedal input – all pedal functions are assignable Panel Controls 44 knobs, 16 sliders, 129 buttons – OLED screen Analog VCOs (x2) Selectable Triangle/Sawtooth mix, variable width Pulse wave, Octave (16’, 8’, 4’, 2’), Frequency (+/- 7 Semitones), Wave Mix (blends Triangle/Sawtooth with variable Pulse wave), FM routing and amount, Hard sync Analog Ring Modulator Ring modulation between Oscillators 1 and 2 Analog Modulation Oscillator Selectable waveform (Sine, Sawtooth, Reverse Sawtooth, Square, Noise), Audio range toggle switch, Keyboard tracking, Keyboard reset, Unipolar switch, Pitch Modulation routing and amount, Filter Modulation routing and amount, Pulse Width Modulation routing and amount, VCA Modulation amount, Panning switch Analog Noise Generator White noise Analog VC Mixer Independent level control for OSC 1, OSC 2, RING, MOD OSC, and NOISE. Overall OVERLOAD control Analog VC Filters (x2) Moog transistor ladder filters (1 with highpass/lowpass modes), Cutoff Frequency, Resonance, KB Tracking Amount, Envelope Amount, Linked Operation, Routing (Series, Parallel, Stereo) Envelopes (x2) Attack, Decay, Sustain, Release, variable curves per stage, Multi-trig, Loop, Velocity Analog VC Amplifier Volume per Timbre, Pan position per Timbre, Pan Spread per Timbre Diffusion Delay Configurable stereo signal processor, Delay Time Left, Delay Time Right, Feedback, Character, Mix, analog bypass switches (to maintain 100% analog signal path) Dimensions W/D/H Inches 39 x 17 x 4.5 Weight Pounds 32

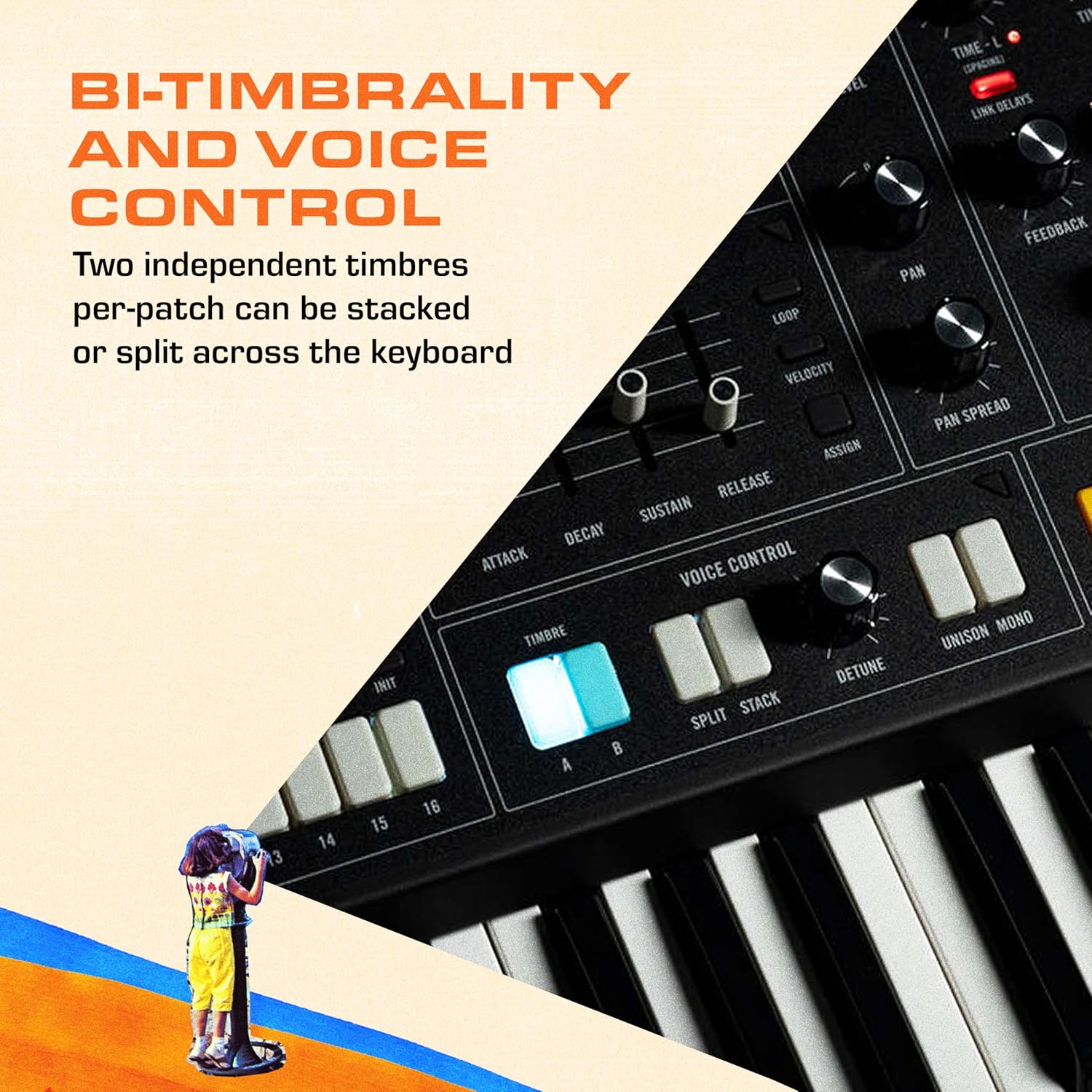

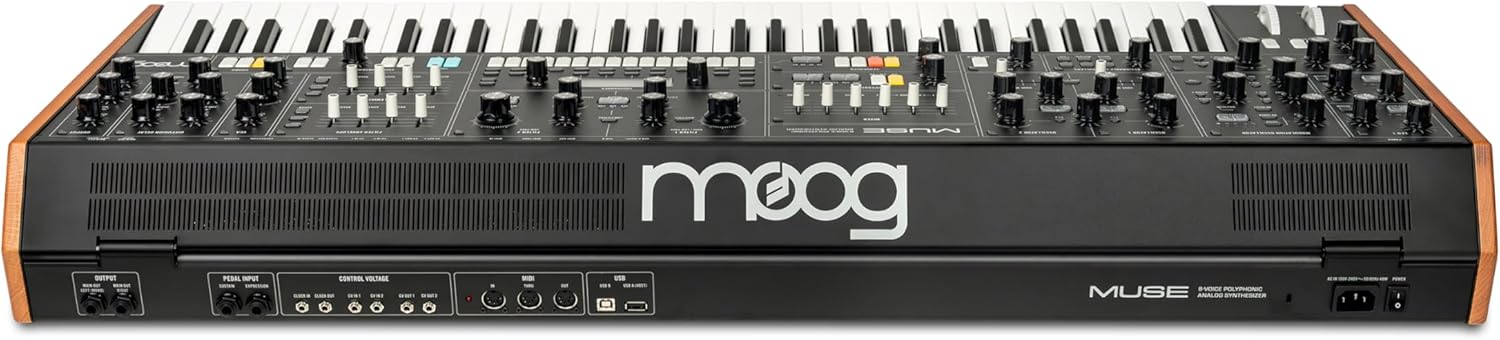

OUTPUT SECTION LFO (x2) Rate, Amplitude, Waveform selection (Triangle, Sawtooth, Square, Sample-and-Hold, User customizable), Keyboard Reset Pitch LFO Rate, Ramp Down through Triangle to Ramp Up Shape control, One-Shot Envelope toggle, Keyboard Reset, Pitch Modulation routing and amount Arpeggiator Per-timbre with Clock Division, Octave range, Pattern, Direction, Gate time, Rhythmic programming, etc. Sequencer 64-step sequencer with Clock Division, Transport controls, Sequence chaining, Step editing, Modulation capabilities, and memory capacity of 16 banks of 16 sequences Programmer Browser via OLED screen with 16 banks of 16 patches, Mod Map, Arpeggiator settings, Sequencer with per-step settings, Global settings, etc. Voice Control Mono or poly voice count per timbre, Unison/Mono, Detune, Timbre editing, Voice stealing configuration MOD MAP 16 modulation slots per timbre per patch with controllers and mathematical transform functions REAR PANEL Audio Outputs Main Left, Main Right (¼” TRS), Headphones (¼” located on the front edge of the Left Hand Controller) Pedal Inputs Sustain, Expression (¼” TRS; Configurable through Mod Map or for use as ¼” TS CV inputs) Control Voltage I/O Inputs: CV IN 1, CV IN 2 (1/8” TS); Outputs: CV OUT 1, CV OUT 2 (1/8” TS) Analog Clock I/O CLOCK IN (1/8” TS); CLOCK OUT (1/8” TS) MIDI 5 Pin DIN MIDI IN, OUT, THRU; MIDI over USB USB B USB-B connector for interfacing with a computer or other host MIDI device USB A (HOST) USB-A connector for connecting to other instruments with Muse as the MIDI host

From the brand

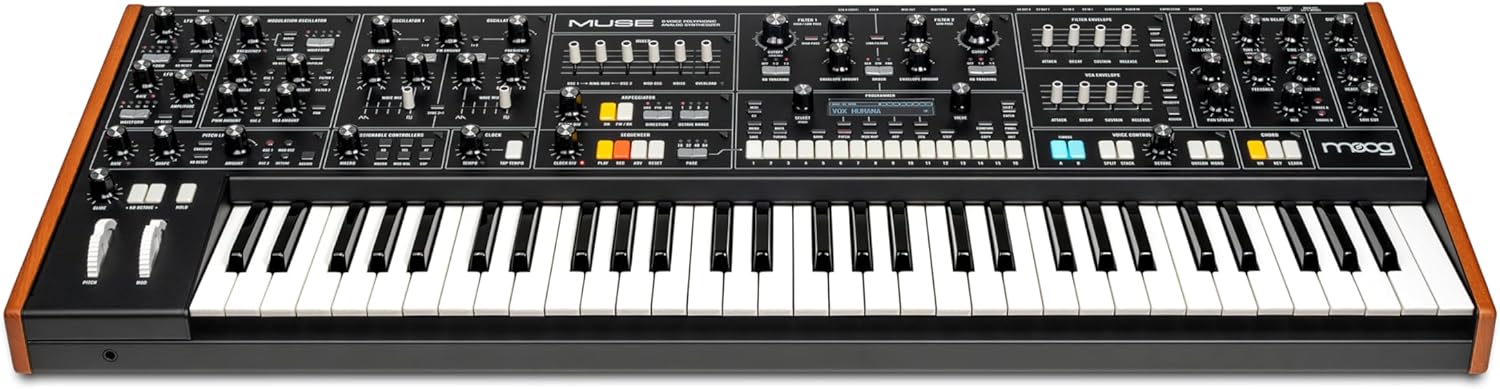

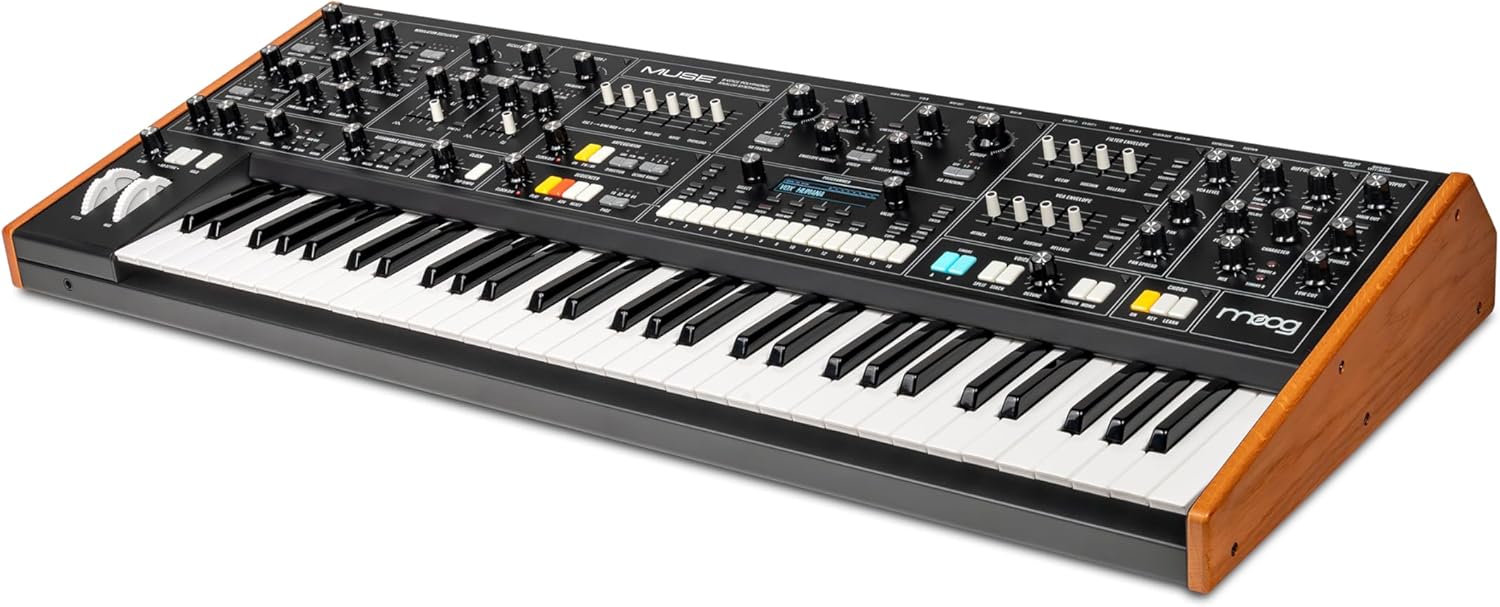

• Your Muse – Both studio and performance centerpiece, driven by 8 analog voices, each with two VCOs, a modulation VCO, dual VCFs, and a stereo VCA, all with that recognizable, kinetic analog quality
• Inspired by Classics – Muse combines discrete oscillators, brought together by a saturating mixer, dual transistor ladder filters and stereo discrete VCAs, all inspired by MOOG Modular circuits
• Performance-Focused Controls – Created for all modern musicians, producers, and sound designers, Muse features an intuitive knob-per-function layout and ‘More’ menus for every module

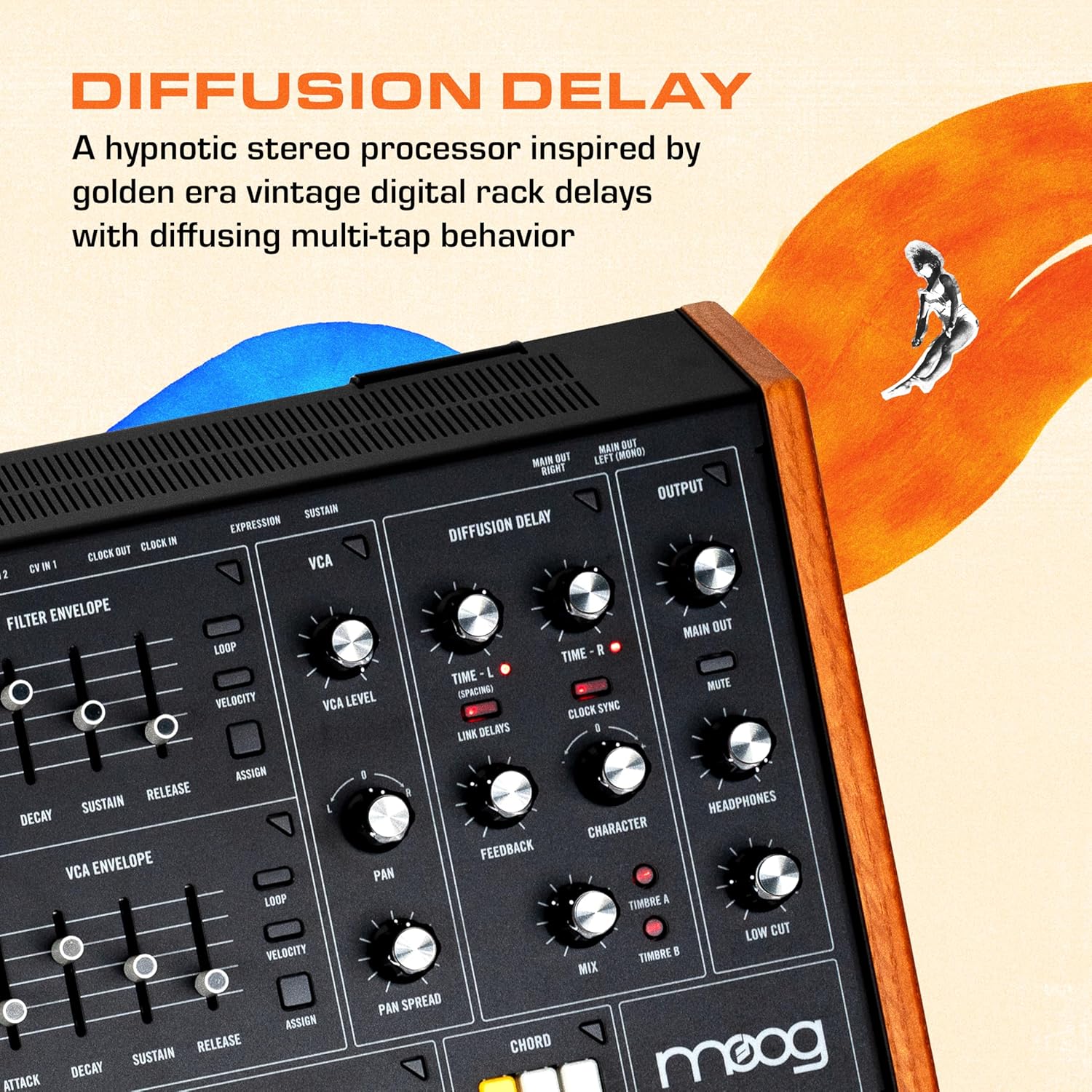

• Mesmerizing – A stereo Diffusion Delay processor with a powerful set of diffusion, multi-tap and filter behaviors; craft complex echoes and diffused tonal smears for added dimension and depth

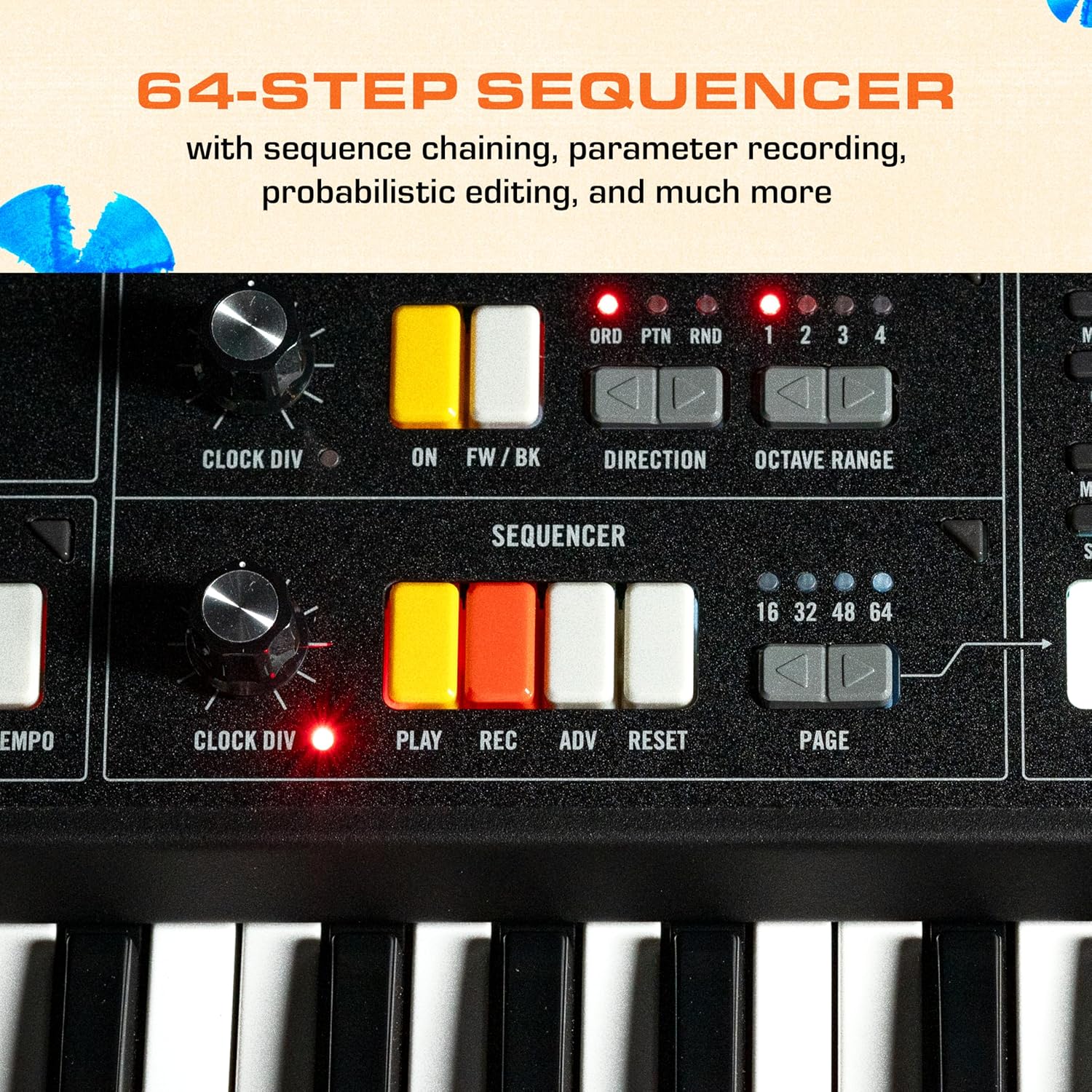

• Stage to Studio – A powerful arpeggiator, chord memory and a polyphonic sequencer provide deep editing capabilities and generative behaviors that fuel musical expeditions

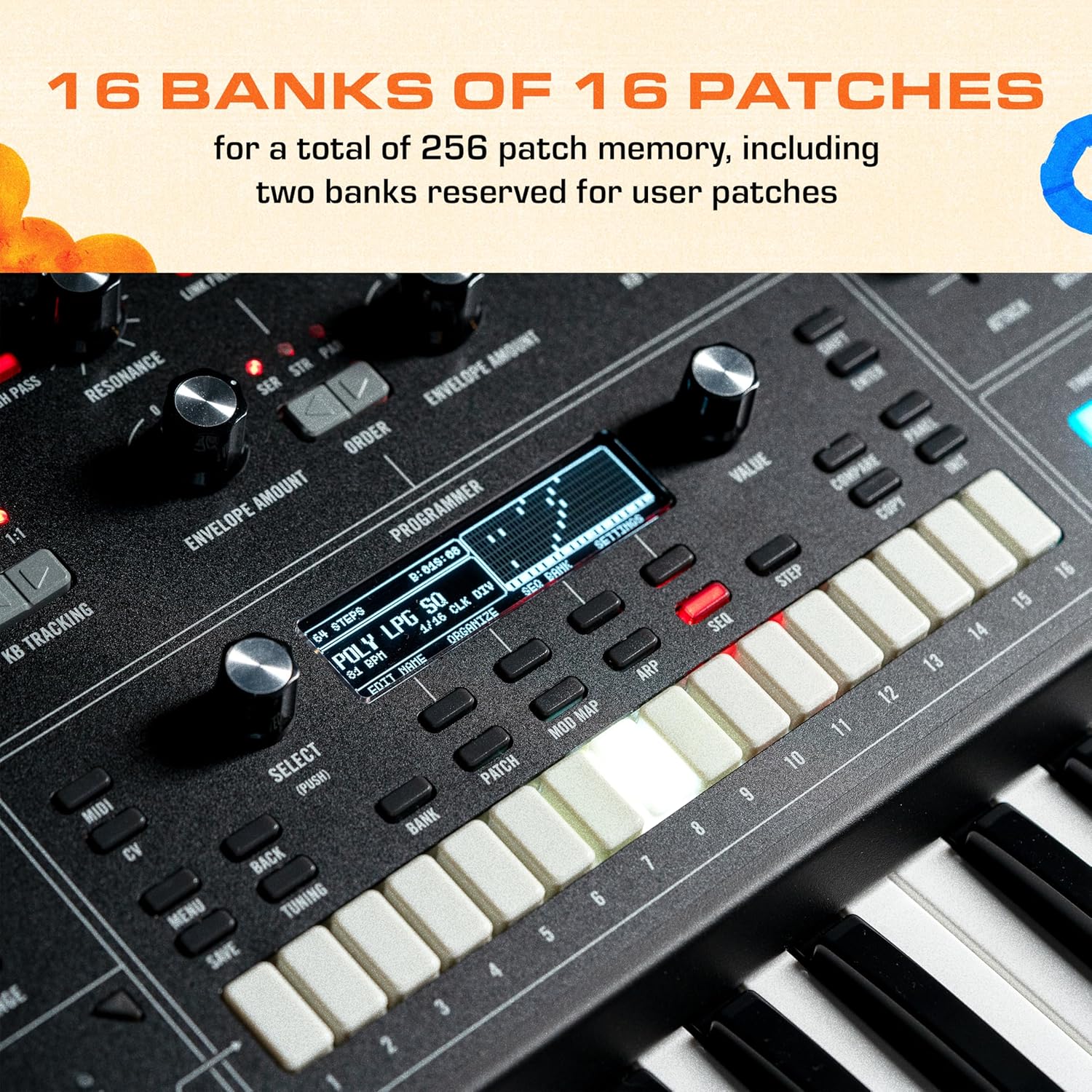

• 64-Step Sequencer – 16 banks of 16 patches for a total of 256 patch memory; Muse ships with 224, leaving two banks reserved for user patches
• In the Box – MOOG Muse 8-Voice Polyphonic Analog Synthesizer; IEC Cable; Quick Start Guide; Registration Card; Safety & Warranty Manual
