Description

From the manufacturer

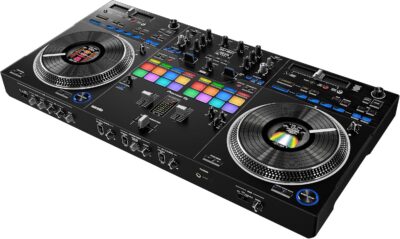

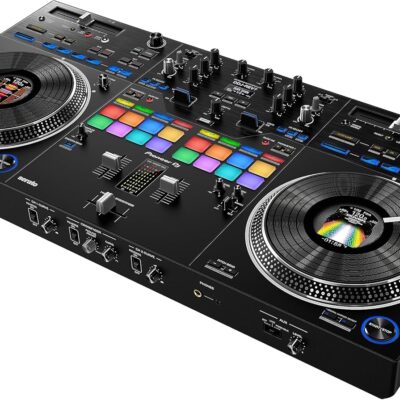

DDJ-REV7

EXPAND YOUR REVOLUTION

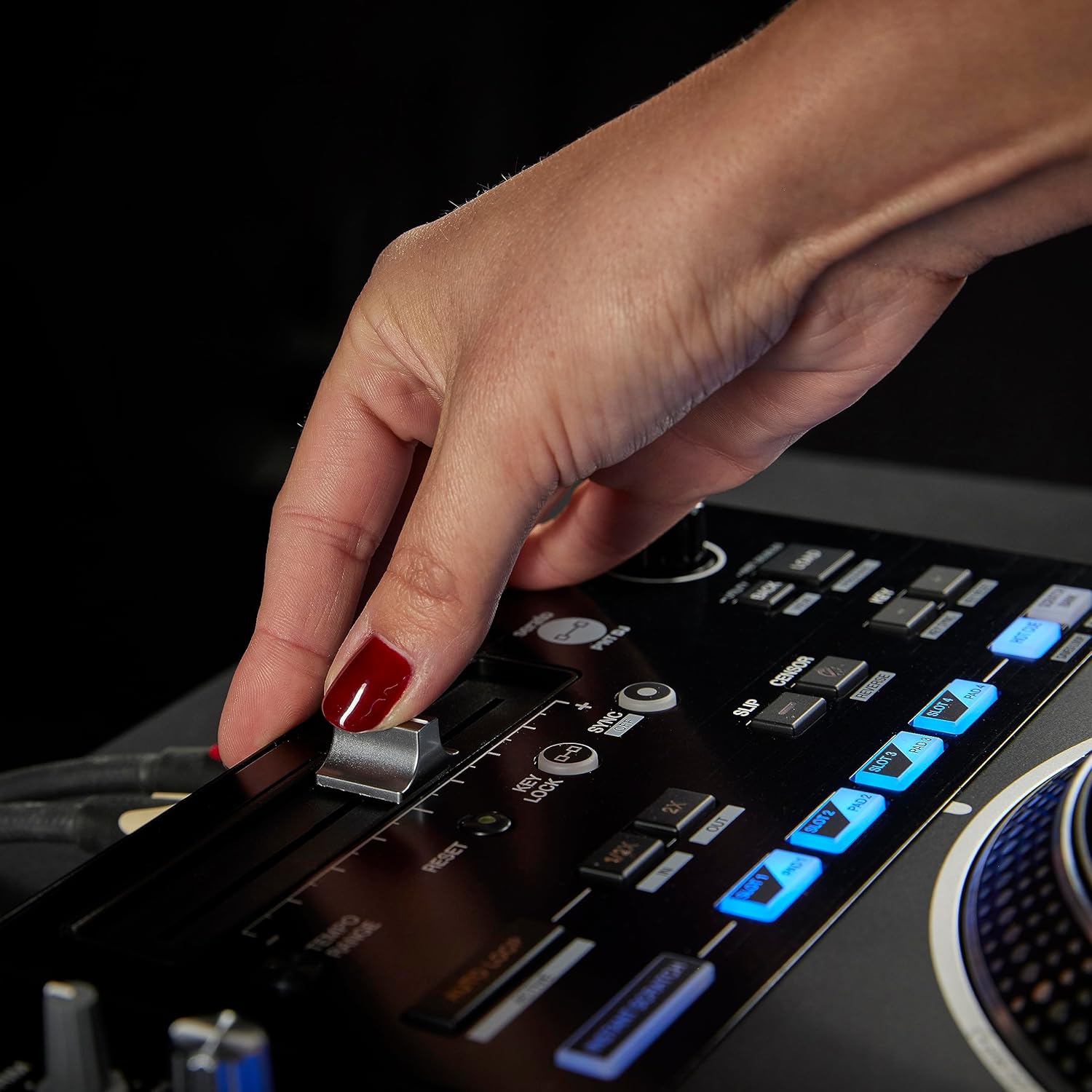

The DDJ-REV DJ Controller Series is an ideal solution for open-format and scratch DJs as it emulates a professional DJM-S mixer and PLX turntable setup. For the first time ever on a Pioneer DJ controller, the tempo sliders sit horizontally on the top of the deck sections to mirror PLX turntables in a battle configuration, while the Performance Pads and Lever FX paddles sit in the mixer section to parallel the DJM-S Series mixer design.

Unlike a traditional DJ controller, the DDJ-REV7 enables artists to replicate the analog mixing experience with its motorized 7-inch VINYLIZED JOG wheels. The jog wheels feature customizable settings and two slip sheets included inside each deck to allow artists to experiment with torque and friction. The acrylic top plate is uniquely finished to feel like a real analog record, and includes a spin treatment to easily catch on artists’ fingertips.

In the center of each jog wheel is a 3.5-inch On Jog Display — delivering essential information to artists such as track waveforms, Hot Cues and playback positions. The On Jog Display features omnidirectional viewing angles for clear readability, regardless of an artist’s viewing angle. The DDJ-REV7 also inherits Pioneer DJ’s renowned Magvel Fader Pro for a slick and accurate response while scratching.

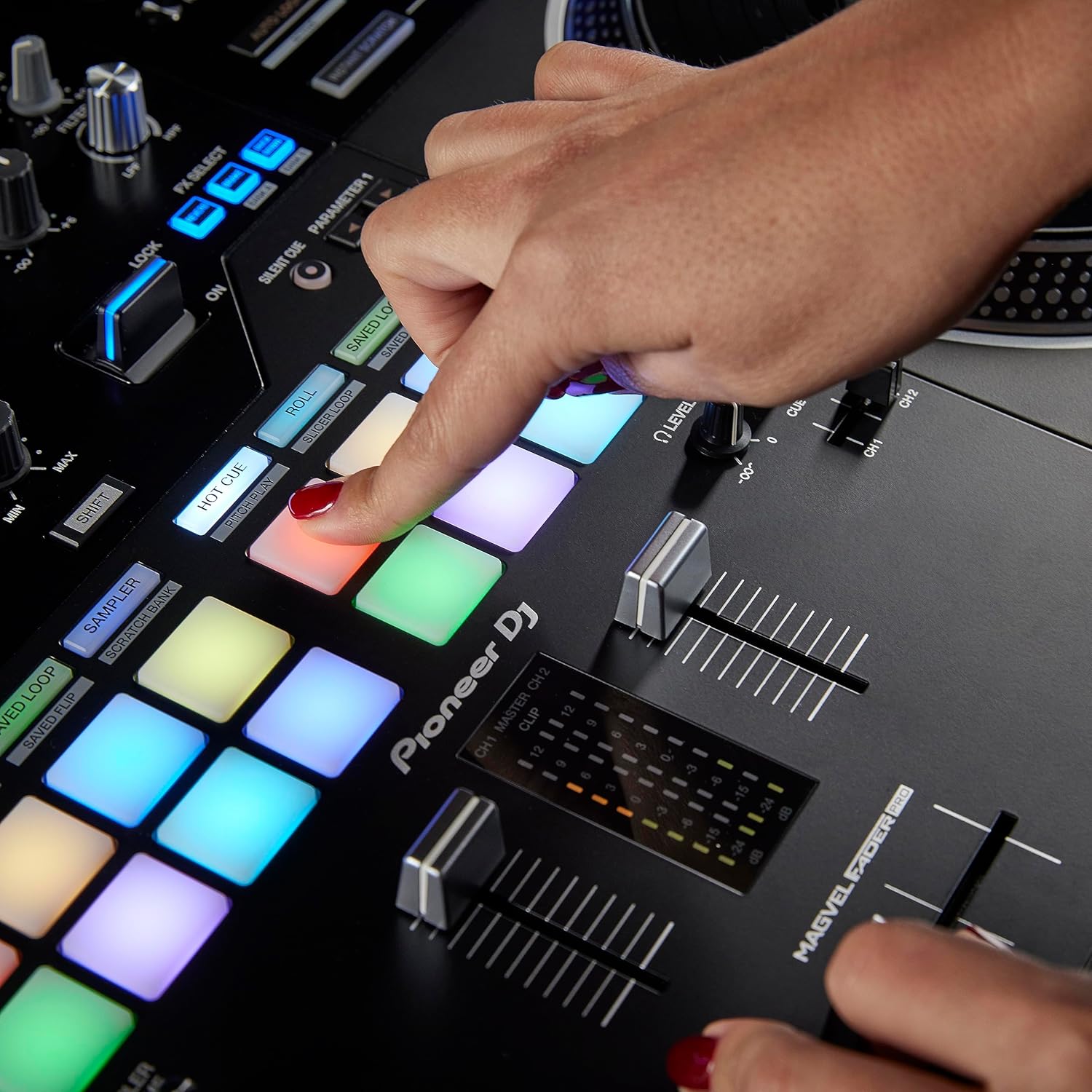

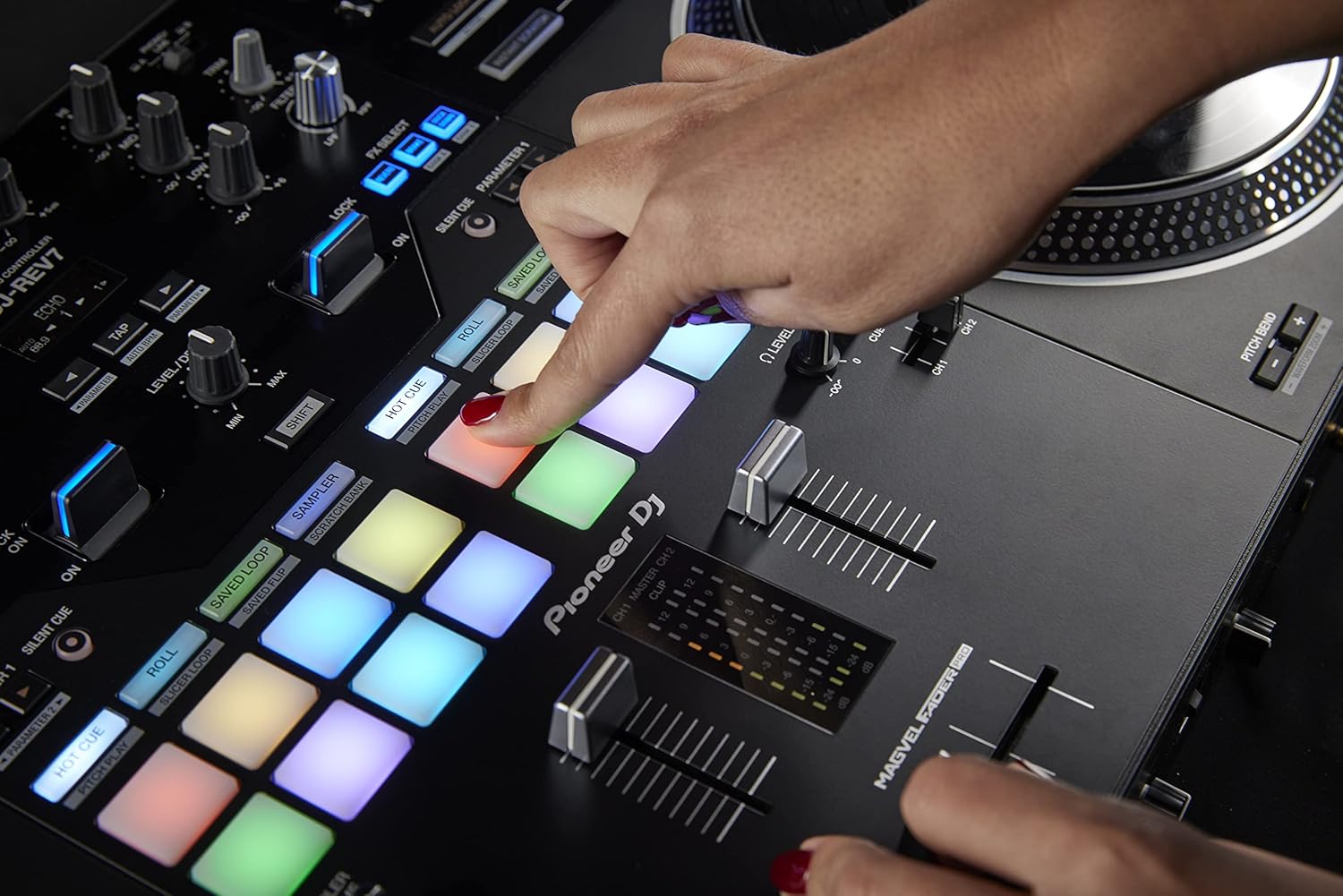

Sampling during scratching is now exceptionally streamlined thanks to the DDJ-REV7’s new Instant Scratch buttons. The Instant Scratch buttons, complete with four original samples, are a built-in controller feature, making them accessible to artists without needing a laptop. Artists looking to drop their own samples, even full tracks, can do so by loading samples into the Serato DJ Pro Scratch Bank and tapping the Performance Pads.

The DDJ-REV7 has 22 Beat FX’s including 3 brand-new ones and five Sound Color FX for dramatic and texturized performances. The new controller also features advanced audio components and produces the highest level of sound quality in the entire Pioneer DJ controller range.

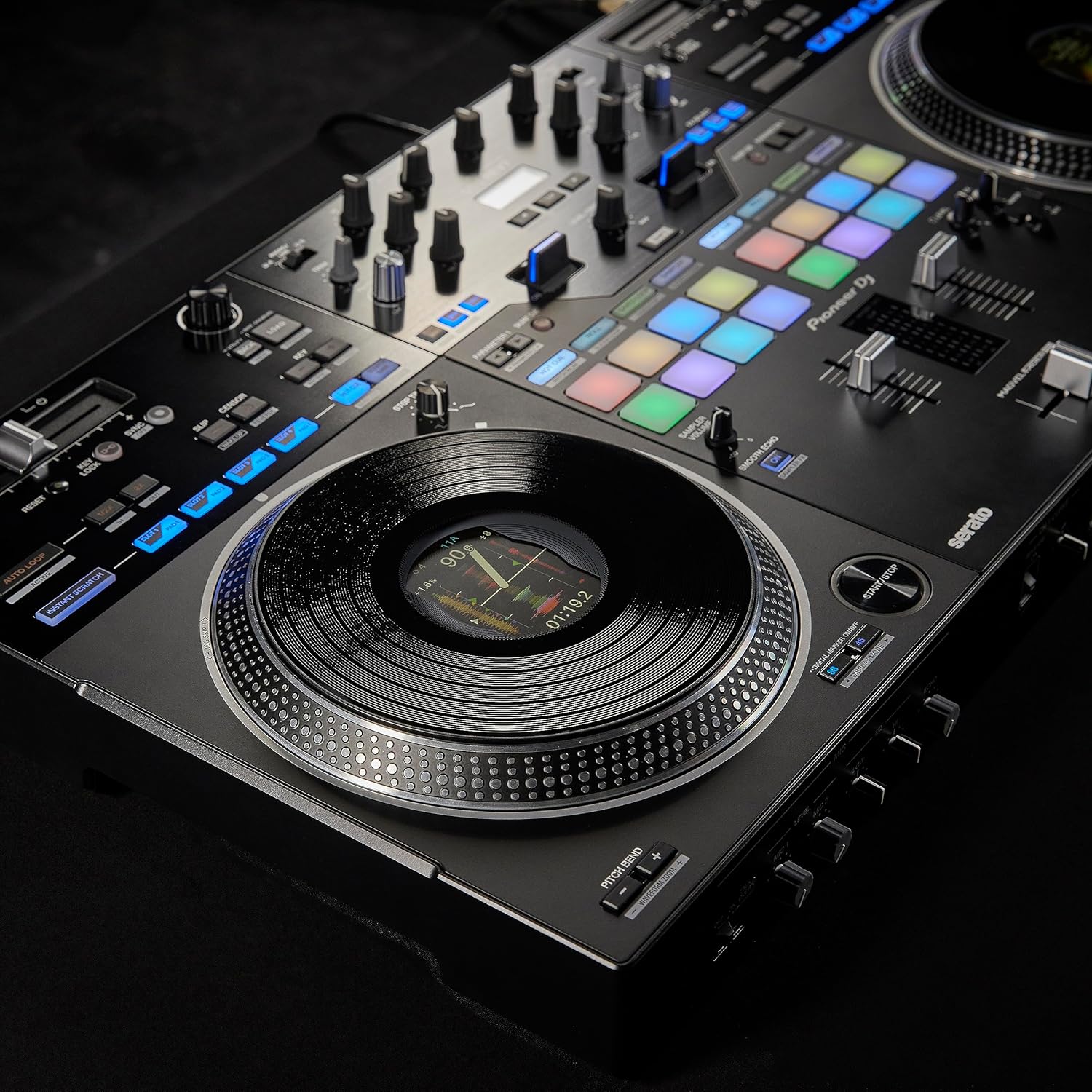

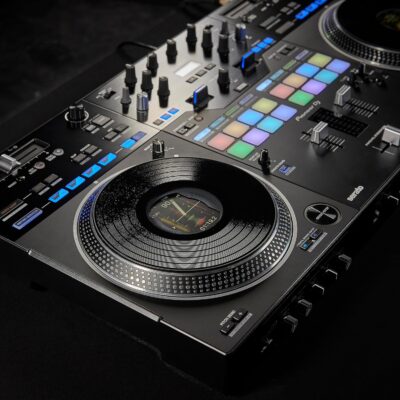

Brand-new motorized, VINYLIZED JOG

At the heart of each deck on the DDJ-REV7 are the new 7-inch motorized jog wheels, featuring the same rotational stability as a 12-inch turntable and recreating the feel of real vinyl records. The jog wheels acrylic top plate is finished with a vinyl-like texture for an effortless finger grip. Artists can choose between low- and high-torque settings and use the two included slip sheets inside each deck which fit neatly inside the jog wheel to find their preferred amount of friction. With the DDJ-REV7, manipulating and fading out sound is simple. Artists can switch between a rotation speed of 33⅓ or 45rpm anytime and use the Stop Time setting to adjust how long it takes for the music to end when pressing pause. Artists can also halt the music immediately or slow it down gradually, as if the power on an analog deck was turned off.

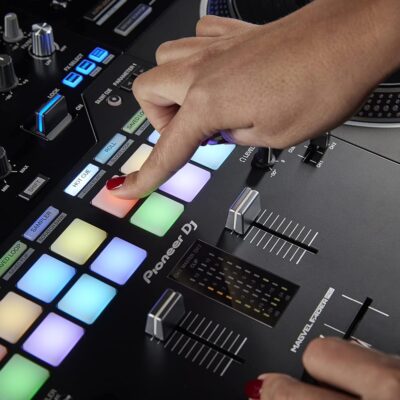

Instant Scratch: Rapidly fire samples with dedicated buttons

The DDJ-REV7 has 4 original scratch samples that you can trigger by pressing the corresponding hardware buttons. Because the sounds are built in, you can fire them at any time – even if the controller isn’t connected to your laptop. If you want to use your own samples in your set, you can instantly load scratch samples from 4 banks that you’ve assigned in Serato DJ Pro with the Scratch Bank feature.

DDJ-REV7 Scratch freely

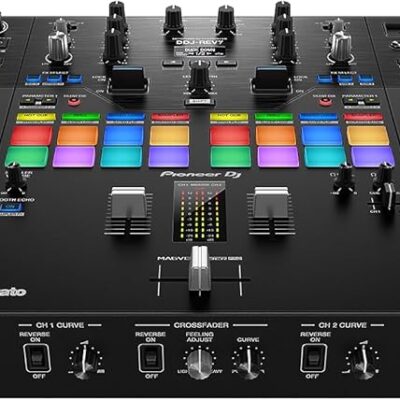

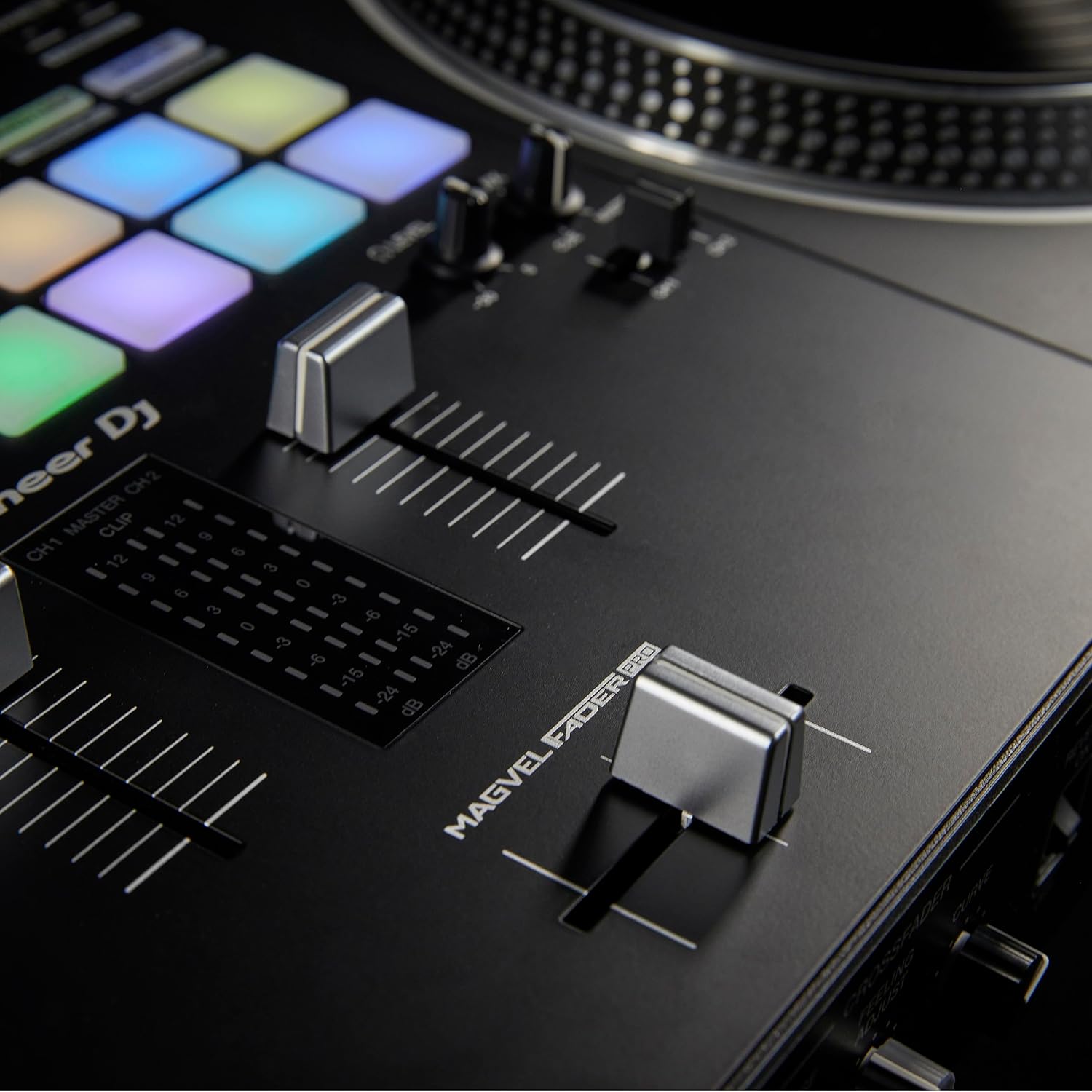

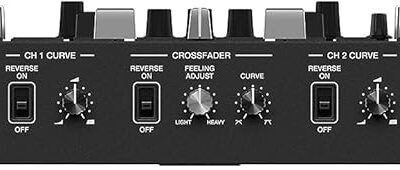

MAGVEL FADER PRO

Scratch with style and confidence when you use the MAGVEL FADER PRO. As well as being highly robust, it’s customizable with various settings to help you find the feel that’s right for you.

22 built-in Beat FX

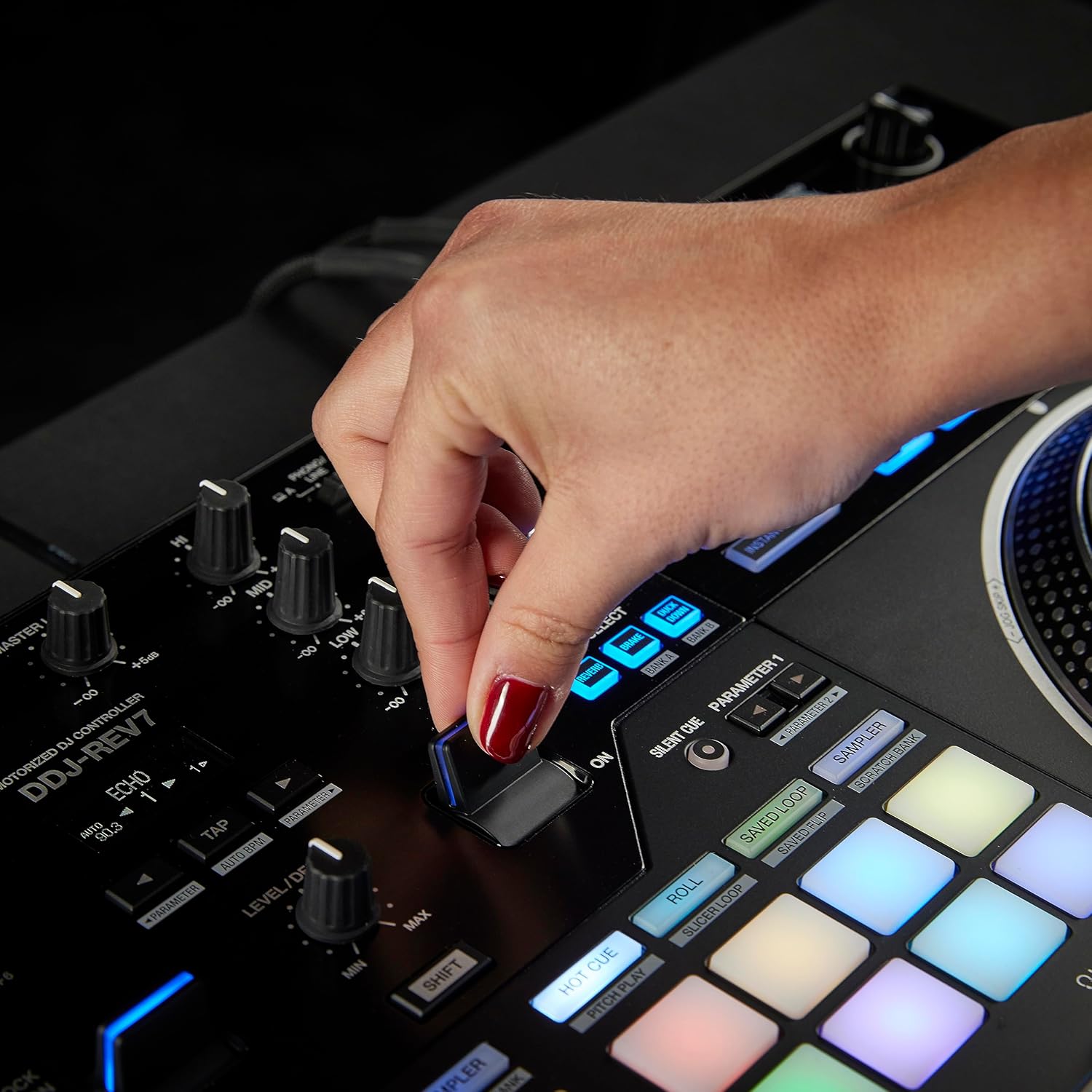

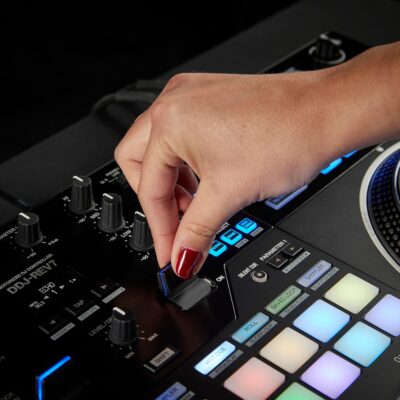

Add drama to your track transitions with the 3 brand-new Beat FX. In total there are 22 Beat FX which you can trigger with the dedicated controls (New Beat FX: Duck Down, Fill Out and Helix Out). You can also pull the effects levers down and hold them to apply effects from Serato DJ Pro in short bursts, or push them up to lock effects on and free up your hands for scratching or track browsing.

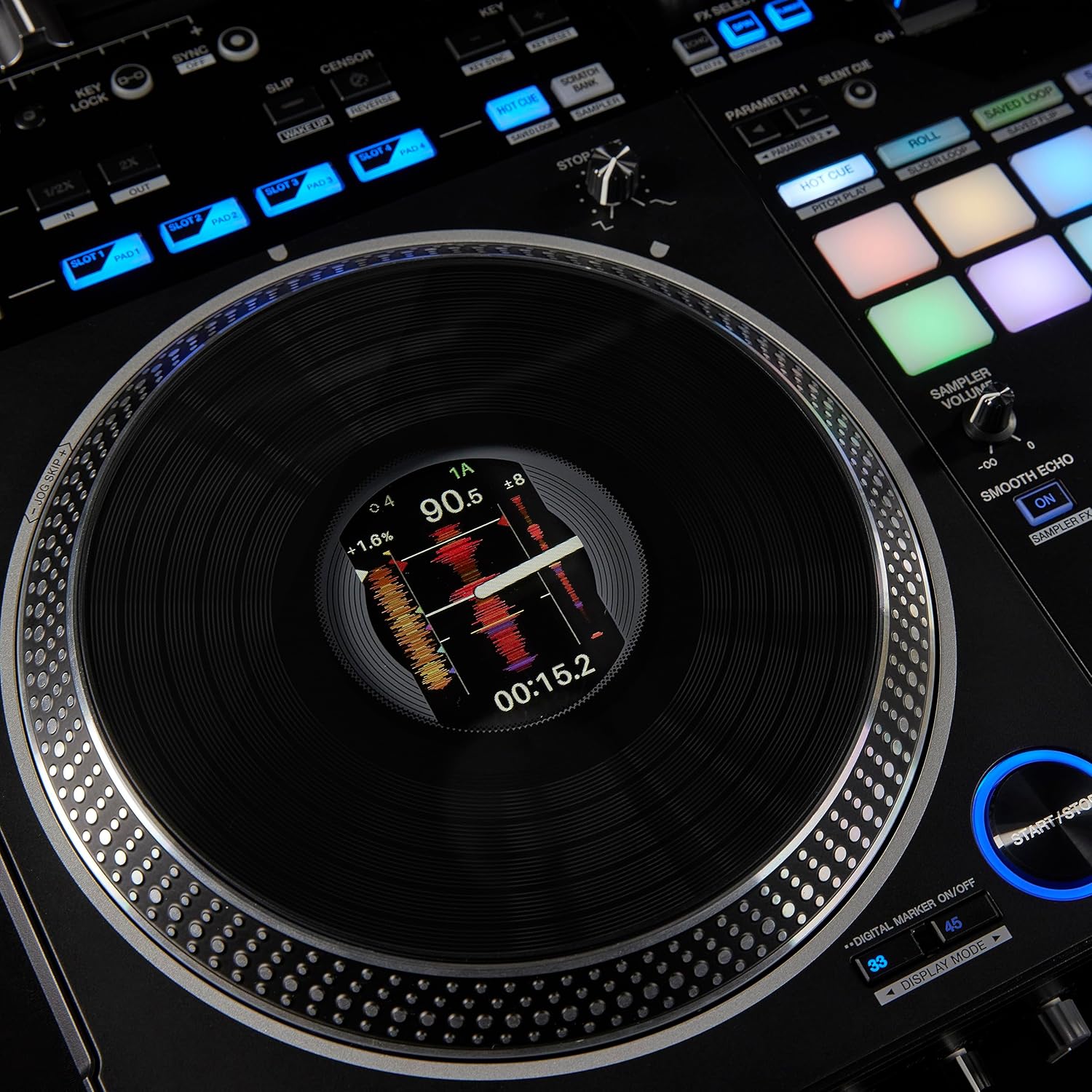

On Jog Display

In the center of each jog wheel, a 3.5-inch LCD keeps important information at your fingertips so there’s far less need to switch your gaze between the decks and your laptop. Thanks to an omnidirectional viewing angle, you can see what’s being displayed from any angle, and you can turn off the digital marker that indicates the playback position whenever you want. You can also mark each jog wheel with the included stickers if you prefer this method to the digital marker.

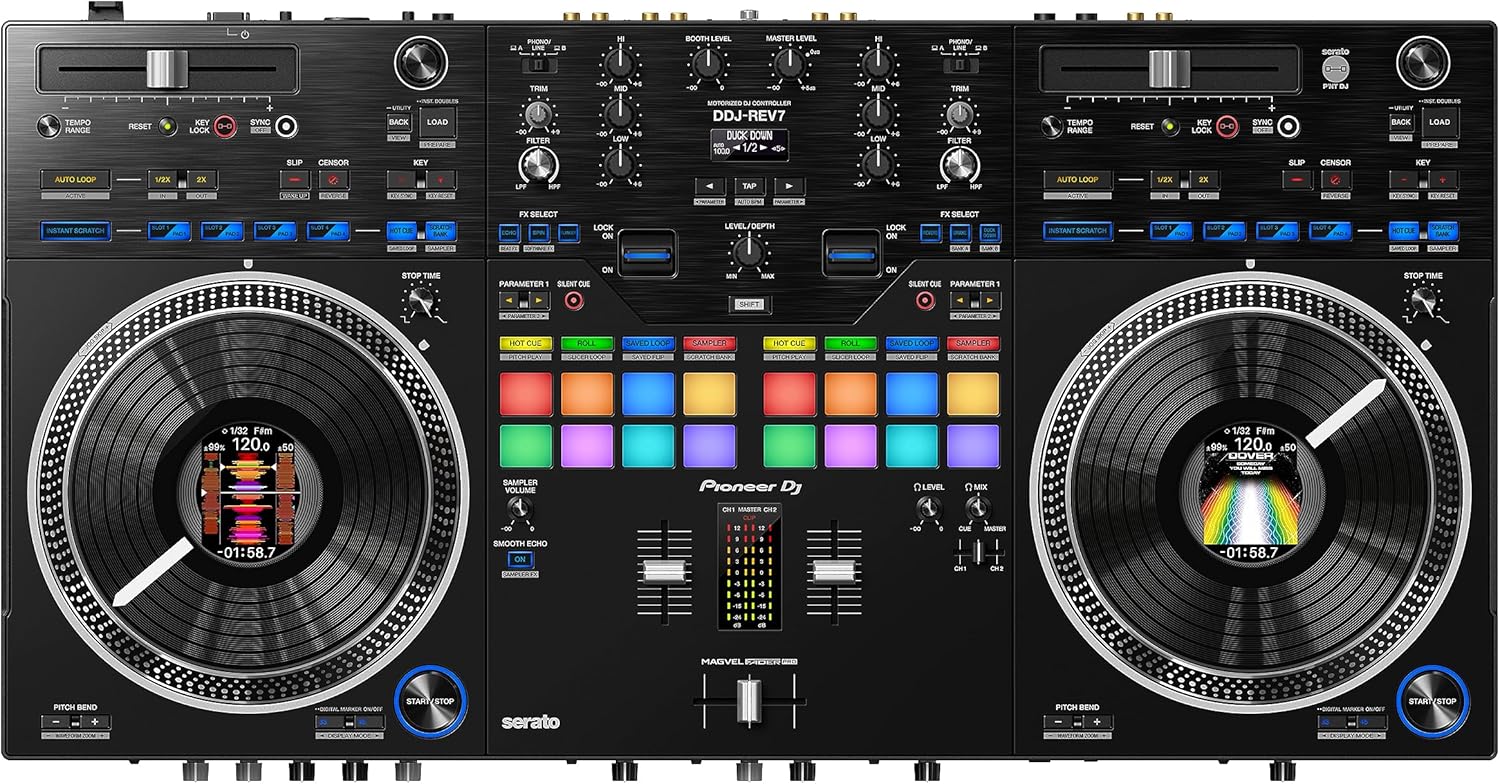

Portable, sophisticated design

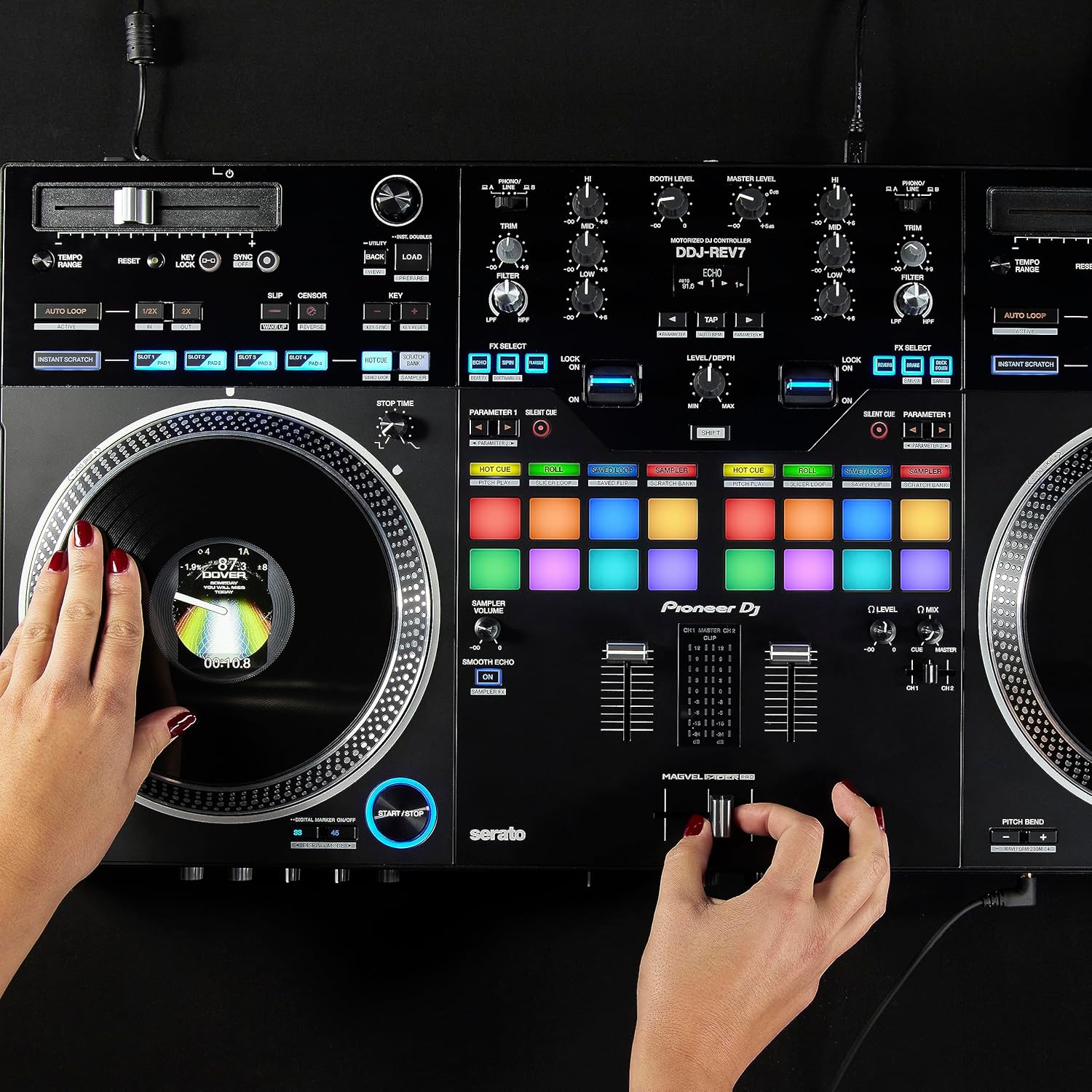

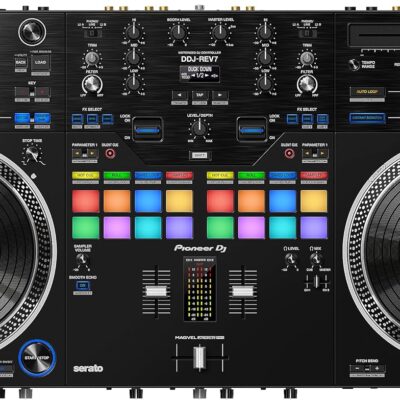

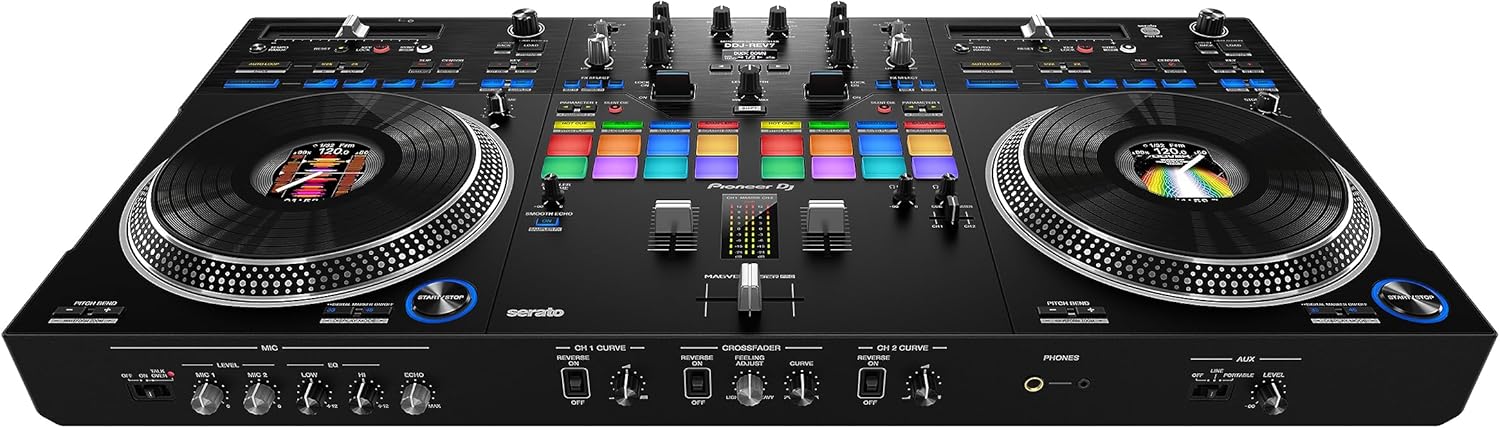

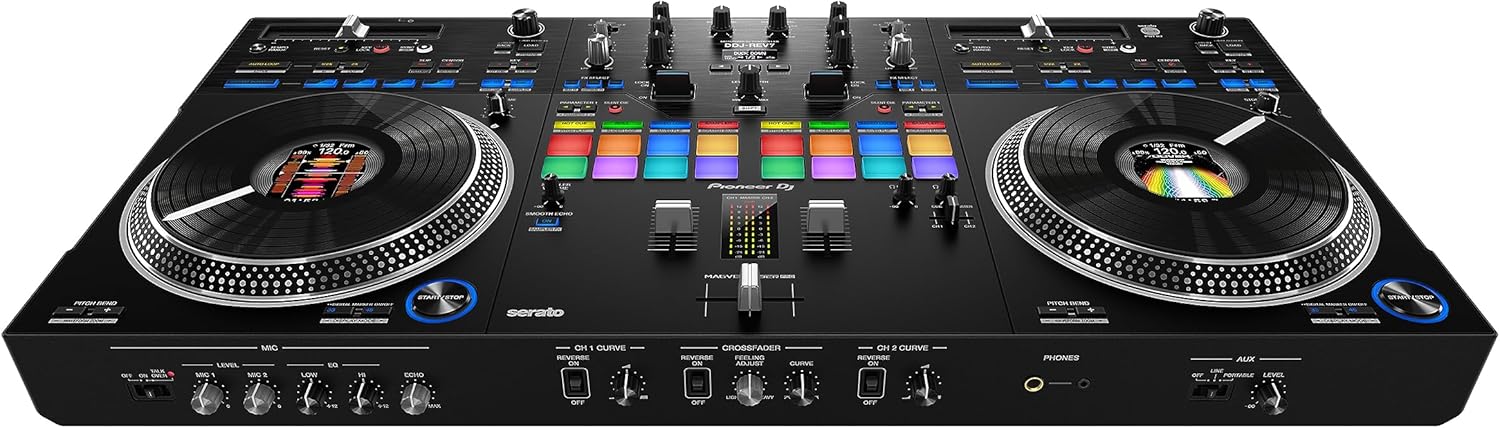

The DDJ-REV7 is solid and robust, yet still lightweight enough to grab by the handles on the chassis and carry to your next gig. Contrasting matte and hairline finishing in different sections of the aluminum top plate create distinction between the deck and mixer sections, so the layout looks like a traditional 2 x turntable + mixer setup, while the On Jog Displays mimic the label in the center of a vinyl record.

Specifications

What’s in the Box DDJ-REV7 AC adaptor Power cord USB cable Quick Start Guide Precautions for use Serato DJ Pro Expansion Pack Voucher (Serato Pitch ‘n Time DJ) Marking Sticker Terminals

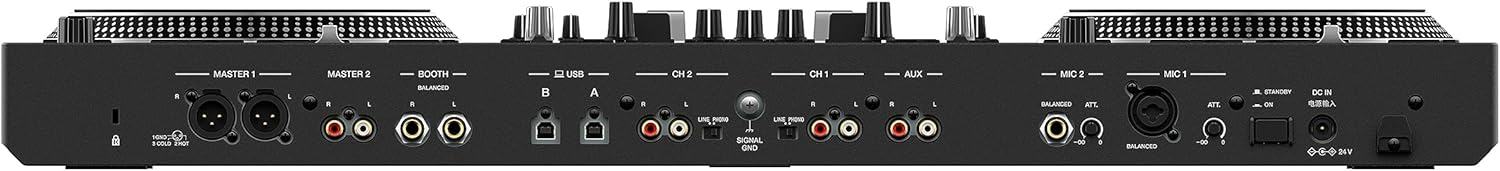

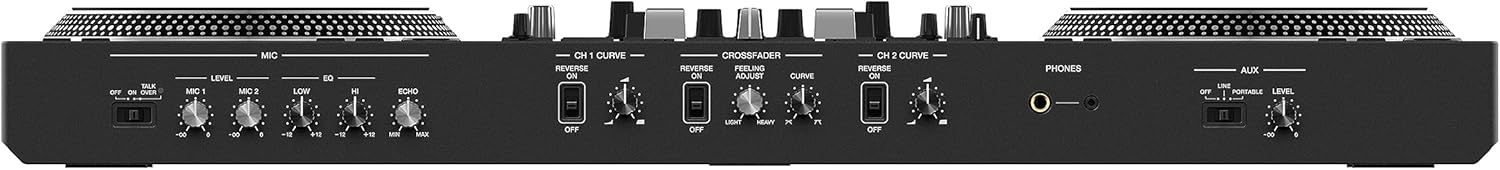

Inputs

2 PHONO/LINE (RCA)

2 MIC (XLR & 1/4 inch TRS Jack, 1/4 inch TRS Jack)

1 AUX (RCA

Outputs

2 MASTER (XLR, RCA)

1 BOOTH (1/4 inch TRS Jack)

2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)

USB 2 USB B ports

Main Features

Compatible DJ Software Serato DJ Pro

DVS Control Serato DVS (Paid upgrade)

Channels 2

Deck Control 2

Beat FX Echo

Time Sweep Echo

Ducking Echo

Width 732 mm

Height 82.4 mm

Depth 382.2 mm

Weight 10.7 kg

Soundcard 24 bit/48 kHz

Frequency Range 20 – 20000 Hz

Signal-to-Noise Ratio 110 dB (USB)

Distortion < 0.003 % (USB)

Power Consumption DC 24 V, 1 000 mA

Jog Wheel 175 mm (Top plate) 207 mm (Platter)

• ELEGANT DESIGN: Features a brand-new motorized jog wheel with similar rotational stability to a 12-inch turntable
• EFFORTLESS: Designed with an acrylic top plate constructed with a vinyl texture for ideal finger grip during a sesh
• DEPENDABLE: Enjoy information at your fingertips with the On Jog Display that showcases a 3.5-inch LCD in the center of each jog wheel
• ACCESSIBLE: Utilize the instant scratch button to trigger four original scratch samples at any time during a performance
• FEATURES: DJ in style with the Magvel Fader Pro, which provides customizable settings that will have you feeling confident
