Description

From the manufacturer

DDJ-REV7-N

EXPAND YOUR REVOLUTION

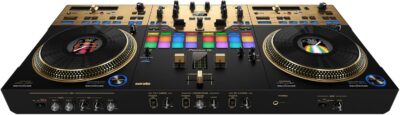

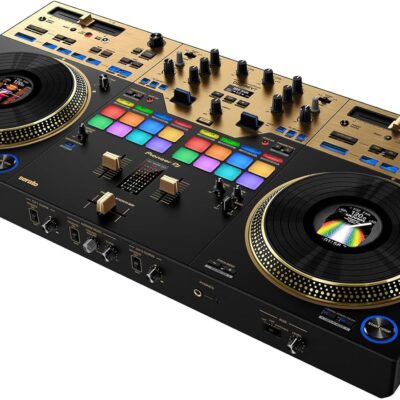

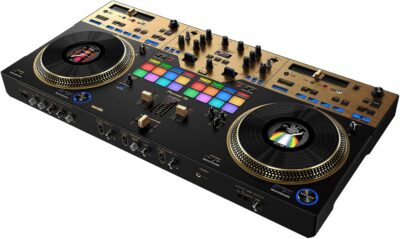

The DDJ-REV7-N is built to help you get the most from the Serato DJ Pro and rekordbox performance software and boasts a brand-new design that includes large, motorized jog wheels with On Jog Display to create a tactile connection between you and your music. The layout of this 2-channel unit emulates a professional DJM-S mixer + PLX turntable setup, and includes specialized features for open-format and scratch DJs.

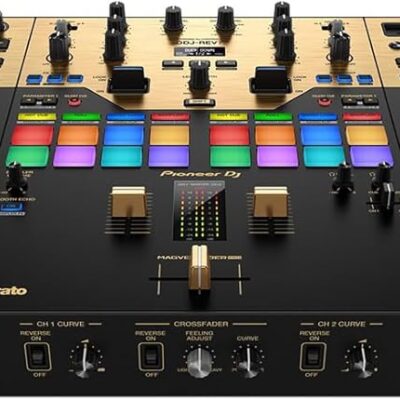

Large jog wheels and MAGVEL FADER for dynamic scratching

The large jog wheels are responsive, reliable, and easy to operate – with a feel just like those on classic CDJ units – and they each include a display with playhead position so you’ll always know where you are in the track. You can also customize the Jog Feel to find your perfect jog wheel “weight”. The MAGVEL FADER is slick, robust, and ready to translate every tiny movement you make so you can scratch with precision.

VINYLIZED JOG: Customize the feeling

The acrylic top plate is finished with a vinyl-like texture for effortless finger grip, and you can choose between low and high torque settings and use the two slip sheets included inside each deck to find your preferred amount of friction. Switch between a rotation speed of 33⅓ or 45rpm whenever you like and use the Stop Time setting to adjust how long it takes for the music to end when you press pause.

Waveform mode

See the overall waveform of the track on that deck, plus the detailed waveforms of the tracks on both decks side-by-side to help you make quick, intuitive adjustments. You’ll also have an eye on the BPM, playback speed (tempo), remaining or elapsed time, digital marker for the playback point (which you can turn off), and the number of beats in the loop when one is playing.

Virtual Deck mode

View the virtual deck and the number of beats to the next Hot Cue point.

Artwork display

Display the artwork for the track that’s playing.

DJ Logo display

Display your own logo or favorite image on each deck after using the Image Transfer Tool for PC/Mac to load it onto the DDJ-REV7.

Specifications

What’s in the Box AC adaptor Power cord USB cable Quick Start Guide Precautions for use Serato DJ Pro Expansion Pack Voucher (Serato Pitch) Marking Sticker DDJ-REV7-N Terminals

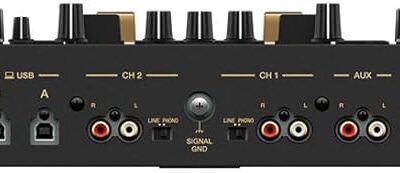

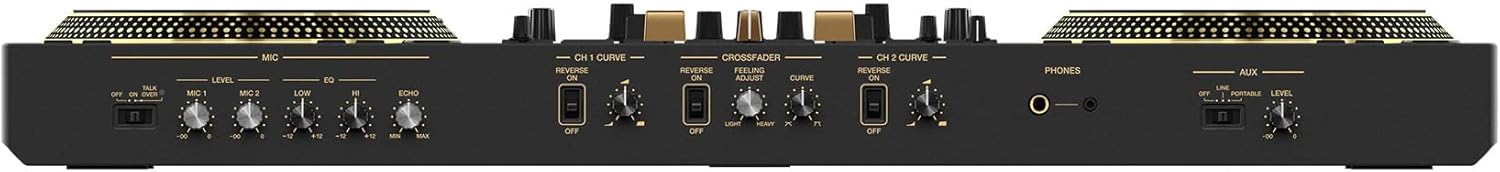

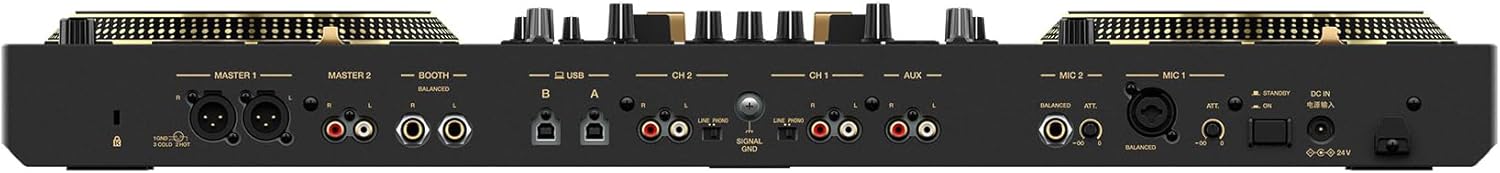

Inputs : 2 PHONO/LINE (RCA)2 MIC (XLR & 1/4 inch TRS Jack, 1/4 inch TRS Jack)1 AUX (RCA)Outputs : 2 MASTER (XLR, RCA)1 BOOTH (1/4 inch TRS Jack)2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)USB : 2 USB B ports

Main Features

Compatible DJ Software : Serato DJ ProDVS Control : Serato DVS (Paid upgrade)Channels : 2Deck Control : 2Color on jog display : YesTJog Wheel : 175 mm (Top plate) Specifications

Width : 732 mmHeight : 82.4 mmDepth : 382.2 mmWeight : 10.7 kgSoundcard : 24 bit/48 kHzFrequency Range : 20 – 20000 HzSignal-to-Noise Ratio : 110 dB (USB)Distortion : < 0.003 % (USB)Power Consumption : DC 24 V,1000 mA

• Large jog wheels and MAGVEL FADER for dynamic scratching
• On Jog Display: Keep an eye on essential information
• Instant Scratch: Rapidly fire samples with dedicated buttons
• 22 built-in Beat FX including 3 new additions: Dynamically change the sound
• Portable, sophisticated design: Take your performances anywhere
