Description

Product description

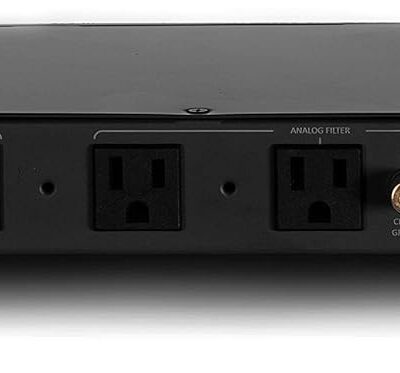

PMX-3300 Power Conditioner/Surge Sequencer with LED Voltmeter Display & Pullout Light

Power-up in 3 delayed outlet groups from zone 1 to zone 3 as Digital, Analog and High Power Filtered outlets. Zones are powered off in reverse sequence, which is a excellent feature for Home Audio, Instrument Rigs, Recording Studio or Pro Audio/DJ equipment with power amplifier/speaker and preamp/mixer application.8 Rear-Panel Outlets for switched & 2 Front-Panel outlets for un-switched, total 15 Amp rating with circuit breakerComes with multi-stage noise filtering for reduces frequency interference RFI & Electromagnetic Interference EMI, It will provide a stable power and good circuit protection to your system.Front panel LED indicators shown Zone status, Wiring Fault, Abnormal Voltage, Breaker Open and Incoming AC line voltageA single super-bright retractable long-life low-heat LED lights with high/low/off switch for rack illumination

Digital, Analog and High Power Filtered outlets & Removable Rack-Mounted Ear

Comprehensive, Reliable & Stability

The PMX-3300 is a power conditioner and sequencer with excellent feature including multi-stage noise filtering for reduces frequency interference RFI & Electromagnetic Interference EMI. Specifically designed and engineered to provide a stable power and good circuit protection to your system.

Power-up in 3 delayed outlet groups from zone 1 to zone 3 as Digital, Analog and High Power Filtered outlets. Zones are powered off in reverse sequence, which is a excellent feature for Home Audio, Instrument Rigs, Sound Recording Studio or Pro Audio/DJ equipment with power amplifier, active speaker and preamp/mixer application.

The swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer switch lets you adjust the lamp brightness to just the right level.

Retractable Pullout LED Light

A single super-bright retractable long-life low-heat LED lights with high/low/off switch for convenient rack illumination.

Multi-Stage Noise Filtering

Comes with multi-stage noise filtering for reduces frequency interference RFI & Electromagnetic Interference EMI, It will provide a stable power and good circuit protection to your system.

Digital LED Meter Display Incoming AC Line Voltage

Front panel LED indicators shown Zone status, Wiring Fault, Abnormal Voltage, Breaker Open and Incoming AC line voltage.

Features:

– Power-up in 3 delayed outlet groups: 3 x Digital Filtered, 3 x Analog Filtered, 2 x High Power Filtered outlets

– Power-down reverses sequence

– RFI Filtering with multi-stage PL filter

– Two unswitched outlets on front panel

– Circuit breaker – Rated 15 Amps

– Multiple units may be linked to handle higher currents

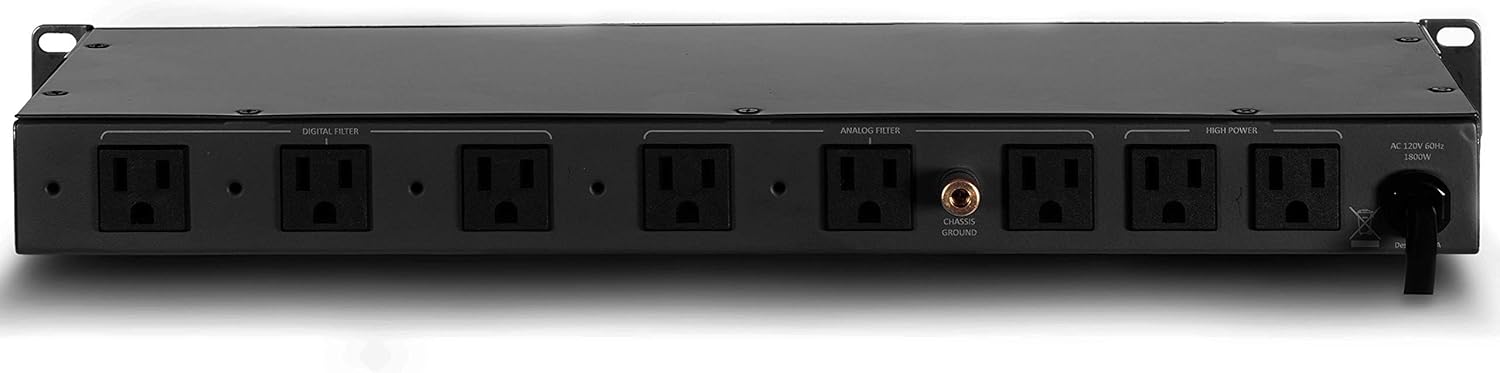

– Three pairs of switched outlets on rear panel

– Front panel digital LED meter display incoming AC line voltage

– A single super-bright, retractable, long-life, low-heat LED lights with high/low/off switch for rack illumination

Spec:

– Current rating: 15 A (1800W)

– Accessory Outlet: 8

– RMI/EMI: Yes

– Operating Voltage: 90 to 140 VAC Spike

– Protection Modes: Line to neutral, zero ground leakage

– Delay Interval: 5 seconds

– Response time: 1 nanosecond

– Maximum surge current: 6,500 amps

– Dimensions (WxDxH): 19” x 8” x 1.75” (483 x 203 x 44.5 mm)

• Surge Protection: The power conditioner provides surge protection to prevent damage to electronics.
• Safety Features: The product has 10 protected outlets and 3 surge-protected zones to ensure safe operation.
• Compact Design: The rectangular shape and LED display make this power conditioner easy to mount and use.
• Reliable Performance: The 15 amp rating provides reliable power for most household and office devices.
• Durable Construction: The black plastic housing is built to last for years of use.
