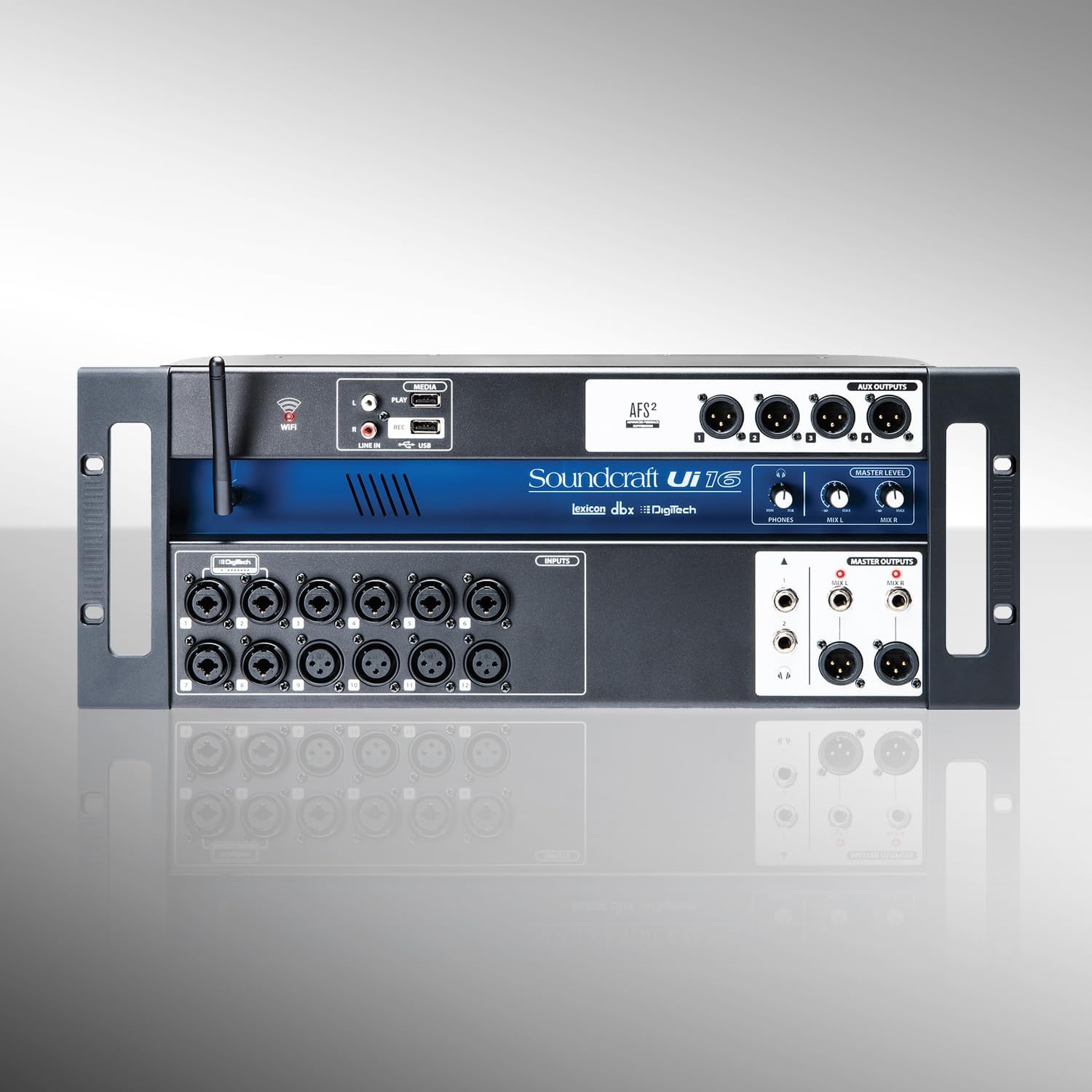

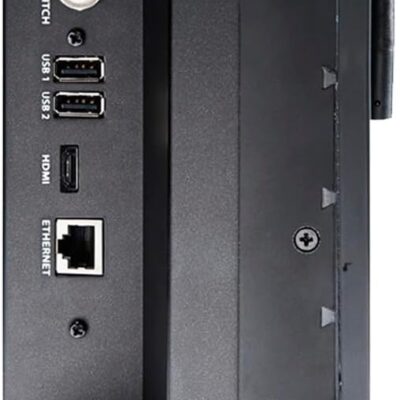

Soundcraft Ui16

Remote-Controlled 16-input Digital Mixer

The Ui Series mixers feature cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui12 and Ui16 each feature built-in Harman signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.

Both mixers offer 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. Built in are three dedicated Lexicon FX buses: Reverb, Delay and Chorus. In addition, mixer controls include Subgroups, Mute groups and View groups, among others. The Ui Series mixers feature full Show/Snapshot recall-ability with channel recall safes.

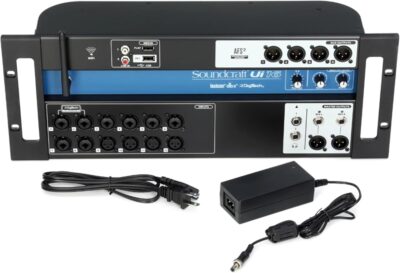

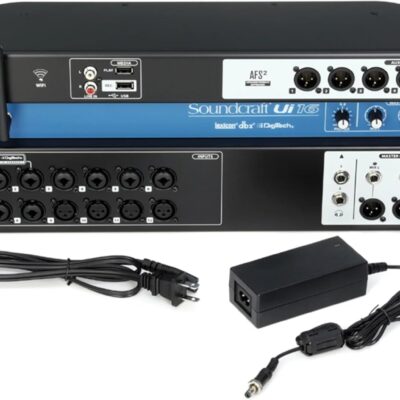

The Ui16 boasts eight XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with four balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs.

Tablet/PC/Smartphone Controlled Digital Mixer Integrated Wi-Fi Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices Use up to 10 control devices (tablets, phones, PCs) simultaneously Fully recallable and remote-controlled mic preamps Three dedicated Lexicon FX effects processors: Reverb, Delay and Chorus 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels

Powerful Digital Mixing with Any Device

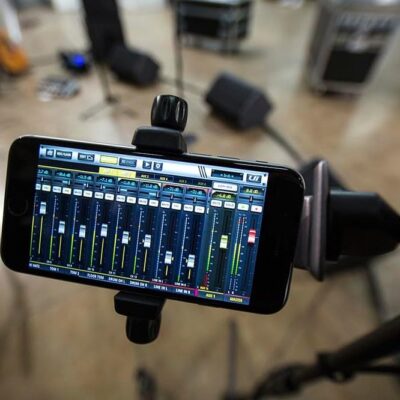

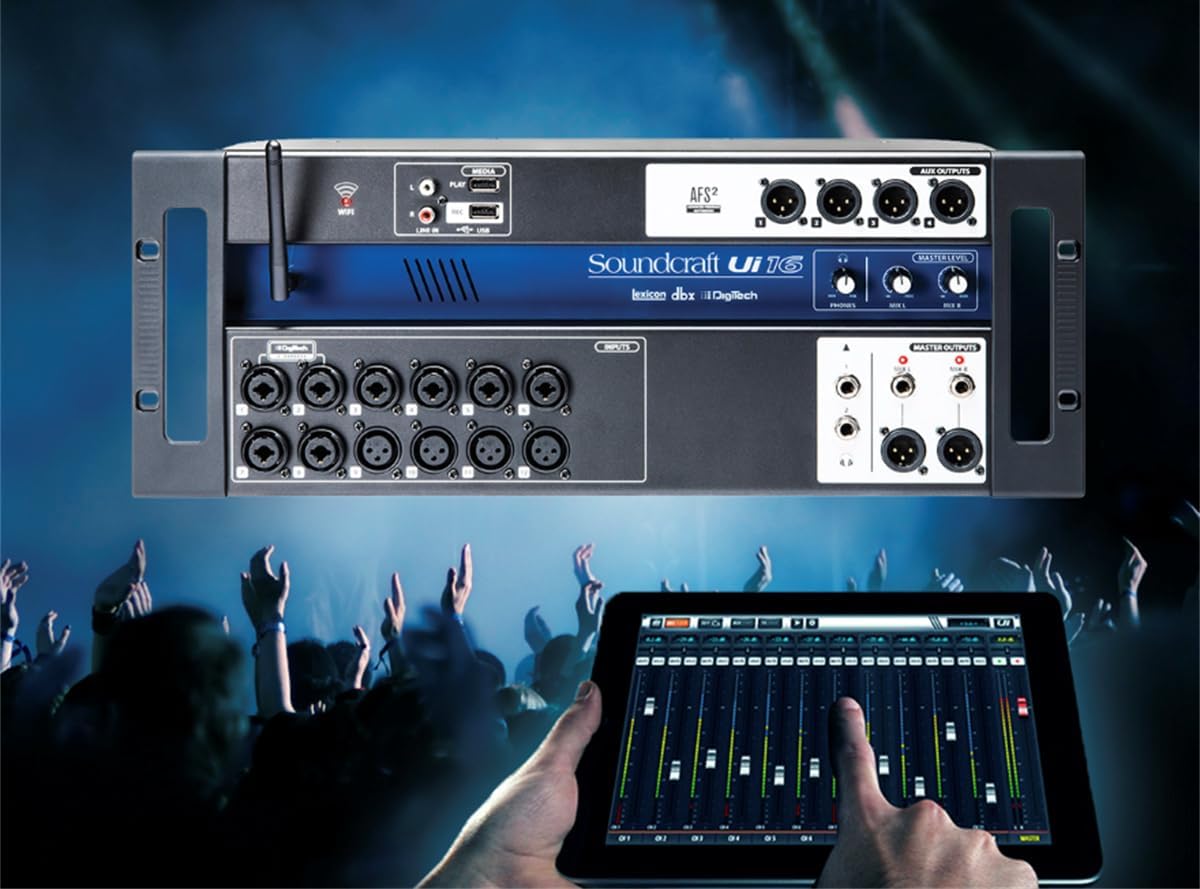

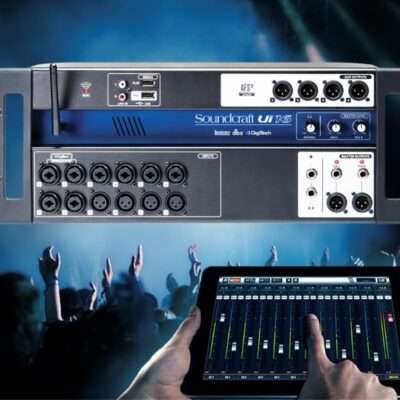

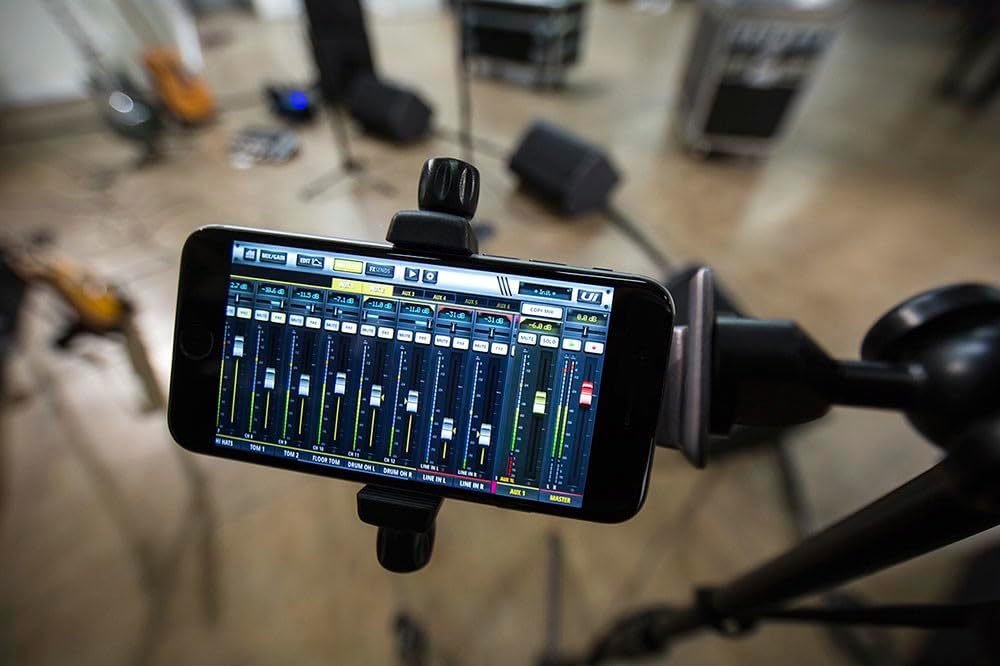

Tablet, PC, smartphone? Ui’s revolutionary browser-based interface lets you use any device, in any combination – regardless of platform. Ui is fully compatible with iOS, Android, Windows, Mac OS and Linux devices. Mix on a large format computer screen, adjust in front of house on a tablet, and set monitor mixes from smartphones…it’s up to you.

Save the Perfect Settings for Every Song

With Ui’s Snapshot recall system, you can create the perfect mix for a show, or even individual songs, and save the settings to be recalled at will. Need a subdued, effects-laden mix for the acoustic ballad? No problem, just call it up. Then hit recall to load in the settings for the full-tilt rock number that follows it up. With advanced password protected access limitation features, you can limit users to only the functions you allow them to change.

Uncompromised Connectivity

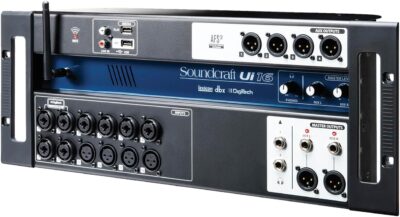

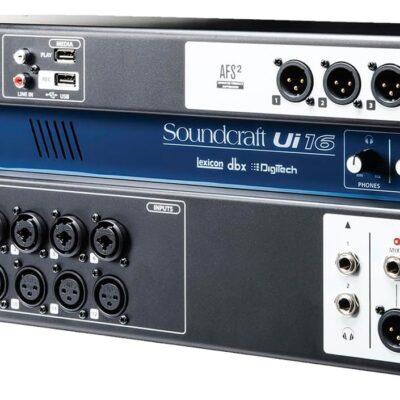

Ui hardware is loaded with all the connectivity you’ll need to run the show. XLR mic and combo inputs with fully recallable and remote-controlled mic pre’s, stereo RCA inputs and dedicated Hi-Z inputs, optimized for acoustic guitars, electric guitars and basses. Outputs include balanced XLR and 1/4” main outs, XLR auxiliary outs and headphone connectivity. There’s even USB connectivity for 2-channel playback and recording direct to USB storage devices.

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars 994

4.4 out of 5 stars 994

4.4 out of 5 stars 994

Price

— no data
$575.00$575.00 $1,274.15$1,274.15

Product Type
Remote-Controlled 12-Input Digital Mixer Remote-Controlled 24-Input Digital Mixer Remote-Controlled 24-Input Digital Mixer

Wi-Fi Router Onboard

✓

✓

✓

Ethernet Control

✓

✓

✓

Inputs
4 ¼” TRS/XLR combo, 4 XLR, 2 RCA, 2-channel USB 6 ¼” TRS/XLR combo, 6 XLR, 2 RCA, 2-channel USB 10 ¼” TRS/XLR combo, 10 XLR, 2 RCA, 2-channel USB

Hi-Z/Instrument Channels
2 2 2

Main Outputs
XLR and ¼” XLR and ¼” XLR and ¼”

Aux / Monitor Sends
4 balanced XLR 6 balanced XLR 8 balanced XLR

HDMI Output
No
✓

✓

Dimensions (W x H x D)
7″ x 3.3″ x 12.6″ (177mm x 85mm x 320mm) 7″ x 4.3″ x 19″ (559mm x 610mm x 254mm) 22″ x 24″ x 10″ (559mm x 610mm x 254mm)

Weight
5 lbs (2.29kg) 7.9 lbs (3kg) 31 lbs (14kg)

From the brand

• The Soundcraft Ui16 digital, rack-mountable mixer can be remotely controlled via tablet, phone, laptop, or PC using iOS, Android, Windows, Mac OS, and Linux, offering unmatched flexibility and convenience for any audio setup. Use up to 10 control devices (tablets, phones, PCs) simultaneously.

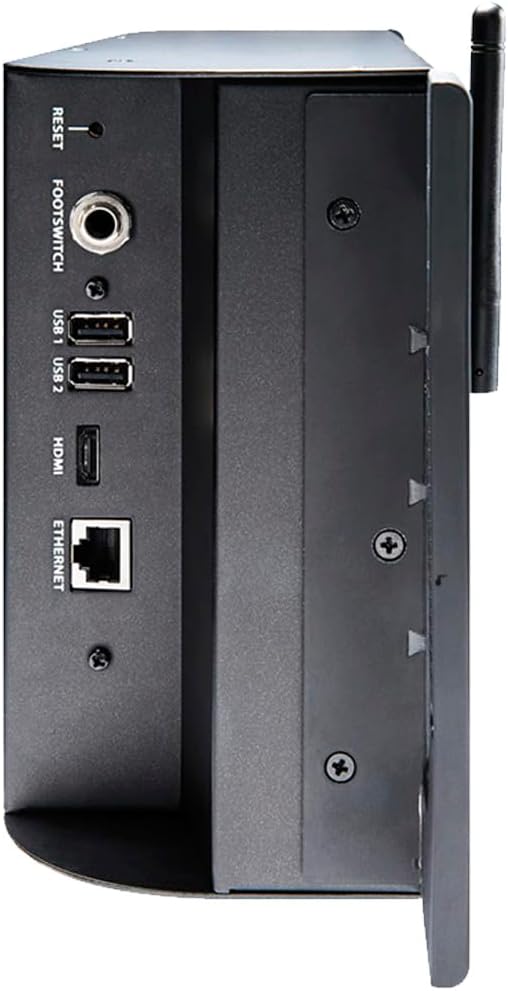

• Versatile Connectivity – Ui16 offers independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, ensuring seamless integration with your setup.
• Enhanced Performance – Experience top-notch audio quality with built-in signal processing from dbx, DigiTech, and Lexicon, including dbx AFS2 and DigiTech Amp Modeling, ensuring your sound is always pristine and professional. Three dedicated Lexicon FX busses: Reverb, Delay and Chorus. In addition, mixer controls include Subgroups, Mute groups and View groups, among others. 31-band graphic EQ, noise gate and compressor on all outputs. Real-time frequency analyzer on inputs and outputs.
• Versatile Connectivity – Ui16 boasts eight XLR combo mic/line inputs, four XLR mic inputs, two channels of instrument inputs, as well as a stereo RCA line input, ensuring you have all the connections you need for any audio setup.
• But wait, there’s more – The Ui16 mixer includes a 2-channel USB media player, four balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, and balanced stereo XLR and quarter-inch main outputs, ensuring seamless integration with various audio setups. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats, and 2-channel USB Record direct-to-memory devices functionality is possible as well.
