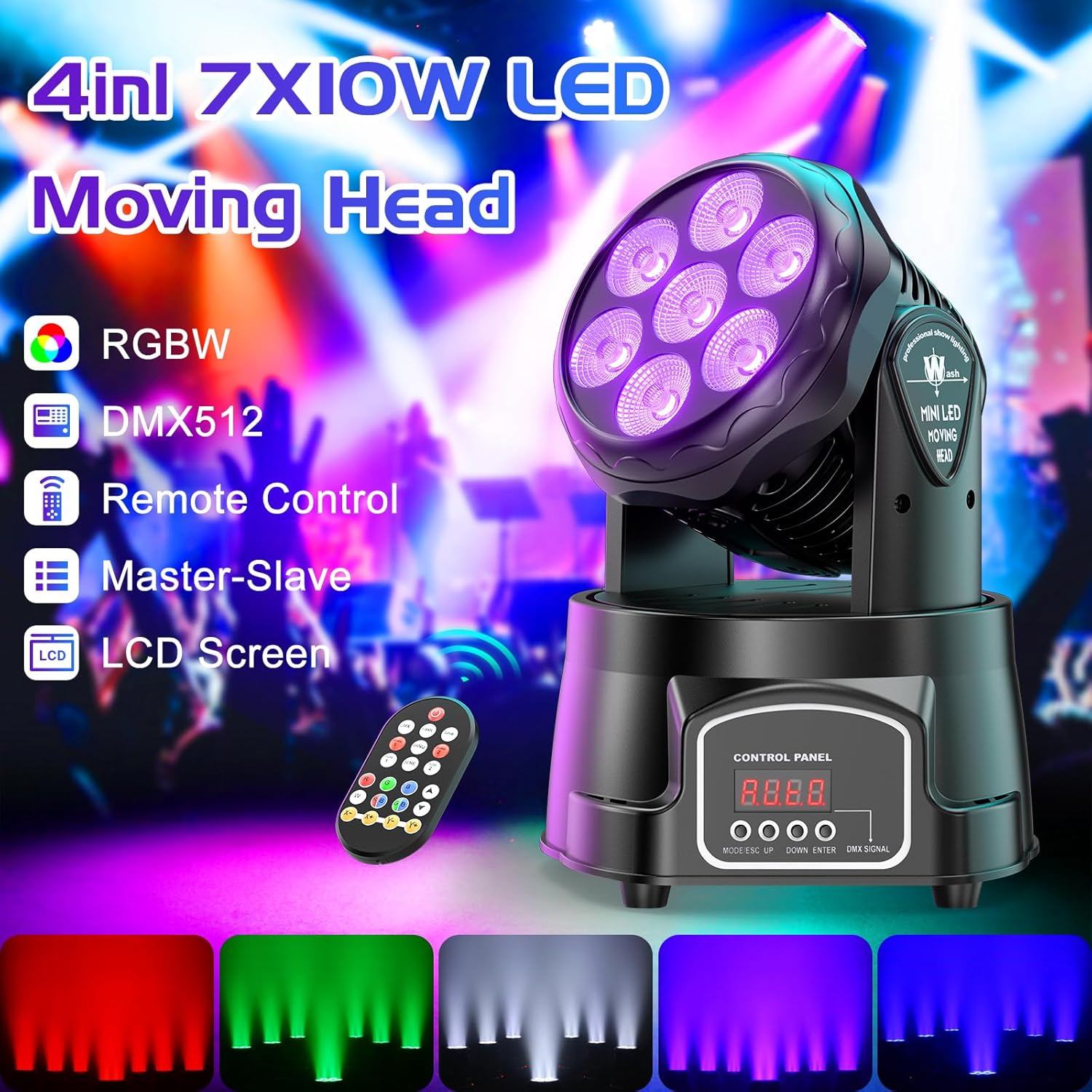

BEAM SPOT MOVING HEAD LIGHT

This dj lights moving head offer the creative flexibility of generating vibrant washes and eye-catching pixel effects from one compact and quick automated luminaire. Powered by an array of seven potent 10-Watt 4-in-1 RGBW color mixing LEDs.

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. moving head light Merchant Video

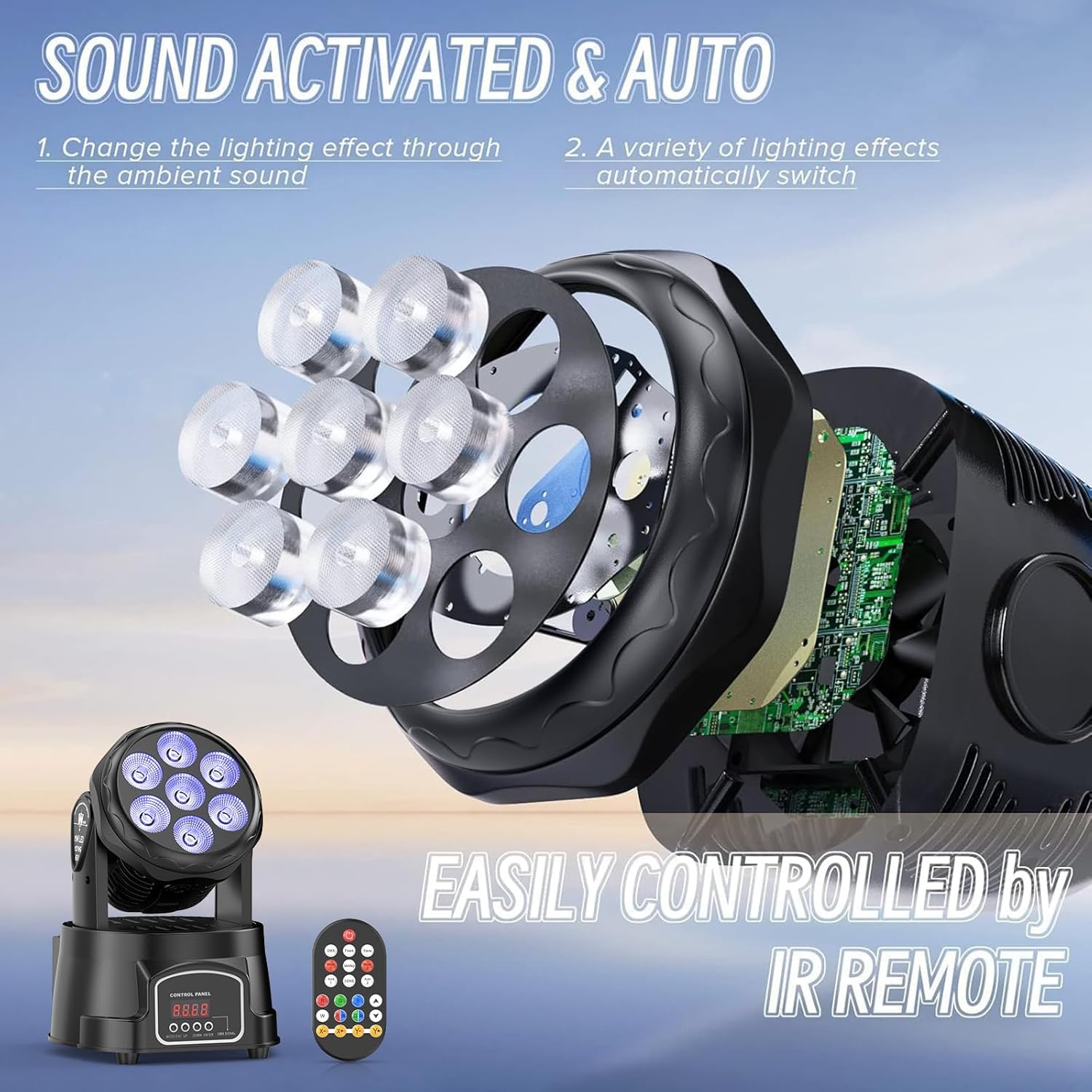

The Moving head lights offer RGBW color mixing and a choice of five different control modes: DMX512, Master-slave, Sound Activated, Strobe and Automatic. These are accessed through a LCD display panel with 4-button menu interface located on the side panel of the fixture.

Specification

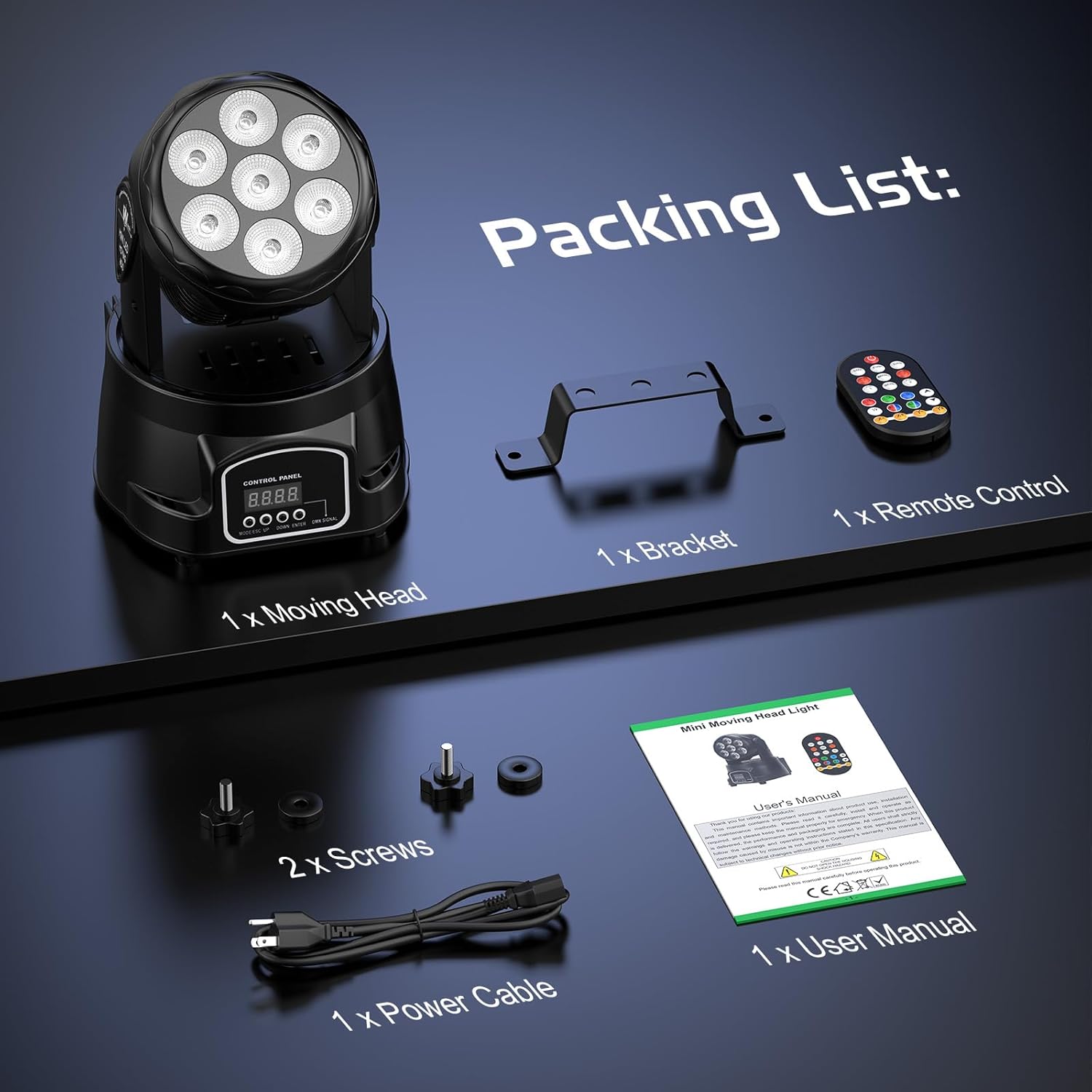

Product type LED Moving Lights Material PVC Colour spectrum RGBW Number of LEDs 7 Light source 10W Cool White LED Engine (100,000 hr.) DMX mode 9-channel , 14-channel Control mode DMX512, remote, master/slave, stand-alone strobe, automatic, sound activated LCD display 4-button function menu Movement Pan/Tilt: X-540° Y-180° DMX Connections 3-pin XLR In/Out Multi-voltage operation AC100V-240V, 50/60HZ Dimensions 7.1 x 6.9 x 9.1 inches Weight 4.74 Pounds Accessories (included) 1 x Stage Light, 2 x Screw, 1 x Mounting Bracket, 1 x Remote Controller, 1 x Power Cord, 1 x User Manual

DMX Channel Function (9 Channel)

Channel 1 Pan motion Channel 2 Tilt motion Channel 3 Lighting off (valie 0-7) Channel 3 Dimmer (value 8-134) Channel 3 Strobe speed from slow to fast (value 135-239) Channel 3 Lighting open (valie 240-255) Channel 4 Red dimmer Channel 5 Green dimmer Channel 6 Blue dimmer Channel 7 White dimmer Channel 8 Pan & Tilt speed Channel 9 Reset (value 150-200)

DMX Channel Function (14 Channel)

Channel 1 Pan motion Channel 2 Pan fine Channel 3 Tilt motion Channel 4 Tilt fine Channel 5 Pan & Tilt speed Channel 6 Lighting off (valie 0-7) Channel 6 Dimmer (value 8-134) / Strobe speed from slow to fast (value 135-239) / Lighting open (valie 240-255) Channel 7 Red dimmer Channel 8 Green dimmer Channel 9 Blue dimmer Channel 10 White dimmer Channel 11 Mix color depend on Channel 7-10 (value 0-7) / Macro color (value 8-231) / Color jumping (value 232-255) Channel 12 Color jumping speed Channel 13 Control freely depend on Channel 1-12 (value 0-7) / Fast running (value 8-63) / Slow running (value 64-127) / Sound mode 1 (value 128-191) / Sound mode 2 (value 192-255) Channel 14 Reset (value 150-200)

Compare U`King Moving Head Lights

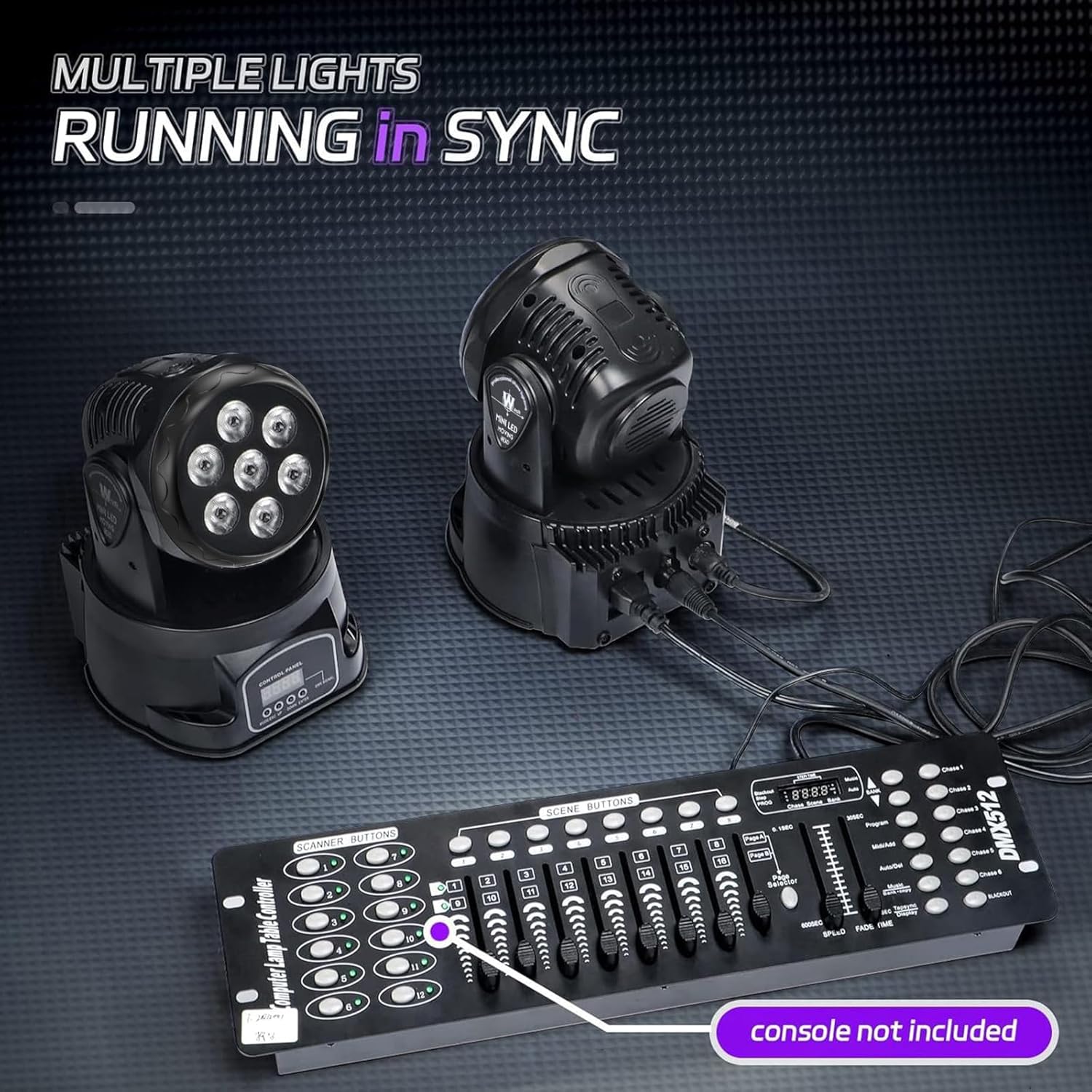

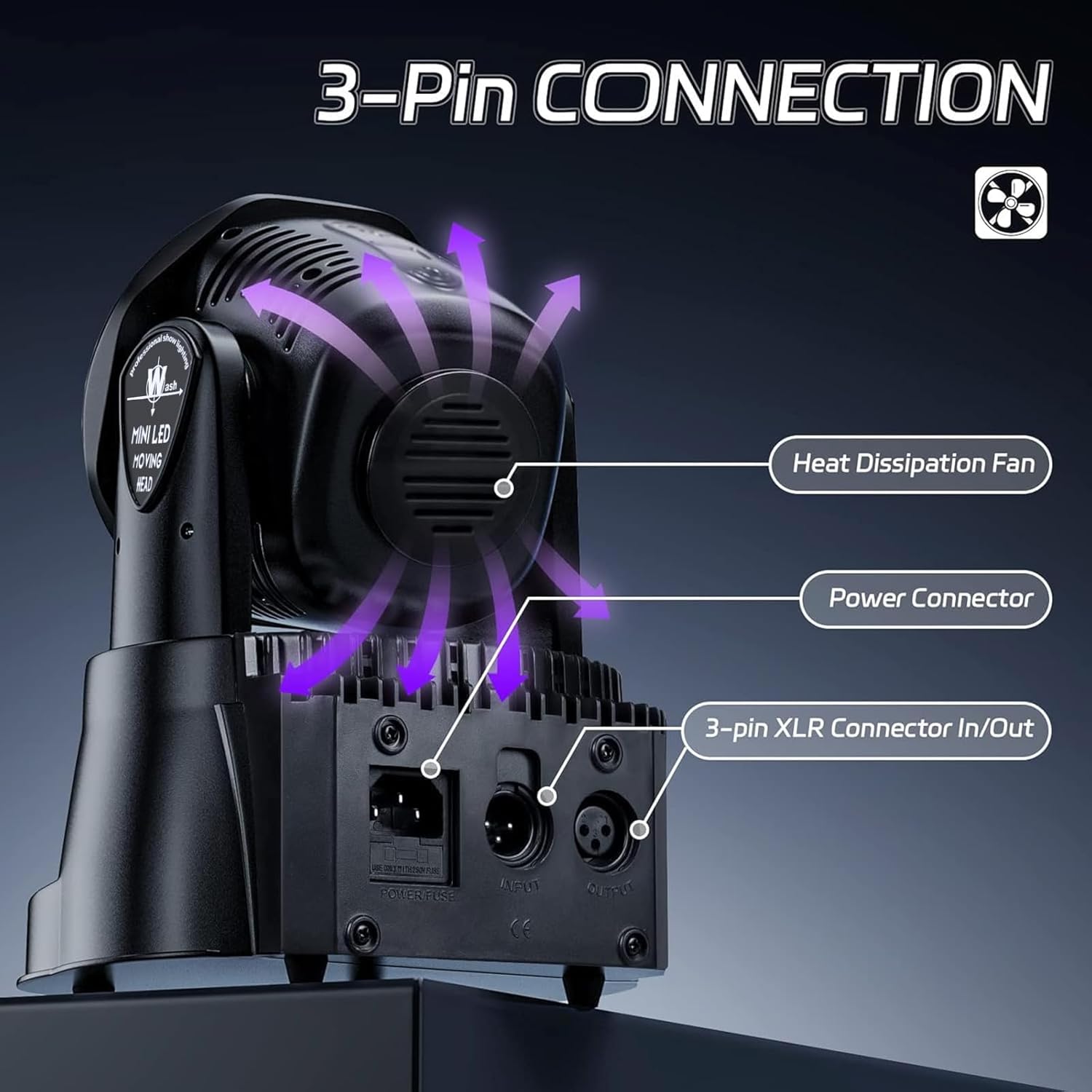

• 【CONTROL MODE】this moving head dj lights offer a variety of control modes, including DMX, maser-slave, auto and sound active. Connections include power in and out, and 3-pin DMX data in and out. Its compact size, light weight, power and features make the beam light ideal for venue installations, events and for mobile productions.
• 【RGBW 4-in-1 LED】ZQ-B136B-US is a 70W professional moving head wash, featuring seven 10W 4-IN-1 (RGBW) LEDs that allows the versatility to use this fixture as a wide wash or tight beam.

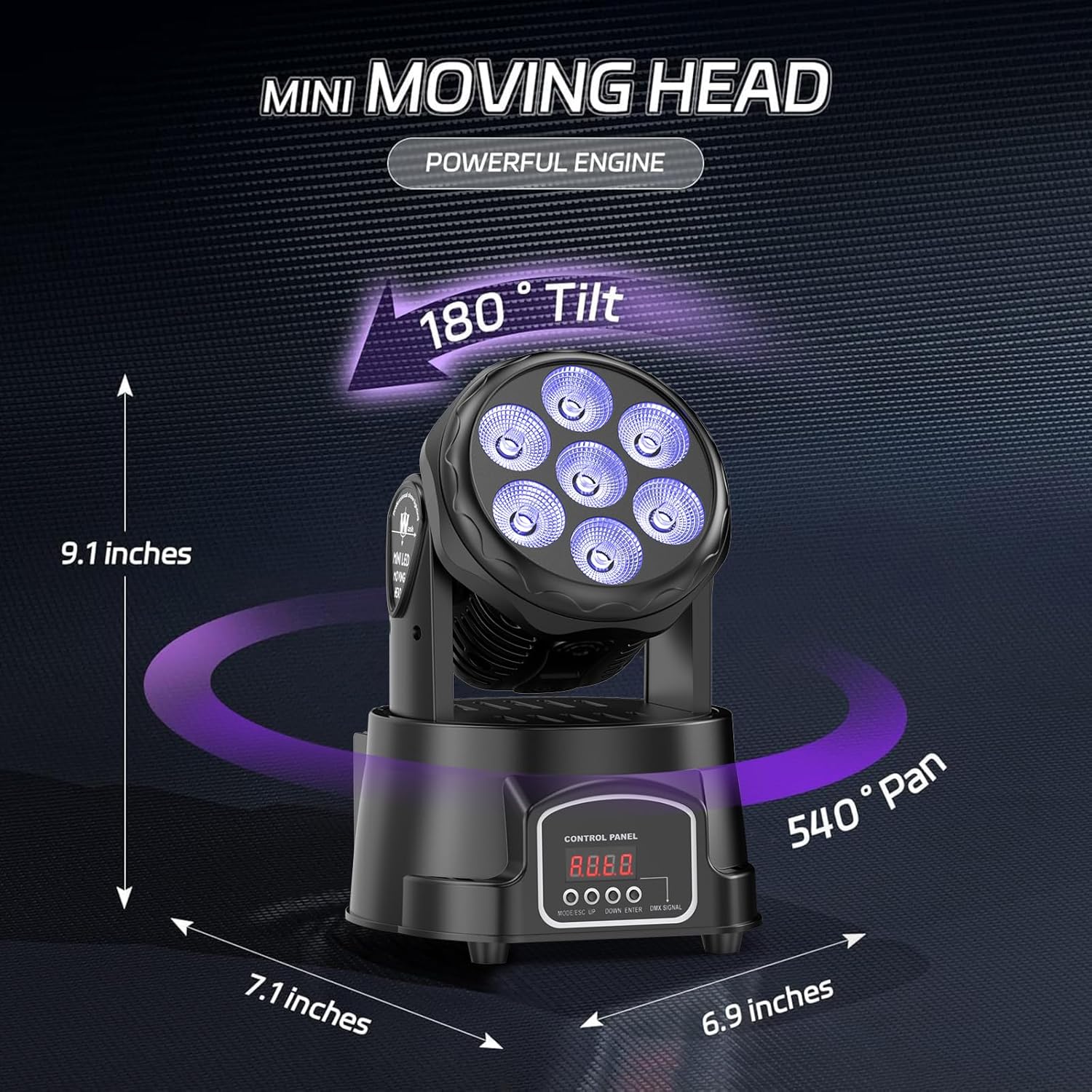

• 【PAN & TILT MOVEMENT】the moving head stage light has fast, precise pan (540°) and tilt (180°) movements, along with fine pan/tilt, allowing for precision performance, X / Y can automatically correct errors.
• 【4-DIGIT DISPLAY】The movng head light has variable strobe speeds and a 4-digit display that makes navigation of the fixture’s menu system for setup and DMX addressing very easy.
• 【EASY INSTALLATION】DMX moving head equipped with a mounting bracket, it can be installed on the truss or wall. Simple and convenient, the installation can be completed in one minute.
• 【WIDELY USE】 Mini moving head lights designed compact and portable, which is great for parties, club, dj events, band performance, church, family gathering.
