Description

Product description

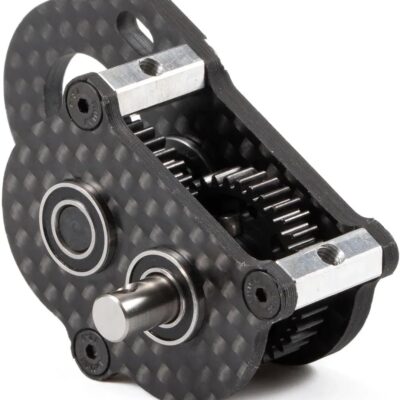

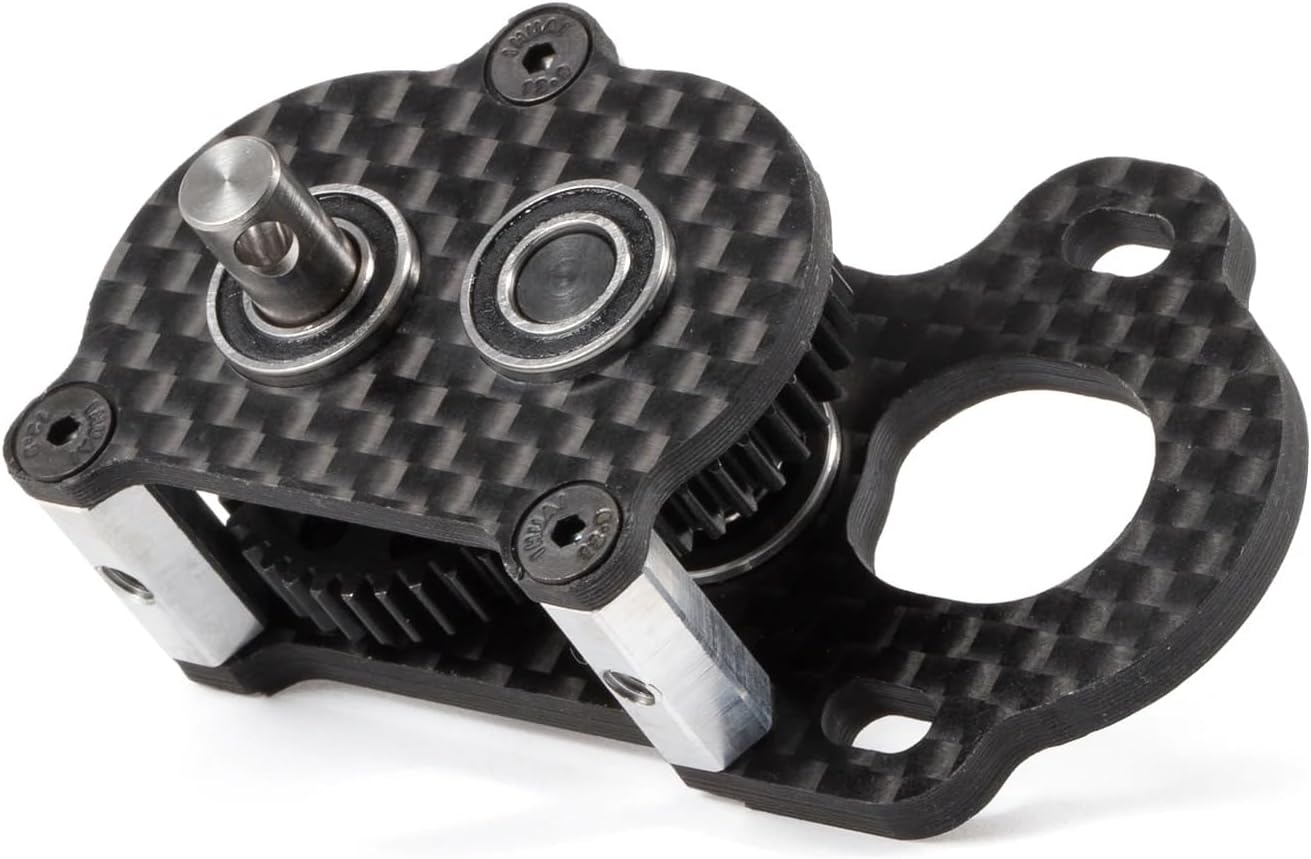

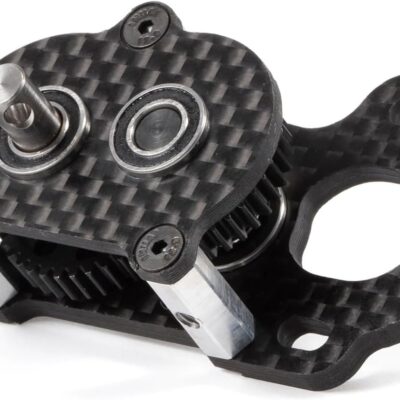

Ultra-Light transmission for portal axles.

Forward facing motor with right side motor placement.

Fits 48 Pitch pinions from 11T to 18T (Not Included).

(Please remember to add lubricating grease to the gears before use, and ensure that all screws are tightened)

Ultra-Light Transmission

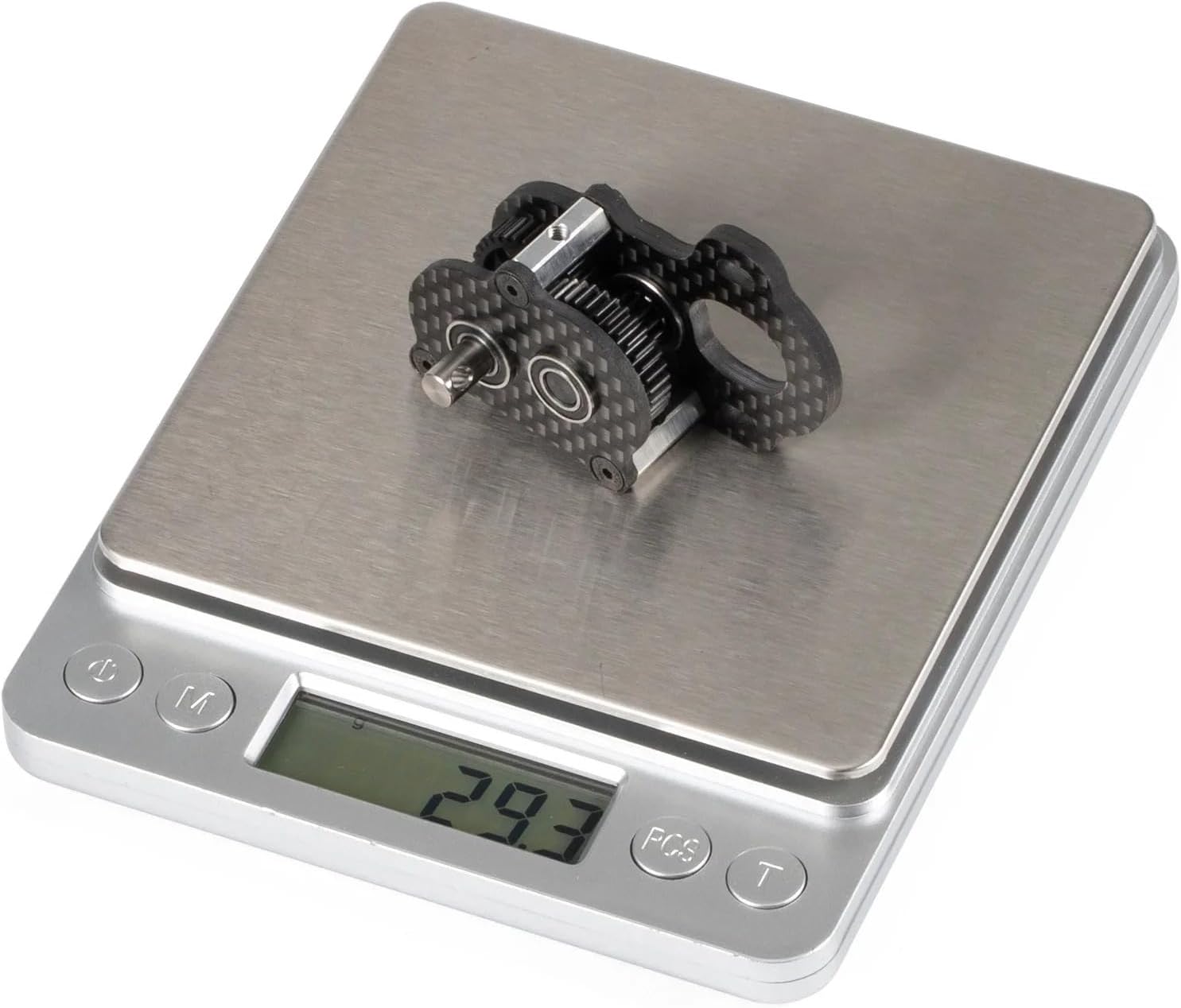

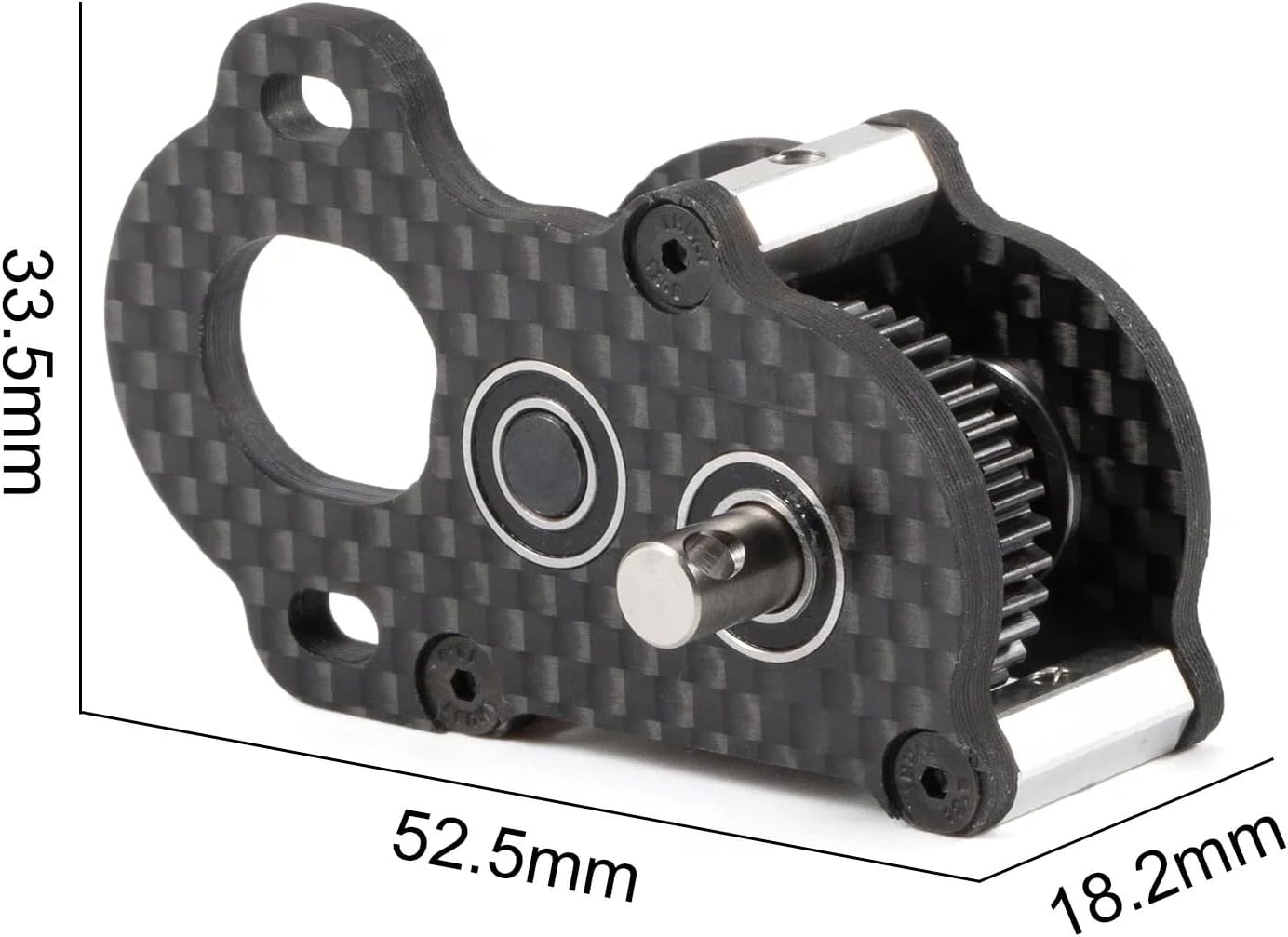

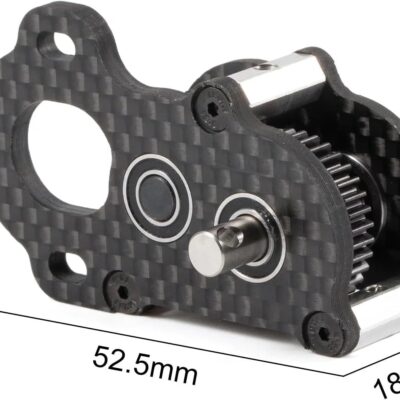

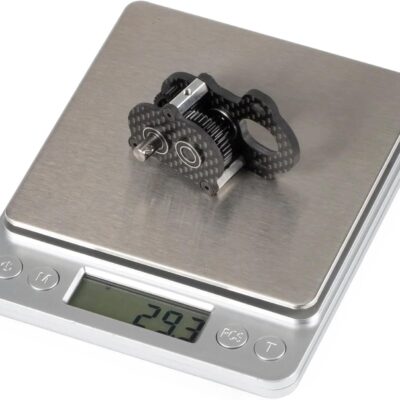

Weight: 29.3g (1.03oz).Dimensions: 52.5mm W x 33.5mm H x 18.2mm L (not counting output shaft).Ultra-Small, Ultra-Light, and can be modified for even more weight savings.Motor bolt holes 25mm on center. Skid plate mounting holes 27.5mm on center (M3 threaded holes).

Excellent Workmanship

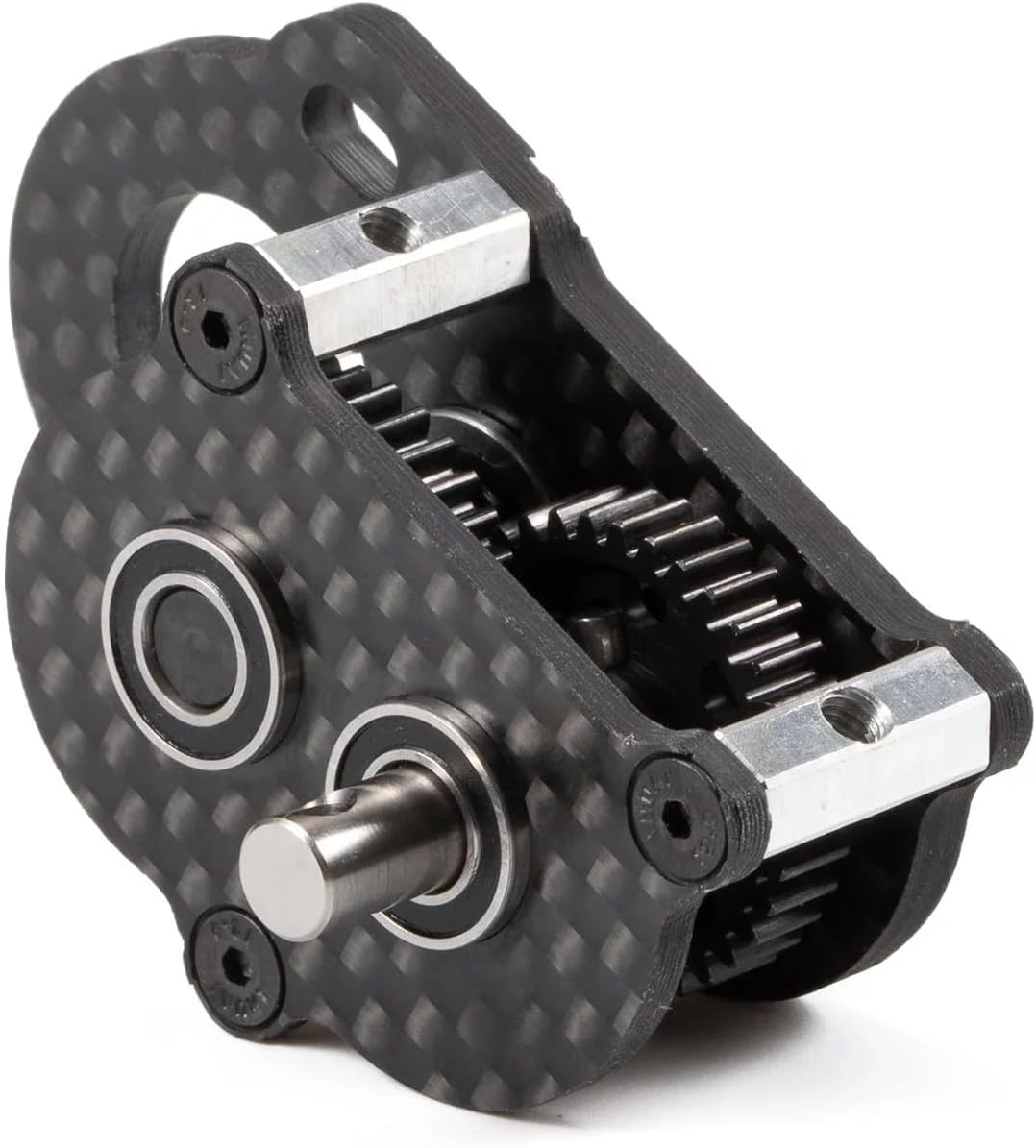

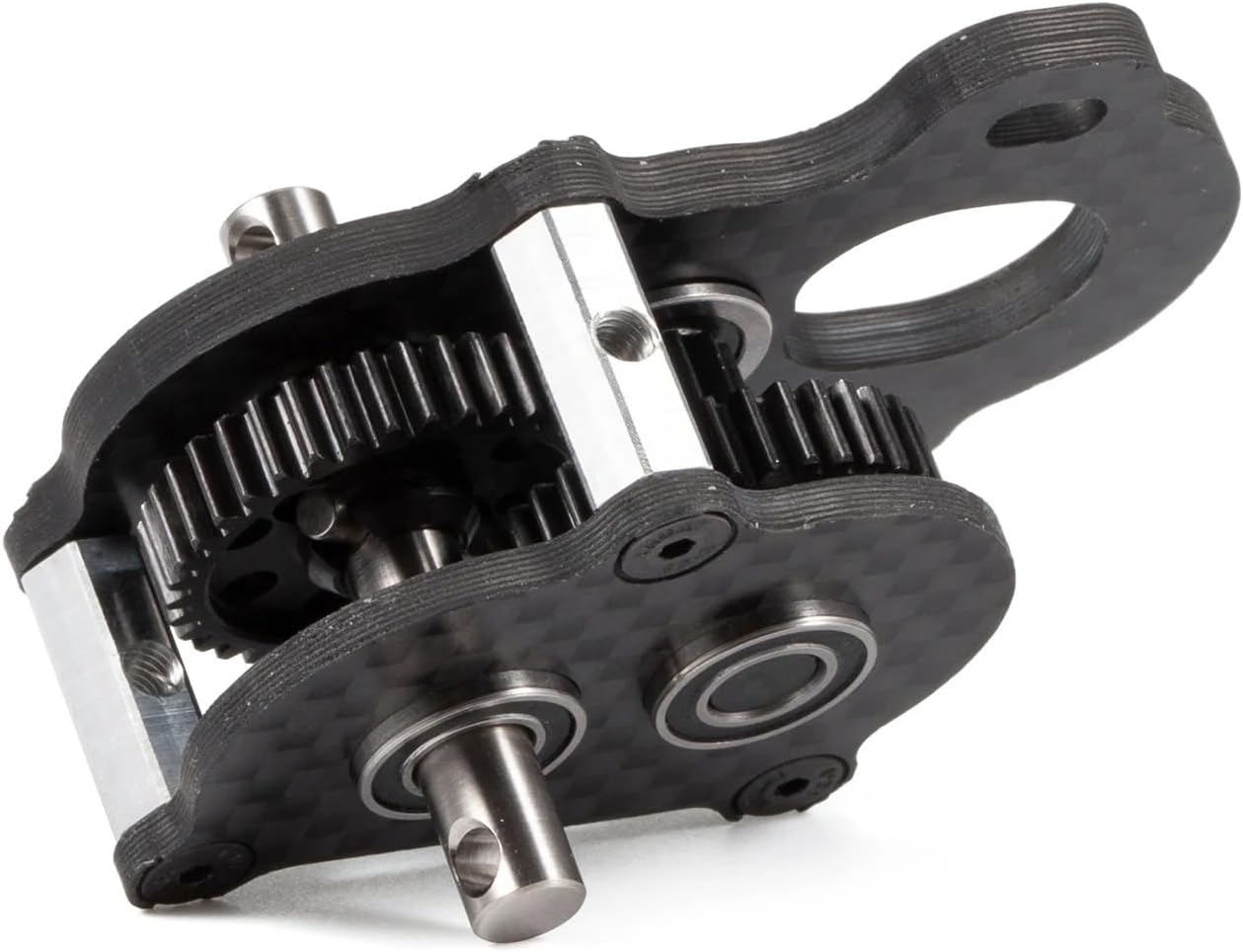

Carbon fiber motor plate and non-motor plate, aluminum standoffs, Titanium output shaft, hardened chromoly gears, low noise and smooth.Comes with an aluminum slidable adapter plate, with 3-gear type transmission mounting holes.

For Portal Axles

Gear Ratio: 3:1 x pinion/spur combo. 36T spur gear (48 pitch).Works with portal axles.Not compatible with brushed motors! Recommend using it together with outrunner motor and AM32 crawler ESC, such as SEQURE 3625 Brushless Motor and SEQURE ESCape32 Brushless ESC.

Gear Ratio:

11T pinion: 9.8 12T pinion: 9.0 13T pinion: 8.3 14T pinion: 7.7 15T pinion: 7.2 16T pinion: 6.75 17T pinion: 6.35 18T pinion: 6.0

One Stop Shopping

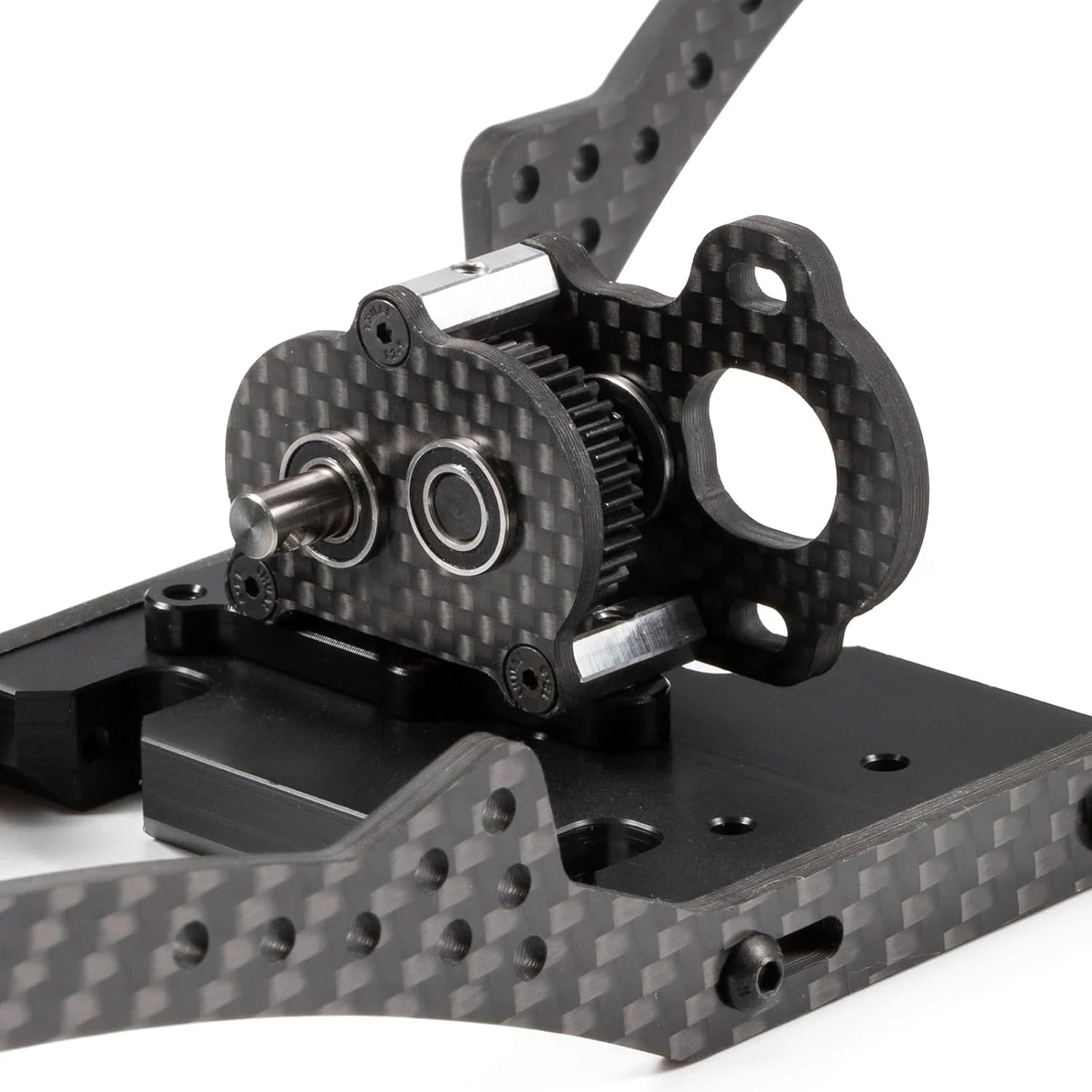

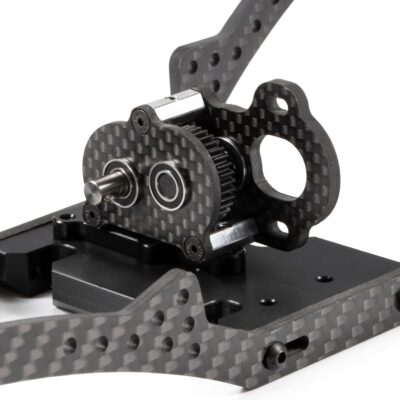

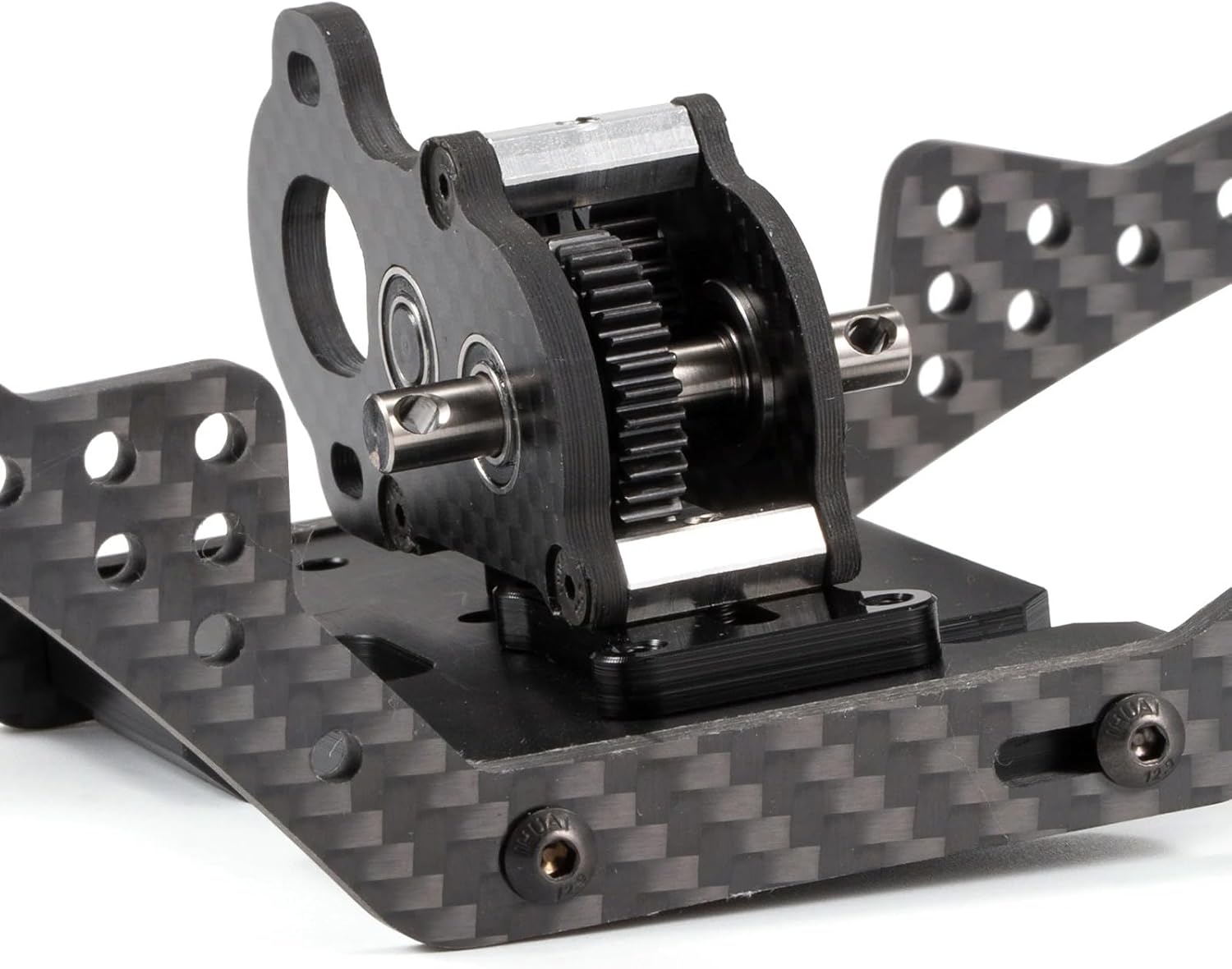

Carbon fiber chassis rails, lcg compact transmission, skid plate, crawler axles, bumper, and other required parts can also be found in our store.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Price

$37.99$37.99 $32.99$32.99 $42.99$42.99 $42.99$42.99 $39.99$39.99 $42.99$42.99

For Portal Axle
no data

✓

✓

✓

✓
no data

For Straight Axle

✓
no data

✓

✓

✓

✓

Overdrive
no data
no data

✓

✓

✓
no data

Dig
no data
no data

✓
no data
no data
no data

Tiny Transmission

✓

✓
no data
no data
no data

✓

• Ultra Light: 29.3g(1.03oz), with laser cut carbon fiber case, titanium output shaft
• Ultra Smooth: Hardened chromoly gears, low noise and smooth
• Compatibility: Works with portal axles(Capra F9, AR45P, CP44, Dlux Portal Axes, Enduro Comp Fox Portal Axes, etc.), fits pinions from 11T to 18T (48 pitch)
• Gear Ratio: 3:1 low gear ratio, 36T spur gear (48 pitch)
• What You Get: 1 x Portal Transmission, 1 x Slidable Adapter Plate, 1 x Hardware Set
