Description

From the brand

Product description

Controls

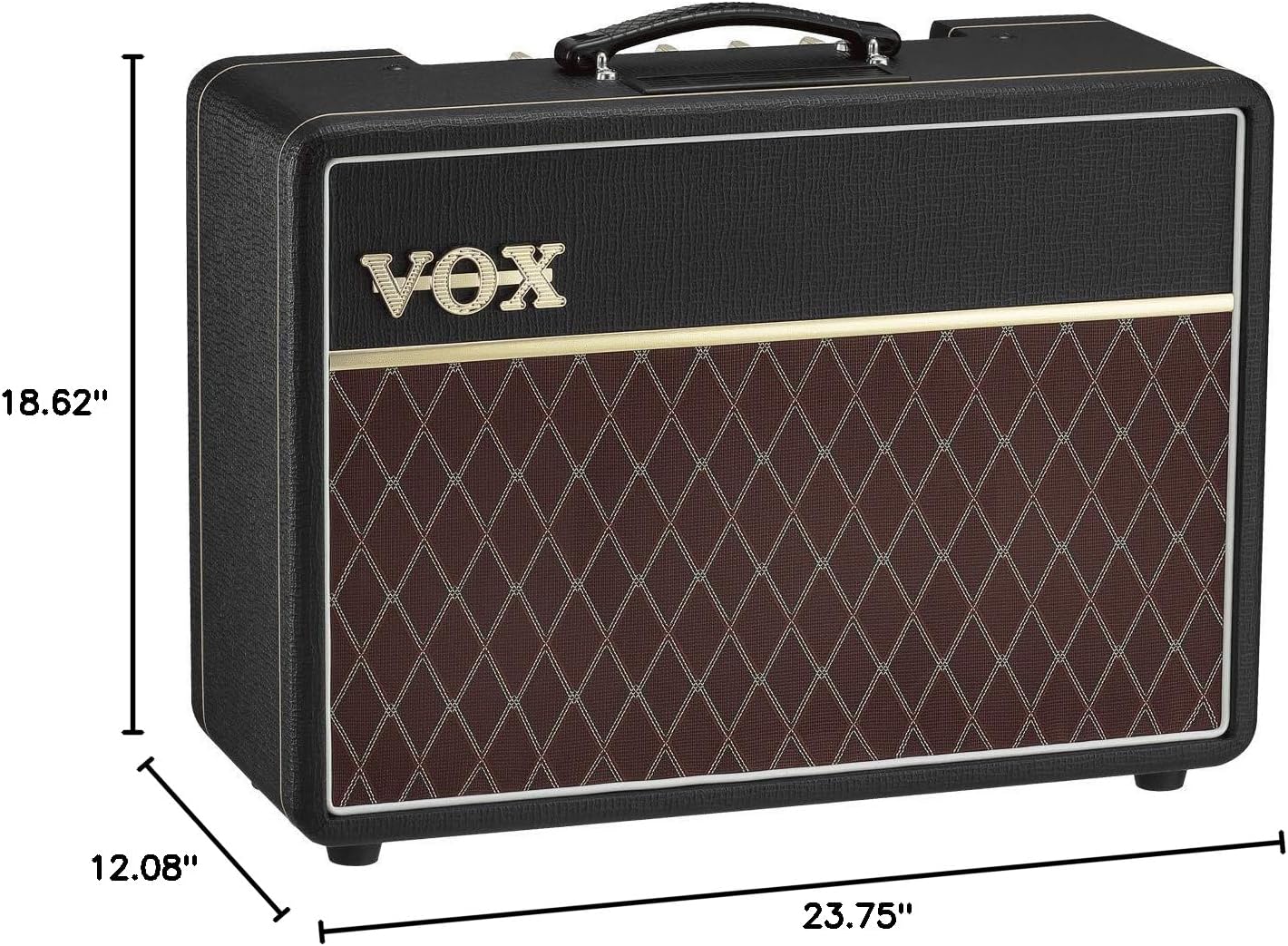

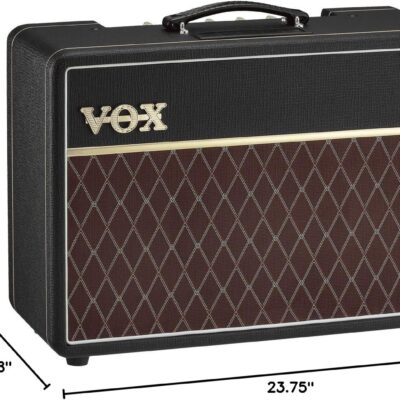

The Vox AC10C1 is a compact, all-tube amplifier that delivers classic British tones in a portable package. With 10 watts of power and a Celestion V-type speaker, this amp provides a rich, articulate sound that’s perfect for practice and small gigs. The Top Boost circuitry allows you to achieve chimey cleans to crunchy overdrives, making it versatile for various playing styles. The built-in digital reverb adds depth to your sound, capturing the essence of a traditional spring reverb tank.

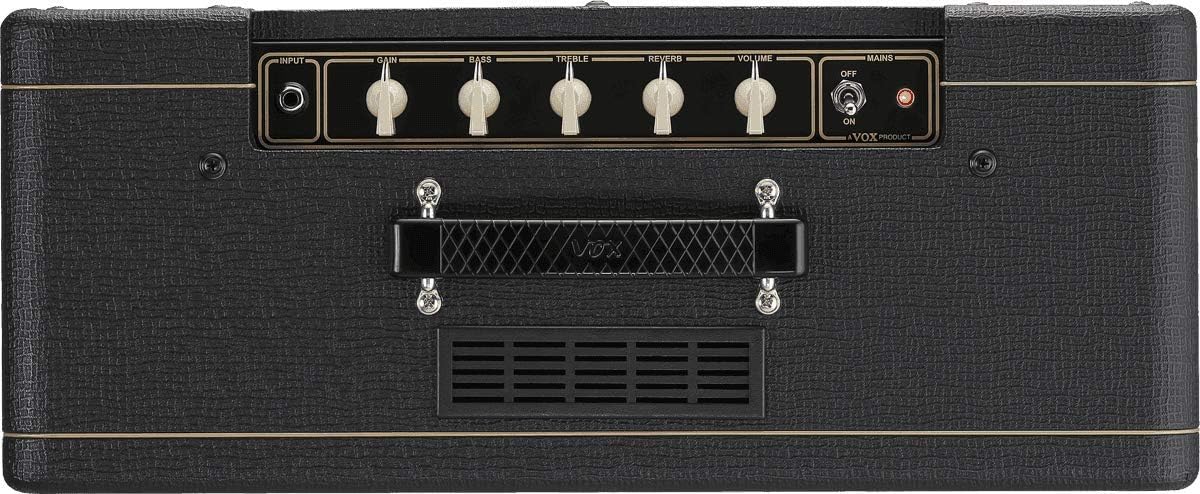

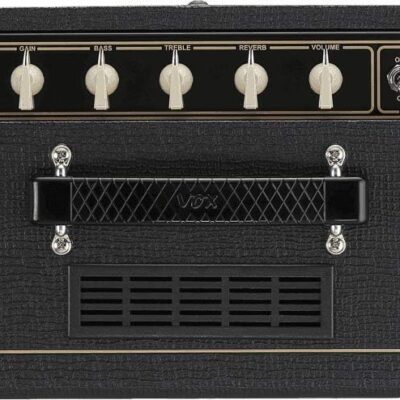

Top Panel Controls

Volume: Controls the overall output level.Gain: Adjusts the amount of distortion.Bass: Shapes the low-frequency tones.Treble: Shapes the high-frequency tones.Reverb: Adjusts the level of the built-in reverb.Input Jack: 1/4″ instrument input.On/Off (Mains) Switch: Powers the amplifier on and off.

Technical Specifications

Type Tube Number of Channels 1 Total Power 10W RMS Speaker Size 1 x 10″ Preamp Tubes 2 x 12AX7 Power Tubes 2 x EL84 Reverb Yes EQ 2 Band Inputs 1 x 1/4″ Outputs 1 x 1/4″ Bias Type Cathode Biased Power Source Standard IEC AC cable Dimensions 16.14″ x 20.47″ x 8.27″ Weight 27.12 lbs MPN AC10C1

• 10-watt tube amplifier with classic VOX Top Boost tone circuit for rich, articulate sound
• Equipped with EL84 power tubes and 12AX7 preamp tubes for authentic tube tone
• Custom 10″ Celestion VX10 speaker for powerful, clear sound projection
• Simple yet effective controls: Gain, Bass, Treble, Reverb, and Master Volume
• Extension and External speaker outputs for added versatility
• By-passable effect loop for integrating external effects pedals
• Distinctive VOX styling with a compact, portable design for easy transport
